Tektronix TDS2024 User Manual

Reference
TDS1000/2000-Series Digital Oscilloscope User Manual
85
NOTE. The oscilloscope must display a waveform for the cursors and
cursor readouts to appear.
Key Points
Cursor Movement. Use the CURSOR 1 and CURSOR 2 knobs to move
cursors 1 and 2. You can move the cursors only while the Cursor
Menu is displayed.

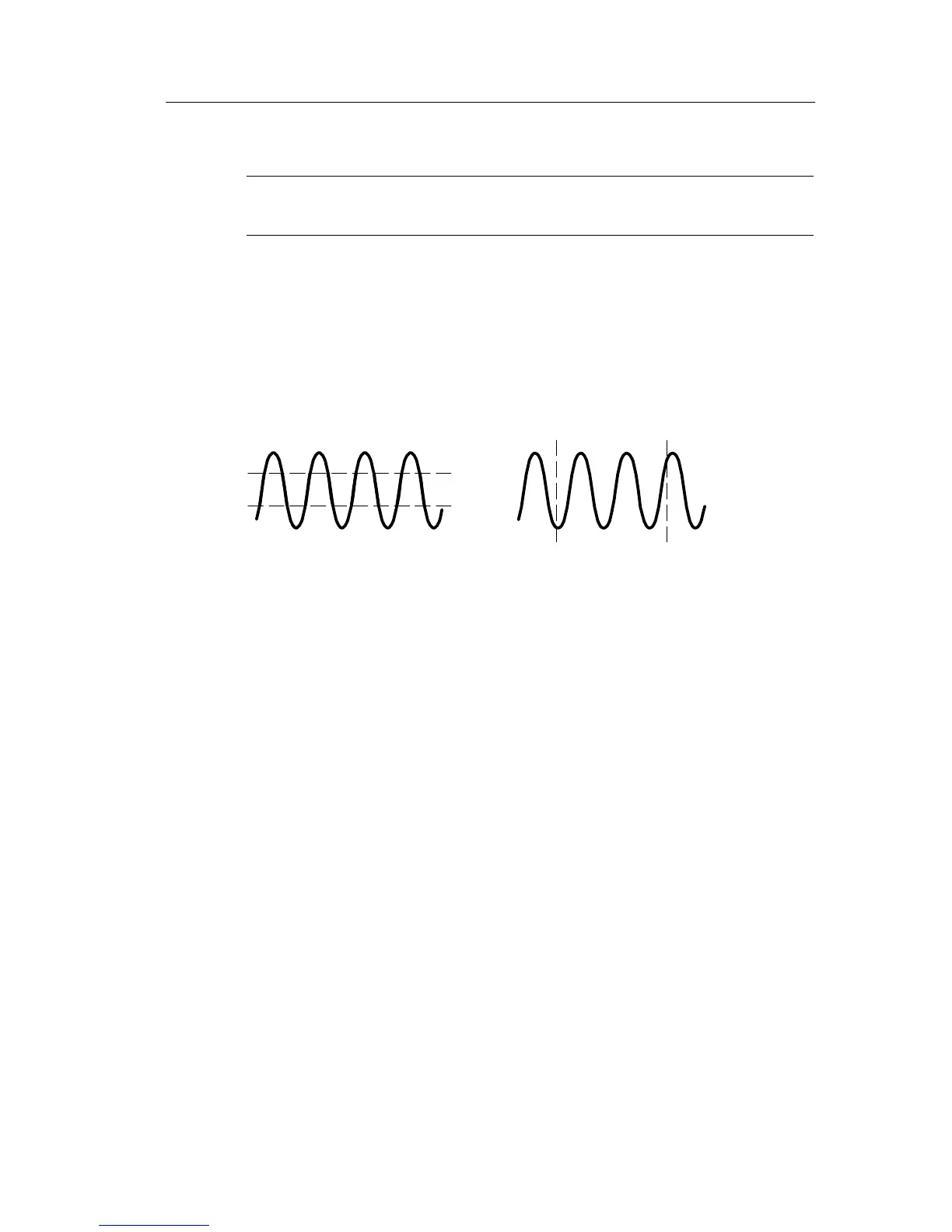

Voltage cursors
Time cursors
U in Level and Delta Readouts. Vertical sensitivity should match on
waveforms used for math operations. If they do not match, and you
use cursors to measure the waveform result of a math operation, a U
displays that represents unknown.
Default Setup
Push the DEFAULT SETUP button to recall most of the factory
option and control settings, but not a ll. For more information, refer to
Appendix D: Default Setup on page 175.

Tektronix TDS2024 Specifications

General

Channels	4
Bandwidth	200 MHz
Sample Rate	2 GS/s
Record Length	2.5k points
Vertical Resolution	8 bits
Vertical Sensitivity	2 mV/div to 5 V/div
Timebase Range	5 ns/div to 50 s/div
Display Resolution	320 x 240 pixels
Math Functions	Add, Subtract, Multiply, Divide, FFT
Input Coupling	AC, DC, GND
Trigger Modes	Auto, Normal, Single
Trigger Types	Edge, Video, Pulse
Connectivity	USB
Input Impedance	1 MΩ
Maximum Input Voltage	300 V
Interface	USB
Power Supply	100 to 240 V
Dimensions	326 mm x 158 mm x 124 mm
