Getting Started
TDS3000B Serie s User Manual
1-11
Operating Positions

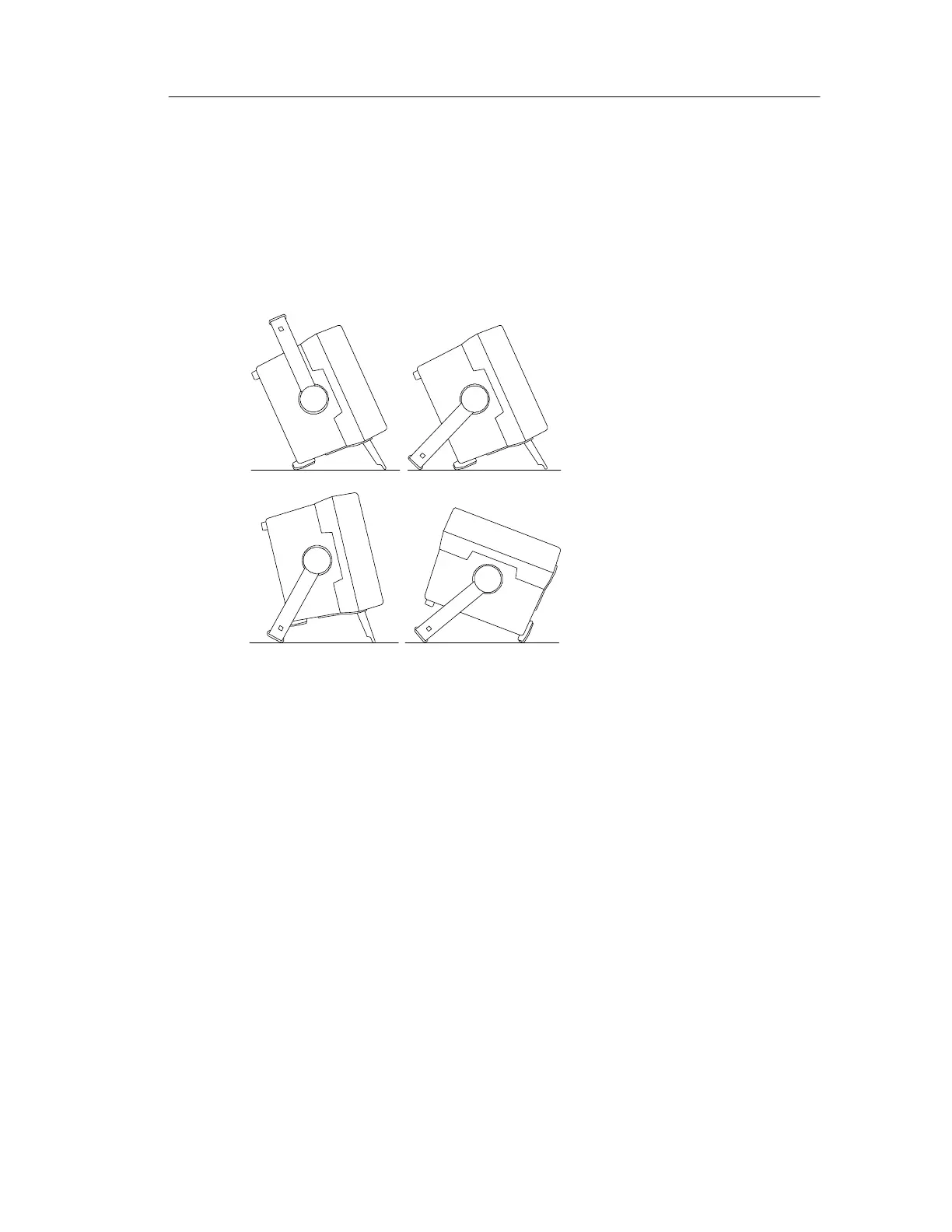

Use the handle and feet to place the oscilloscope in a c onvenient
operating position.
Connecting Power
To conne ct a power cord, do these steps:
1. Open the strain relief and slip it over the power cord.
2. Snap the strain relief into its hole in the rear panel of the
oscilloscope.
3. Connect the power cord to the power input connector.
You can operate the oscilloscope from a grounded mains supply with
line voltage between 90 V
AC
and 250 V
AC
and freque ncy between
47 Hz and 440 Hz. The oscilloscope is grounded through t he power
cord. The line fuse is internal and is not user replaceable.
