Tektronix TDS3054B User Manual

Application Examples
2-16
TDS3000B Serie s User Manual
Triggering on a Video Signal

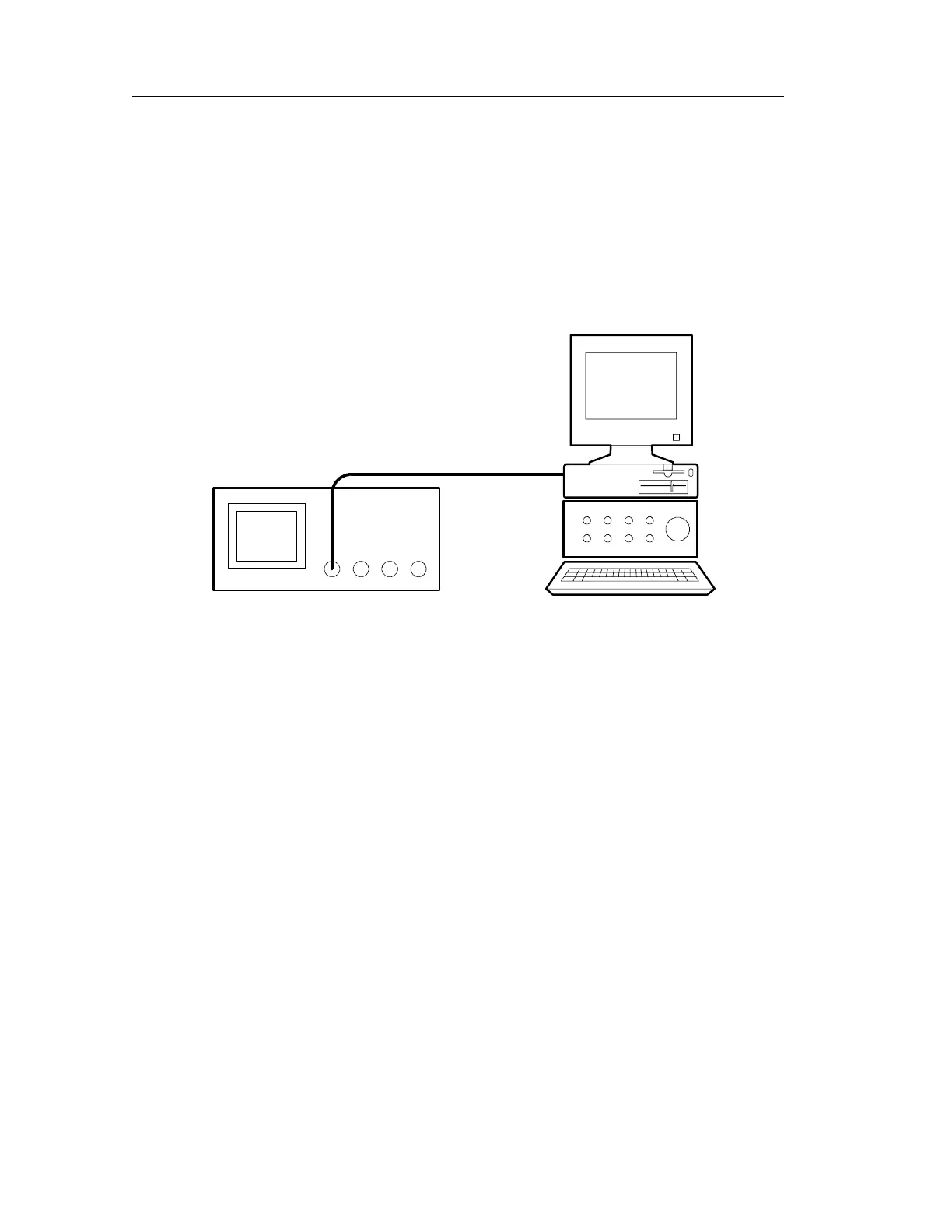

You are te sting the video circui t i n a piece of medical equipment and
need to display the video output signal. The video output is an NTSC
standard signal. Use the video trigger to obtain a stabl e di splay.
Ch 1
To trigger on the video fields, do these steps:
1. Push the t rigger MENU button.
2. Push the Type screen button to select Video.
3. Push the Standard screen button to select 525/NTSC.

Tektronix TDS3054B Specifications

General

Brand	Tektronix
Model	TDS3054B
Category	Test Equipment
Language	English
