Triggering
3- 120
CSA7000 Series, TDS7000 Series, & TDS6000 S eries Instruments User Manual
Overview Control elements and resourcesTo trigger on a sequence (Cont.)
To trigger on
B events

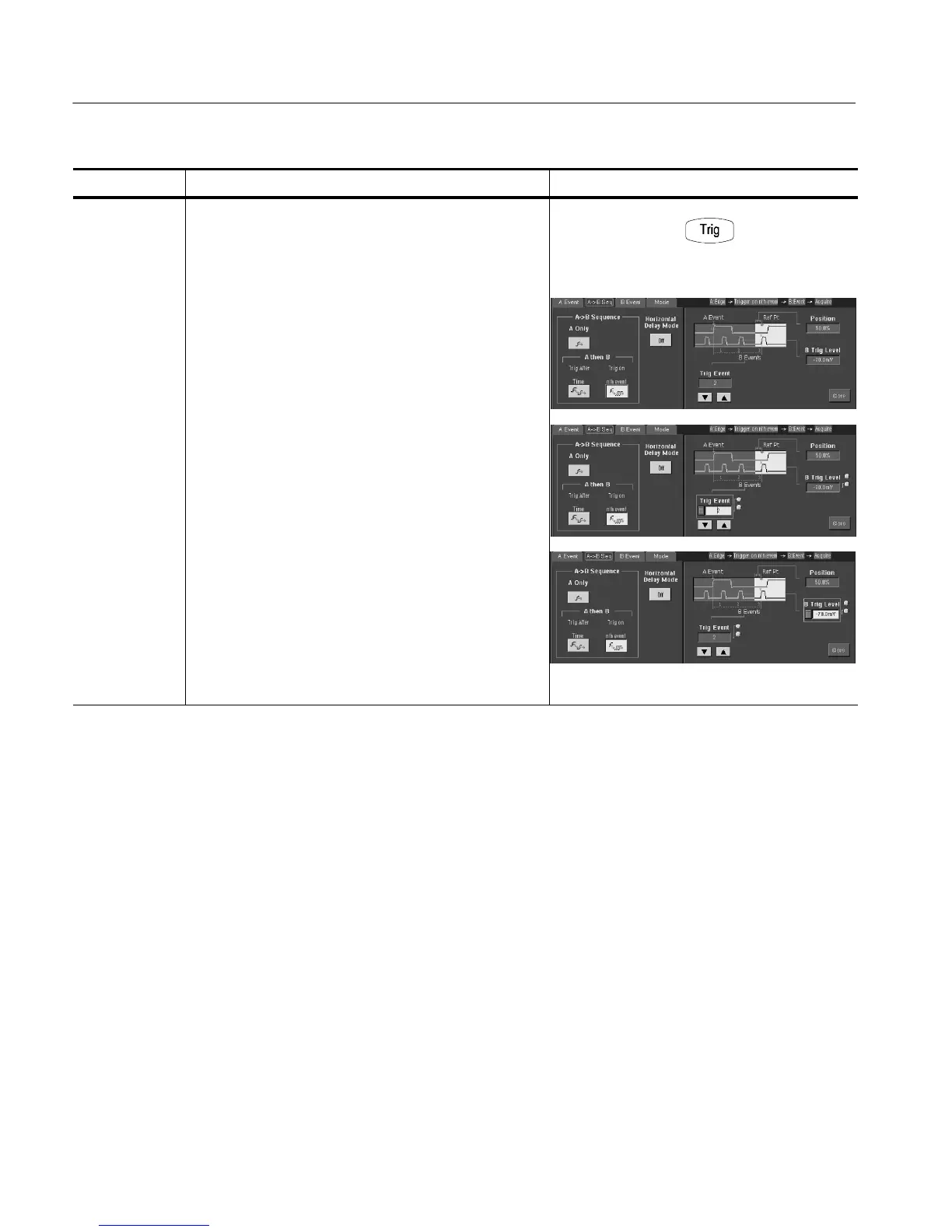

1. To set the time base to trigger after an A trigger and a
specified number of B trigger events, from the toolbar,
touch Trig, and select the A-->B Seq tab of the Trigger
control window.
2. Touch A Then B Trig on nth Event.
3. To set the number of B trigger events, touch Trig Event,
and use the multipurpose knob, keyboard, or up and
down arrows to set the number of events.
4. To set the B trigger level, touch B Trig Level, and use
the multipurpose knob or keypad to set the level.
