Theory of operation
Operating vol
tages
The P7700 Series probes are designed to probe high-frequency, low-voltage
circuits. Before probing a circuit, take into account the limits for the operating
voltages dis
cussed in this section.
Input voltage
Operating voltage window
Input signal dynamic range
Offset voltage

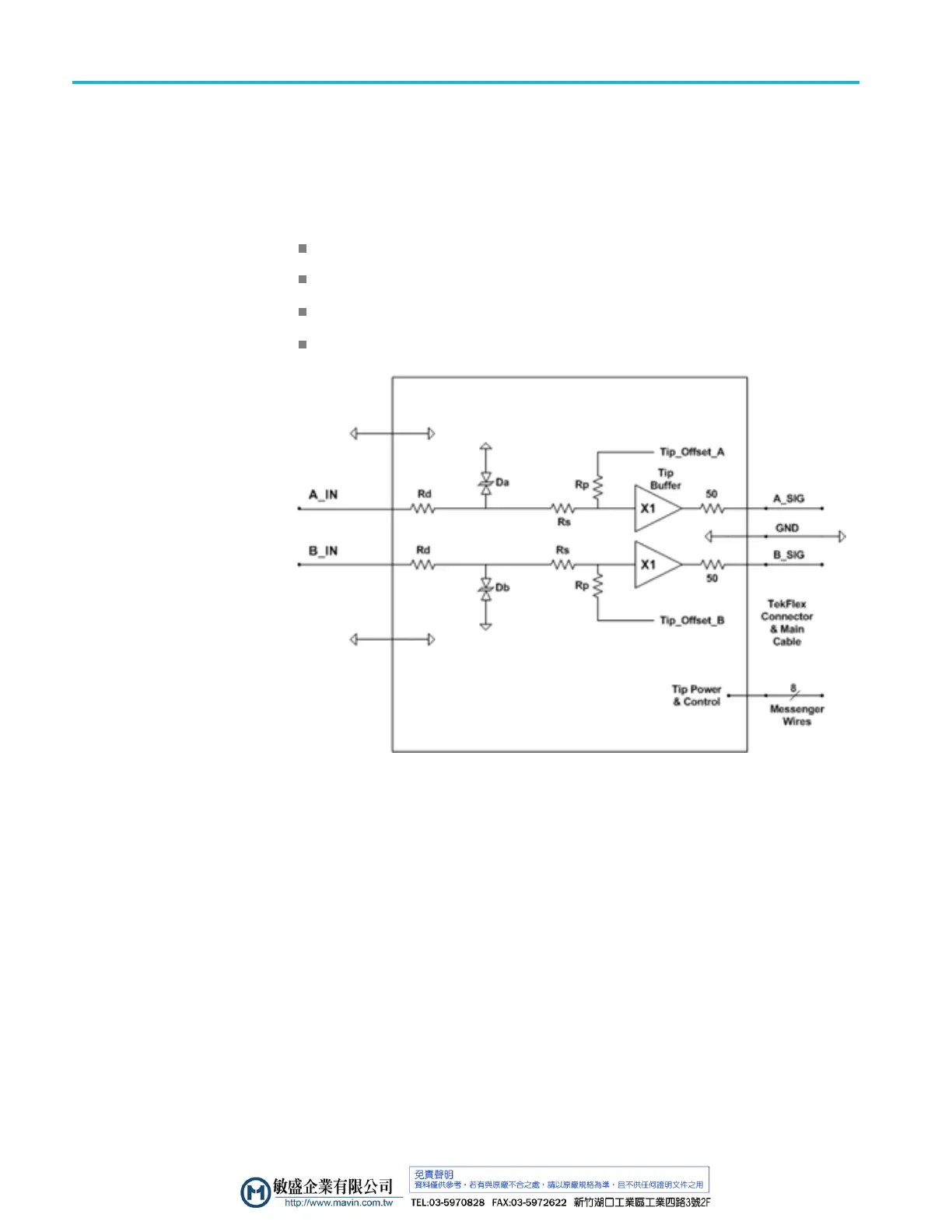

Figure 5: P7700 probe tip inputs
12 P7700 Series TriMode Probes Technical Reference
