Theory of operation

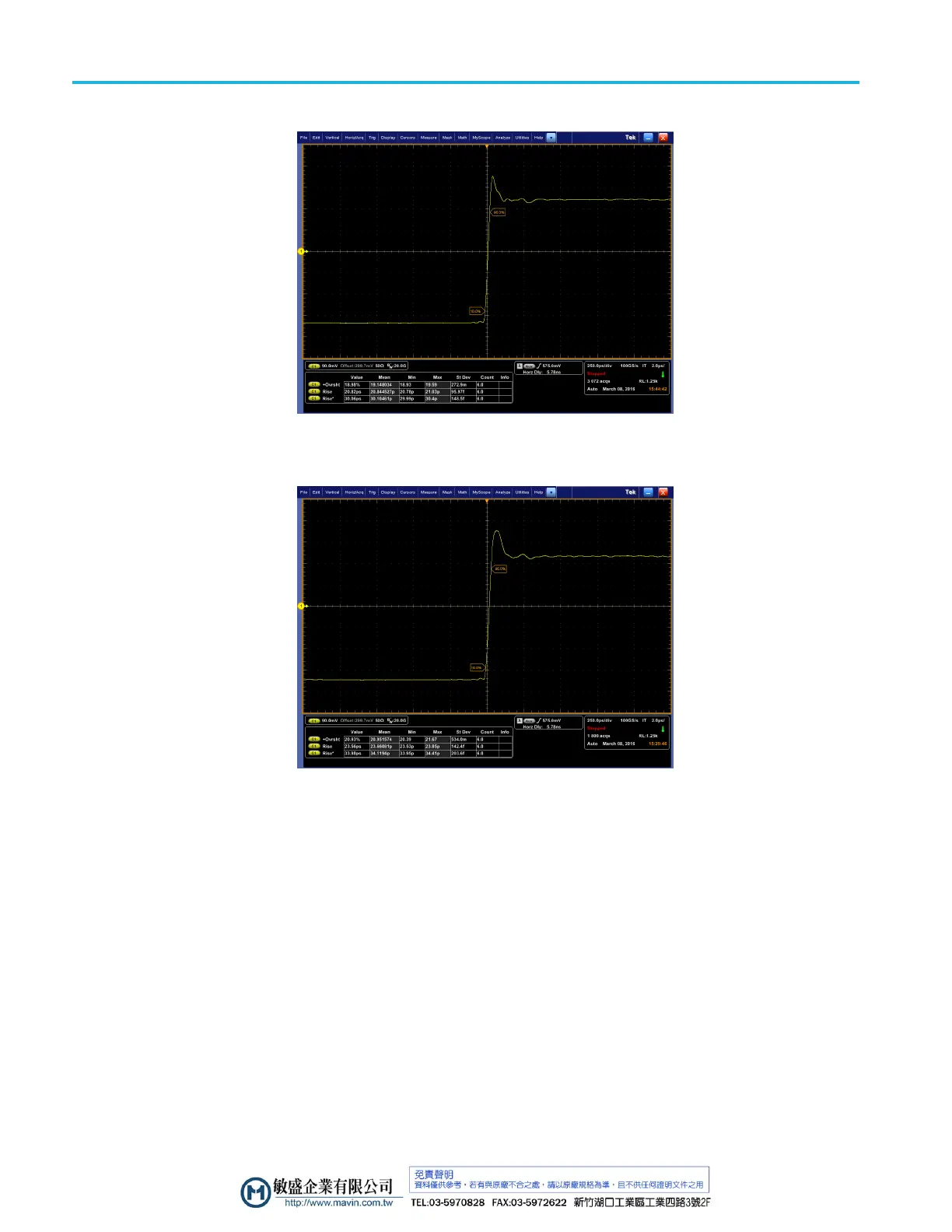

Figure 15: P77STFLXA solder tip attached with 120 mils (3.05 mm) wires (rise time =
30.1 ps)
Figure 16: P77STFLXA solder tip attached with 200 mils (5.08 mm) wires (rise time
=34ps)
