AFA4000/E VAV Airflow Controller / p.34
3.8.2 Damper control components
• 1 – AFA4000/E monitor
• 1 – Airflow Sensor c/w 2 metre RJ45 sensor cable
• 1 – Econ Power Supply Unit c/w 2 metre ribbon cable
• 1 – Electrical Damper Actuator c/w 3 metre flying lead

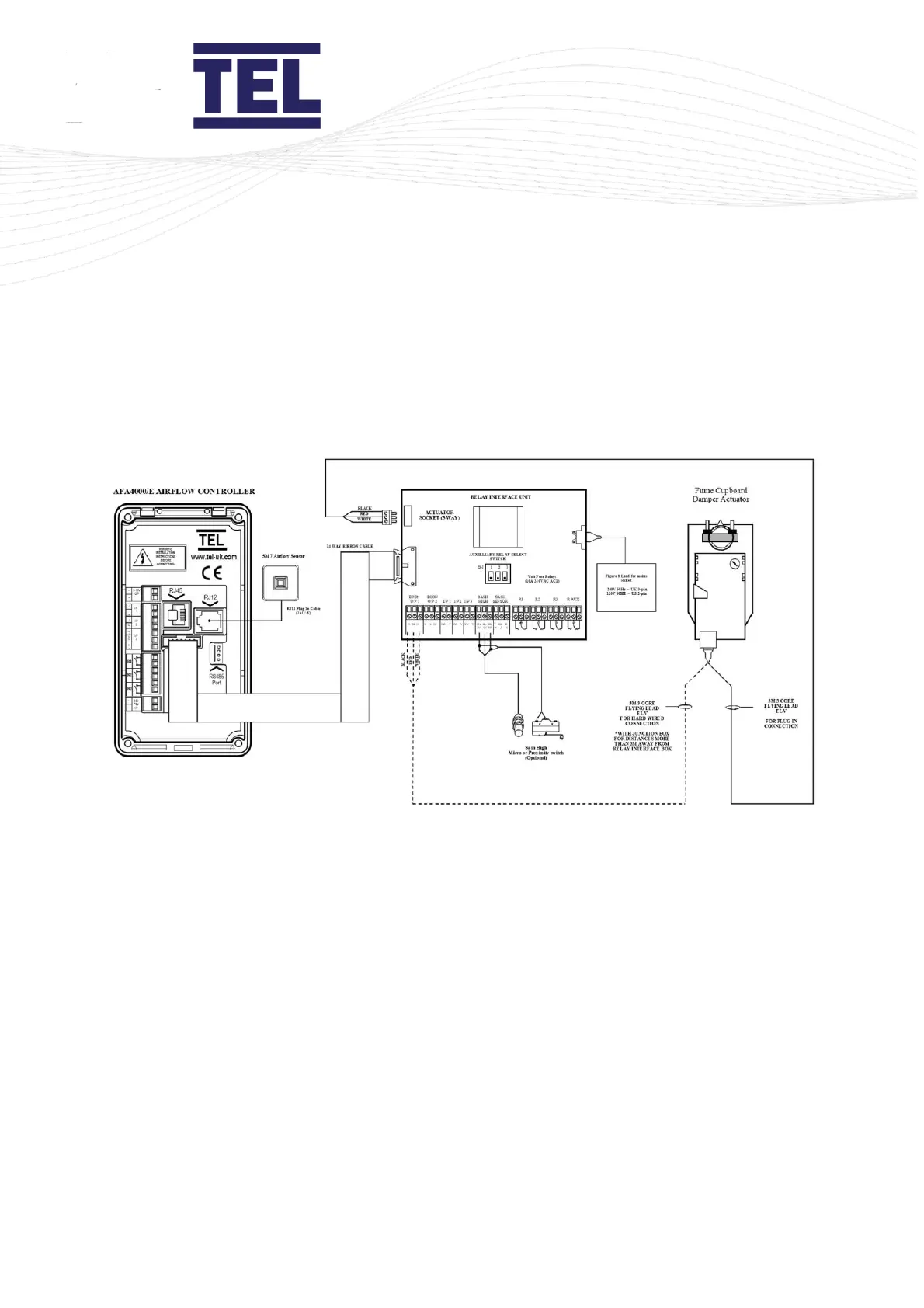

Figure 3: AFA4000/E damper control components
