AFA4000/E VAV Airflow Controller / p.46
4.3.7 Tilt switch
The Tilt Switch is an optional, third party supplied component, which is fitted to the fume hood
top panel. It operates to isolate the Auto Sash controls, when the top panel is open to facilitate
the servicing of the fume hood.

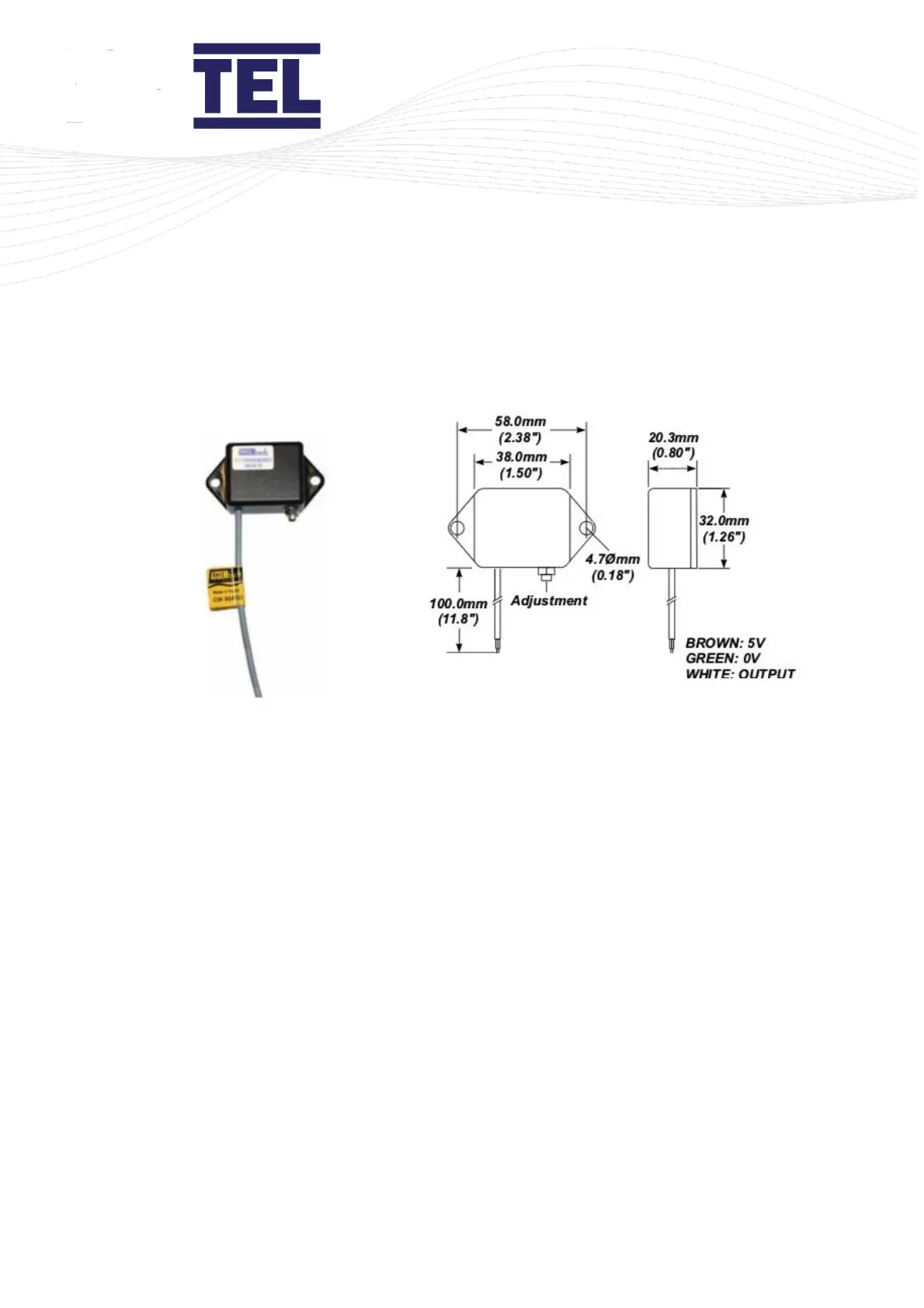

Figure 12: Typical third-party tilt switch
