AFA4000/E VAV Airflow Controller / p.54

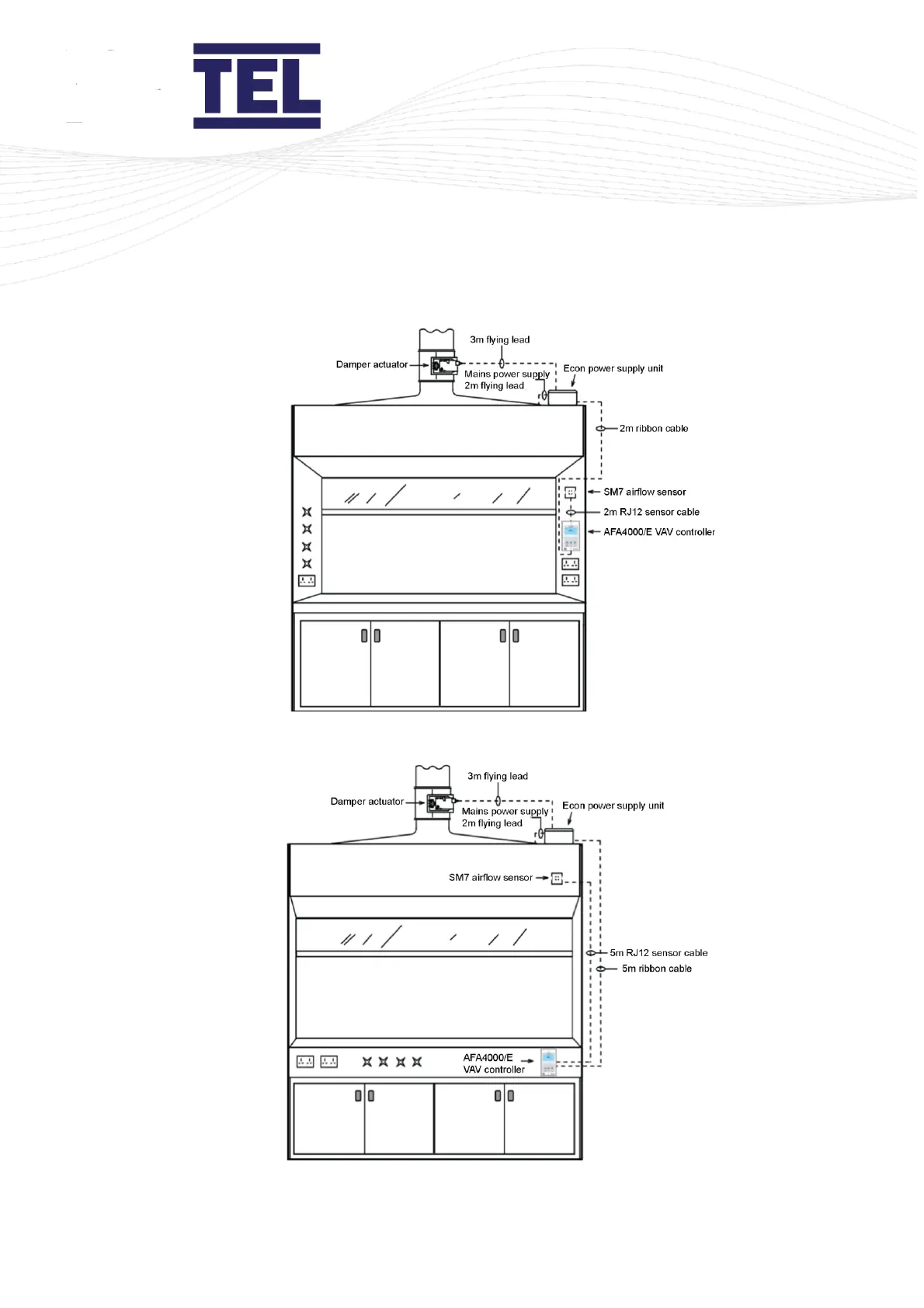

5.2.2 Typical installation diagrams
Figure 19: Typical double-wall style fume cupboard installation
Figure 20: Typical Euro single-wall fume cupboard installation
