AFA4000/E VAV Airflow Controller / p.77

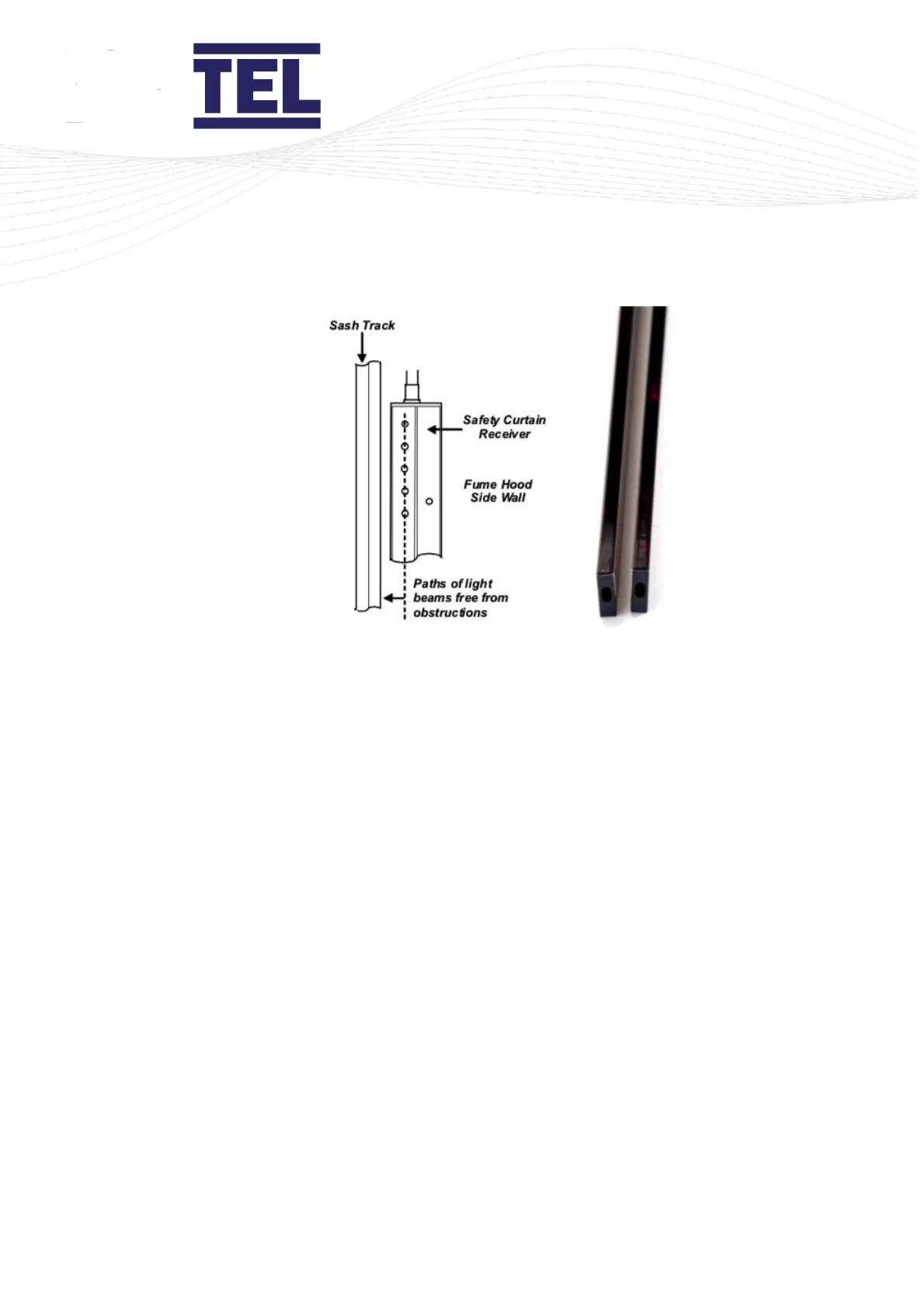

Figure 40: Mounting transmitter / receiver
6.3.3 Aligning the light curtain transmitter and receiver
Mount the light curtain receiver and transmitter at the same height on opposing sides of the
fume hood opening. A small error in alignment is acceptable. The allowable error is dependent
on the spacing between the transmitter and receiver.
Figure 41 illustrates the maximum allowable transmitter to receiver misalignment /
displacement for a 0 to 3 m (0 to 118.11") range of fume hood widths. For a typical fume hood
width of 1 to 2 m (39.37 to 78.740"), the maximum allowable misalignment / displacement
ranges from approximately 20 to 40 mm (0.79 to 1.58").
