RJ45 socket for ADSL connection bintec R3002 and RT3002

Pin Position

1 Not used

2 Not used

3 Not used

4 Line 1a

5 Line 1b

6 Not used

7 Not used

8 Not used

5.5.4 SHDSL interface

The SHDSL interface on bintec R3802 is connected via an RJ45 connector. The cable

supplied connects the RJ45 connector needed for the device to an RJ45 connector needed

for the SHDSL connection.

The following pins are used for the SHDSL connection:

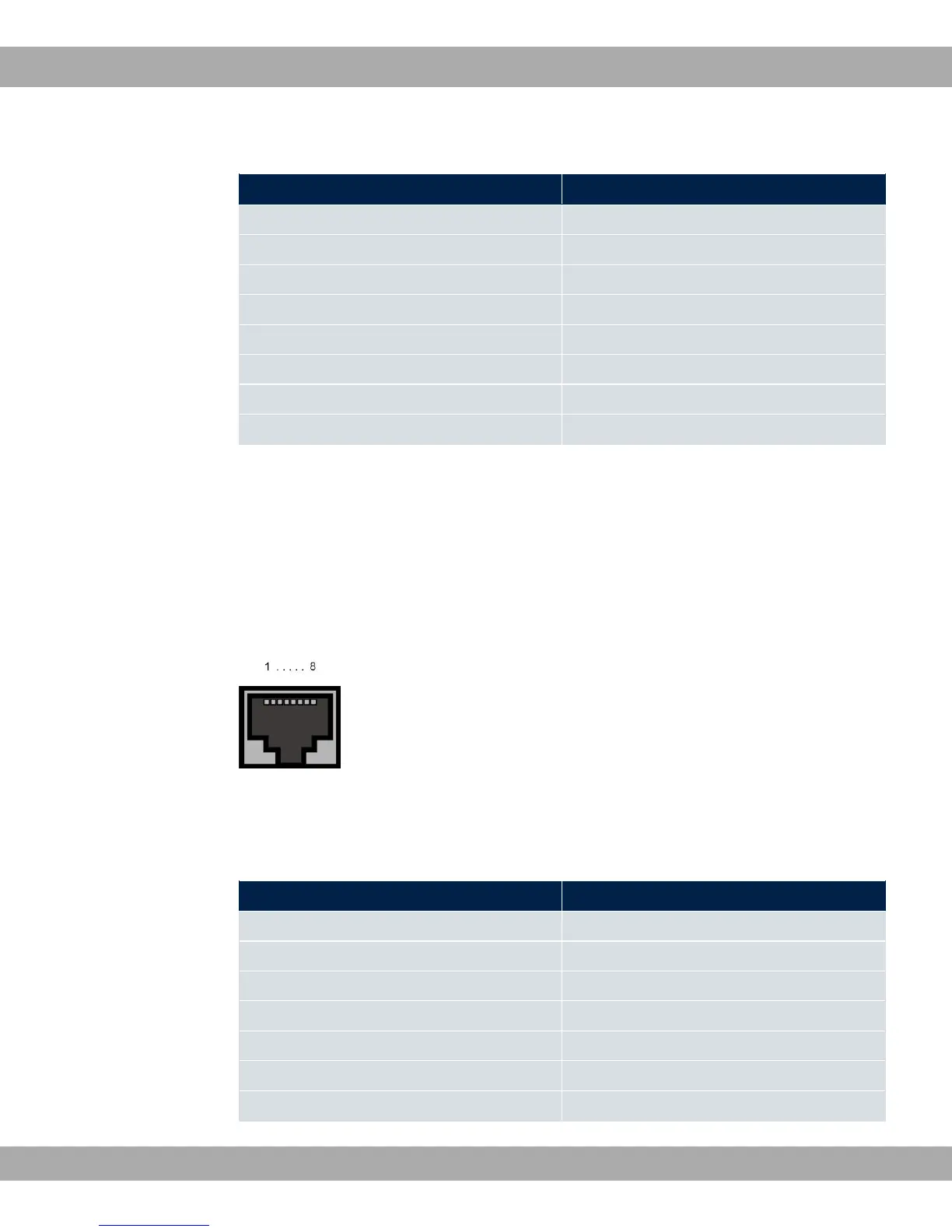

Fig. 14: SHDSL interface (RJ45 connector) bintec R3802

The pin assignment for the SHDSL interface (RJ45 connector) is as follows:

RJ45 socket for SHDSL connection bintec R3802

Pin Position

1 Line a4

2 Line b4

3 Line a3

4 Line a1

5 Line b1

6 Line b3

7 Line a2

Teldat GmbH

5 Technical data

bintec Rxxx2/RTxxx2 31
