Teldat H2 RAIL User Manual

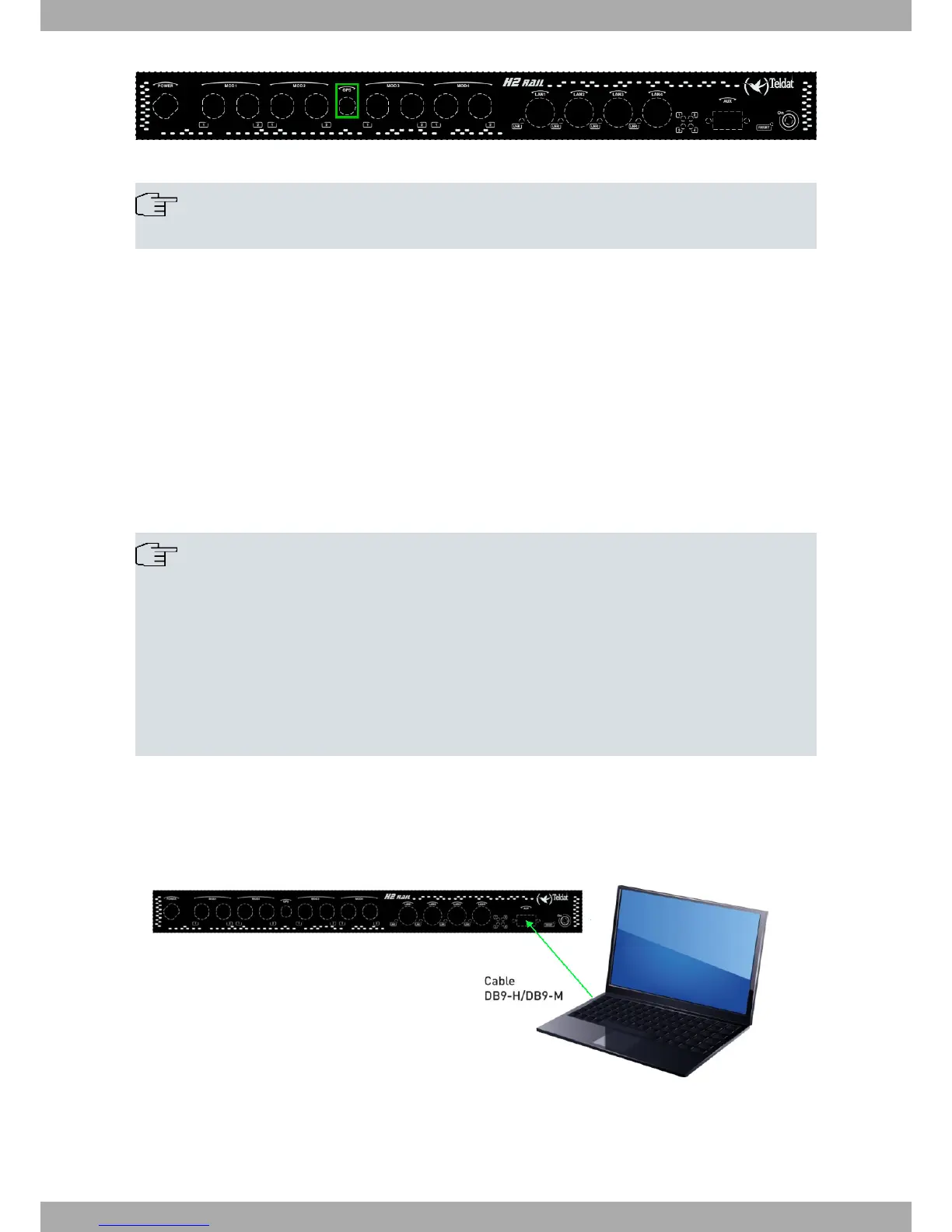

Fig. 12: GPS antenna connector
Note
The GPS will not work properly unless you install a valid SIM card.
For further information on GPS configuration, please see the Teldat Dm812-I GPS manual.
3.5.5 Configuration connection
3.5.5.1 Configuration using the local console (AUX connector)
The Teldat H2 RAIL has a DB9 female connector on the front panel known as AUX. This provides access to the
router's local console and can operate as an asynchronous serial port. The interface behavior or function must be
pre-configured. By default, it is configured in local console mode. This section focuses on the connection for local
console mode.
To configure local console mode, connect the AUX port to an asynchronous terminal (or to a PC with terminal emula-
tion).
Note
The terminal must be configured as follows:
- Speed: 9600 bps.
- Eight data bits.
- One stop bit.
- No parity bit.
- No flow control.
Connection to the configuration port is carried out using a DB9 male and a DB9 female connector. If the terminal has
DB25 connectors, you will need an additional adapter.
Fig. 13: Connection for configuration
Teldat S.A.
3 Components and power supply
Teldat H2 RAIL 13
