Teldat H2 RAIL User Manual

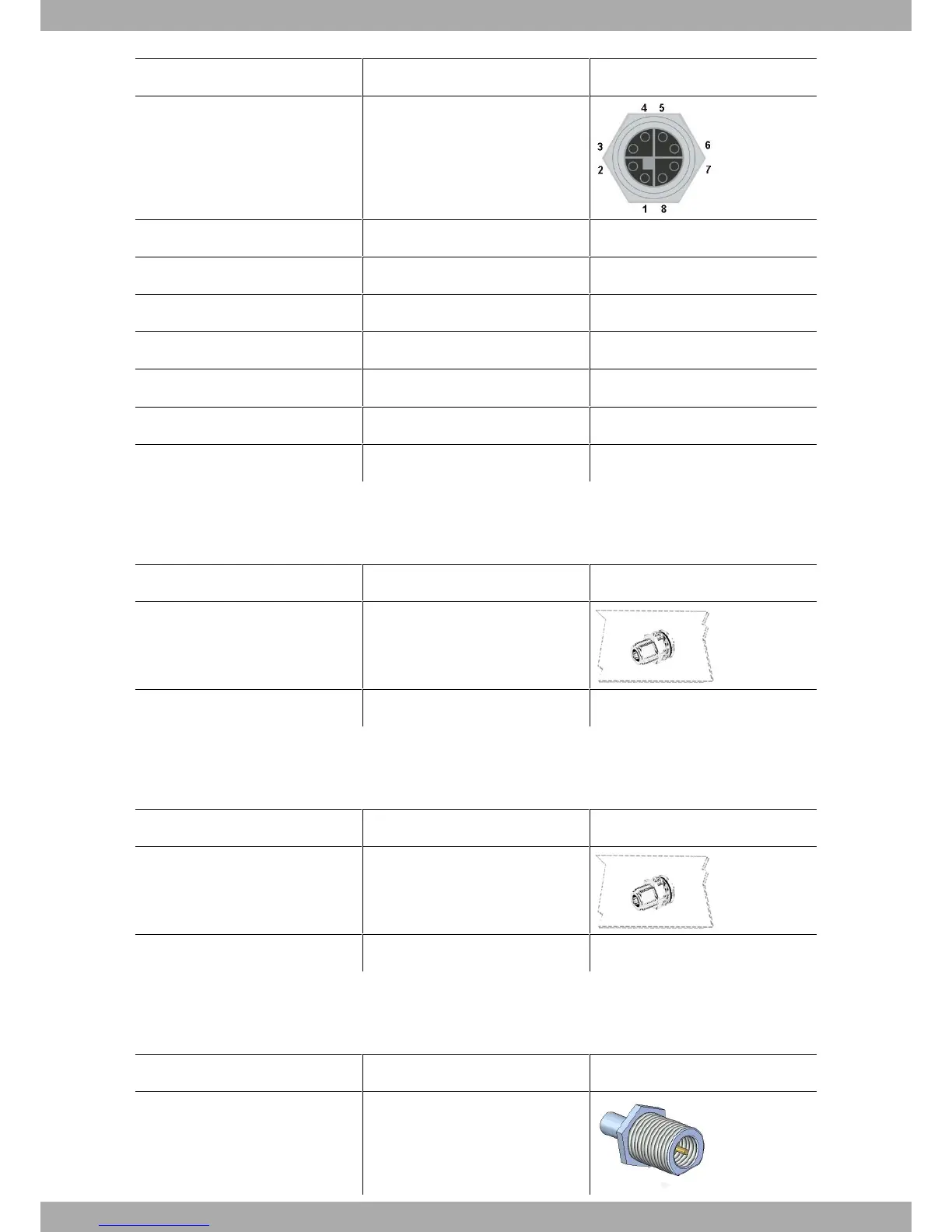

PIN GE Signal -> Signal
M12 8P X-Code female connector
1 BI-DA+-> Tx+ (1)
2 BI-DA--> Tx- (2)
3 BI-DB+-> Rx+ (3)
4 BI-DB- -> Rx- (6)
5 BI-DD+(4)
6 BI-DD-(5)
7 BI-DC- (7)
8 BI-DC+(8)
A.3.3 WWAN connectors
The WWAN connector installed is an N female coaxial.
PIN Signal N-Type connector (female jack)
Internal RF In/Out
External Gnd
A.3.4 WLAN connectors
The WLAN connector installed (for devices equipped with this interface) is an N female coaxial.
PIN Signal N-Type connector (female jack)
Internal RF In/Out
External Gnd
A.3.5 GPS connector
The GPS connector installed (for devices equipped with this interface) is an FME male.
PIN Signal RF FME male connector
Internal RF In
Teldat S.A.
Technical information
Teldat H2 RAIL 23
