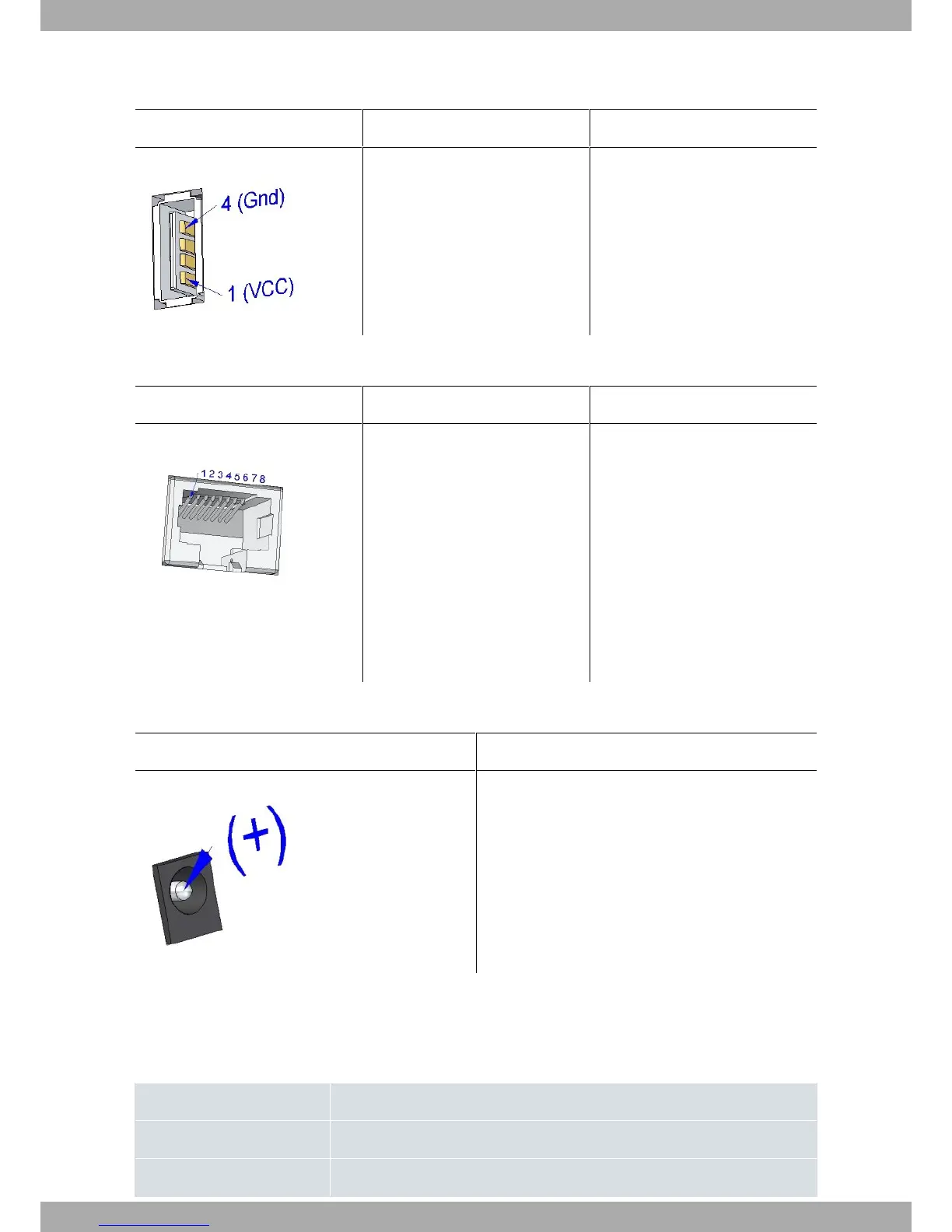

A.4.6 USB Connector
USB Type A PIN USB
1
2
3
4
Shell
VCC
DATA-
DATA+
GND
Shield
A.4.7 Configuration Connector
RJ45 CONFIGURATION RJ45 PIN CONF
1
2
3
4
5
6
7
8
--
RxD
GND
--
--
GND
TxD
--
A.4.8 Power Supply Connector
Jack 5.5/2.5mm PIN
Internal -> POSITIVE
External -> NEGATIVE
A.5 Technical Specifications
A.5.1 Hardware Architecture
PROCESSORS Freescale QorIQ.
MEMORY 1 Gbyte in SDRAM.
STORAGE UNIT FLASH Memory (32 Mbytes).
Technical Information Teldat S.A.
