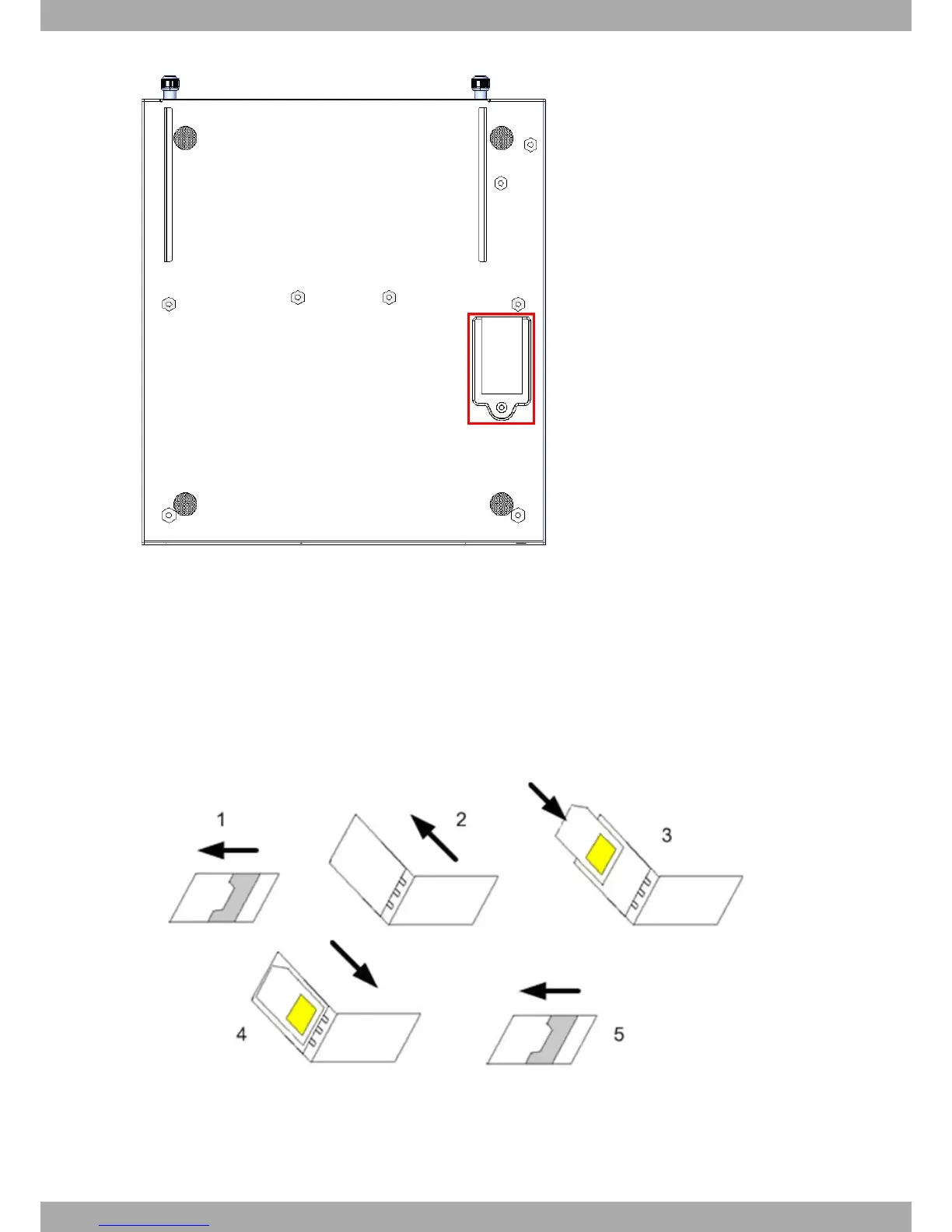

Fig. 25: Internal module SIM tray
To insert a SIM, locate the slot and remove the flap. The SIM tray becomes visible. Now carry out the following
steps:
(1) Push the fastening in the direction indicated by the arrow with the word OPEN.
(2) Open the upper part of the tray.
(3) Fully insert the SIM card using the slot guides.
(4) Return the tray to its original position.
(5) While pressing on the tray, push the fastening towards the direction indicated by the word LOCK until it is firmly
in place.
Fig. 26: Inserting the SIM in the internal tray
