Teldat M1 User Manual

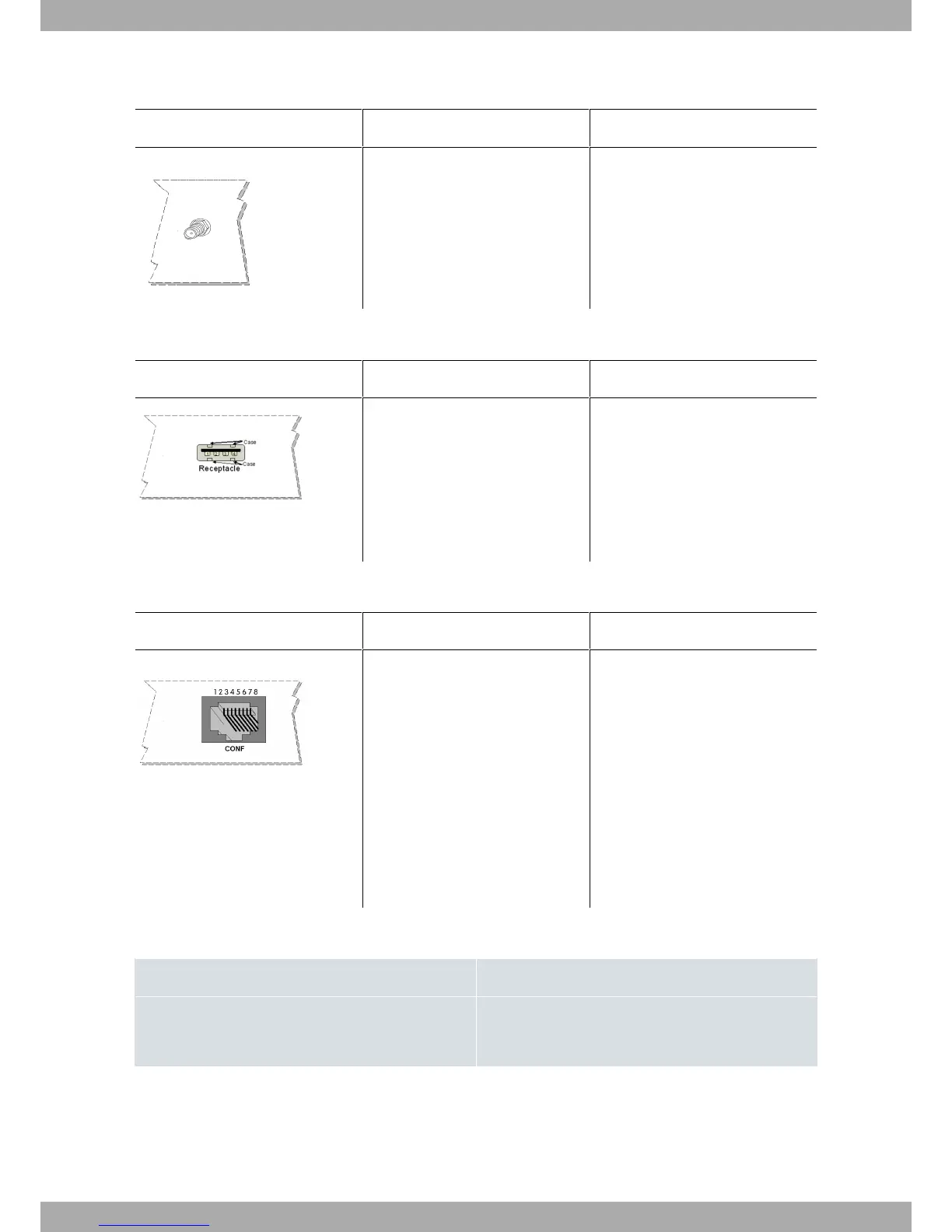

A.5.4 WLAN Connector (male)
PIN ANT
Internal
External
RF in/out
GND
A.5.5 USB Connector
USB Type A PIN USB
1
2
3
4
Shell
VCC
DATA-
DATA+
GND
Shield
A.5.6 Configuration Connector
RJ45 CONFIGURATION RJ45 PIN CONF
1
2
3
4
5
6
7
8
--
RxD
GND
--
--
GND
TxD
--
A.5.7 Power Supply Connector
PIN ANT
Internal
External
POSITIVE
NEGATIVE
A.6 Technical Specifications
Technical Information Teldat S.A.
30 Teldat Router M1/M1L

Teldat M1 Specifications

General

Form Factor	Desktop
WAN Ports	1
LAN Ports	4
USB Ports	1
VPN Support	IPsec, OpenVPN, PPTP, L2TP
Firewall	Stateful Packet Inspection (SPI)
Power Supply	12V DC
Operating Temperature	0°C to 40°C
Weight	250g
