3.7.1 4-port Ethernet Switch
The Teldat M1 router family incorporates a 4-port 10/100/1000 BaseT Switch with automatic MDI/MDIX to connect to
a local area network (LAN).
Please pay careful attention to the labeling so you do not mix this switch with other port types:

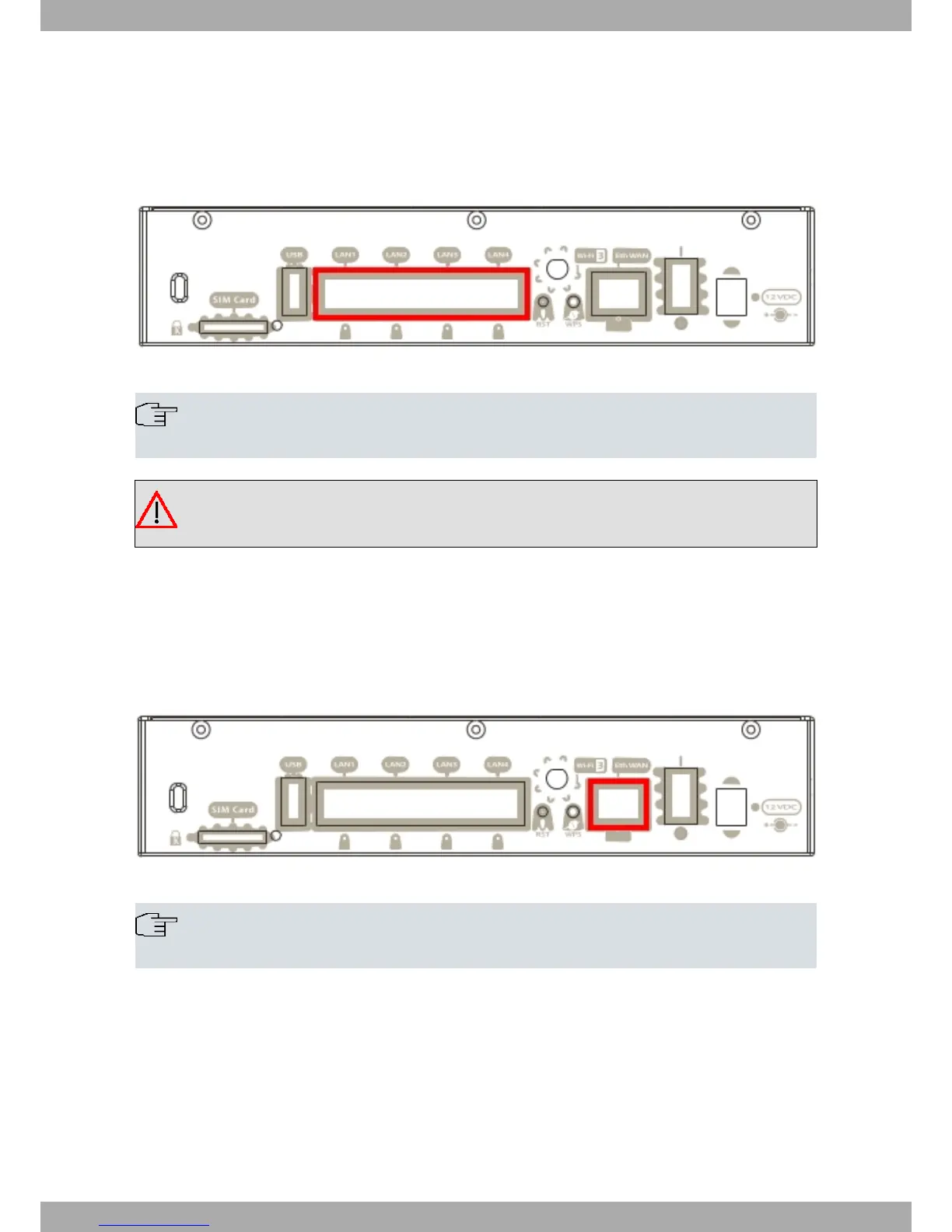

Fig. 14: LAN switch ports
Note
During booting and in BIOS mode, only the LAN 1 connector is available.
Warning
The equipment must be used with the power supply provided by the manufacturer.
3.7.2 WAN Connection
The Teldat M1 router family incorporates an Ethernet WAN 10/100/1000 BaseT port with automatic MDI/MDIX.
The WAN port is independent from the Switch and is handled as just one more interface.
Please pay careful attention to the labeling so you do not mix this switch with other port types:
Fig. 15: WAN PORT
Note
During booting and in BIOS mode, the WAN connector is not operative.
3.7.3 WWAN Antenna Connection (Cell connector)
The Teldat M1 router family has two connectors for 3G antennas. To assemble and disassemble the antennas,
simply screw them into the Cell connectors (located on the side panels of the router).
Installing these antennas in the Teldat M1 router is essential in order to improve the quality of the signal received
and transmitted by the cellular model.
3 Components and Power Supply Teldat S.A.
14 Teldat Router M1/M1L
