Teldat M10-Smart - USB 3.0 Connector; Configuration Connector; Power Supply Connector

Internal
External
RF in/out
GND

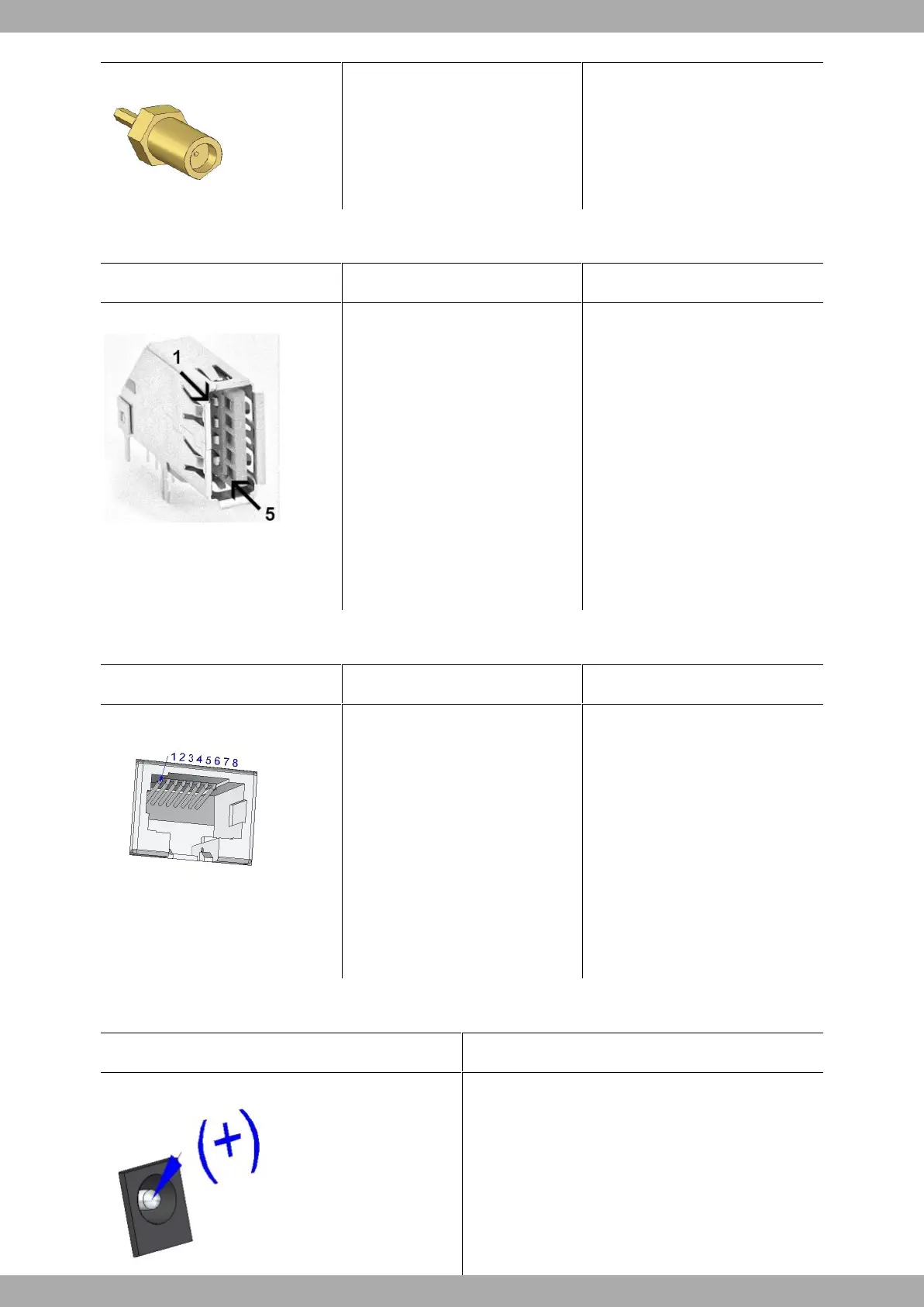

A.4.5 USB 3.0 connector
Type-A
PIN Signal
1
2
3
4
5
6
7
8
Shell
VBUS
D- (USB 2.0)
D+ (USB 2.0)
SSRX- (USB 3.0)
SSRX+ (USB3.0)
GND_DRAIN
SSTX- (USB 3.0)
SSTX+ (USB 3.0)
Shield
A.4.6 Configuration connector
RJ45 CONFIGURATION RJ45 PIN CONF
1
2
3
4
5
6
7
8
--
--
TxD
GND
GND
RxD
--
--
A.4.7 Power supply connector
Jack 5.5/2.5mm PIN
Internal -> POSITIVE
External -> NEGATIVE
