Teldat V - Wall Mounting Details; Wall Mounting Hardware

TELDAT V – Installation Manual
I - 11
Doc.DM567-I
Rev.4.0

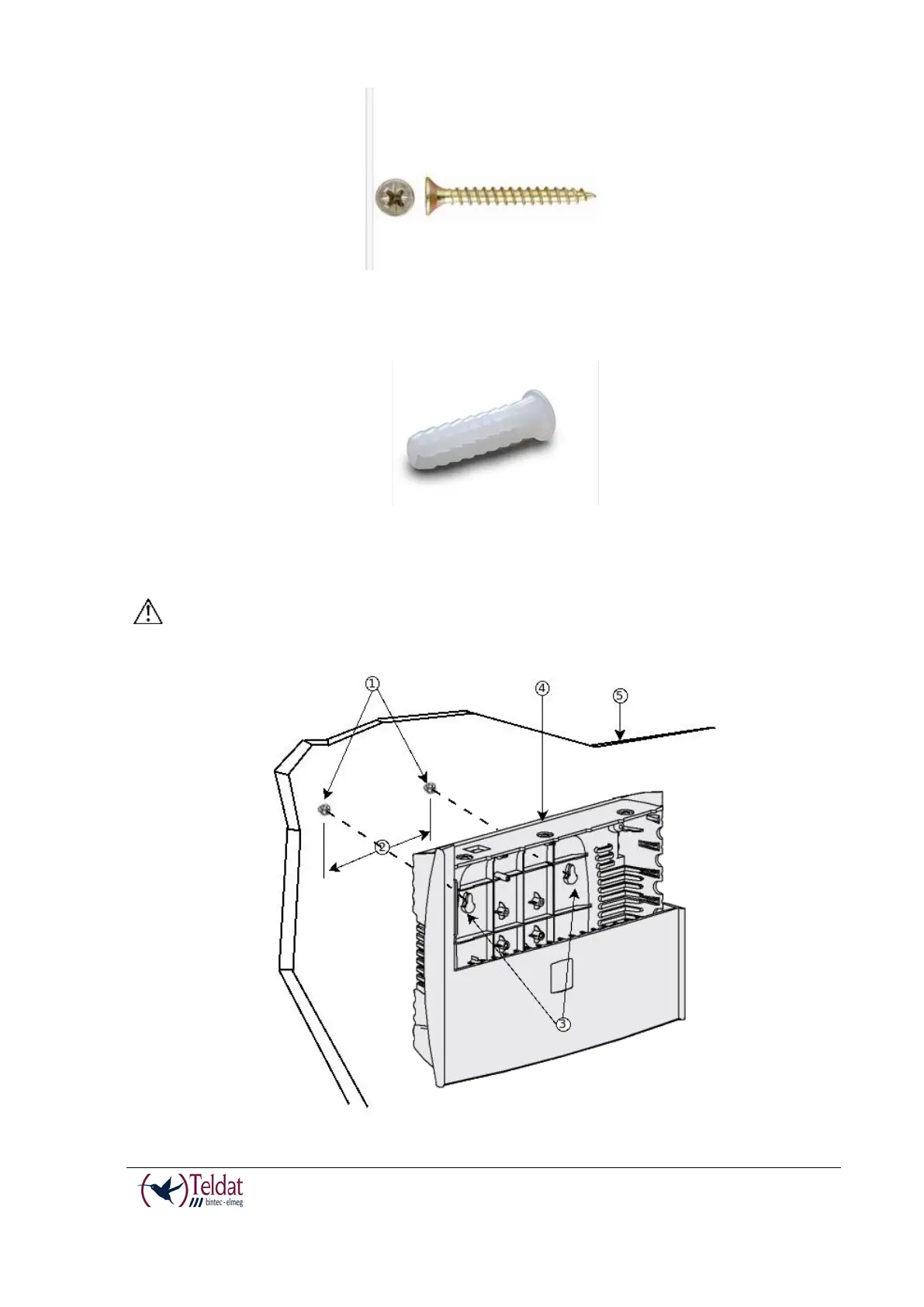

FIGURE 7. SCREW
• 2 wall anchors: [WHITE STRIATED WALL ANCHOR DIAM.8mm]
FIGURE 8. WALL ANCHOR
Caution: The screws must go into a wall stud (wood) or a wall anchor of the appropriate
type for the wall. Screws into drywall are not sufficient to mount the router.
FIGURE 9. WALL-MOUNTING FEATURES ON THE TELDAT V ROUTER
