• The density of materials also affects the antennas. Position it away from all types of
walls, metal screens, mirrors, etc.
• Do not place the antenna near columns that could throw shadows and reduce the coverage
area.
• Keep the antenna away from metal ducts such as canalization, air-conditioning etc.
• Bear in mind that other wireless devices such as telephones, microwaves, etc can
temporarily interfere with the quality of the wireless signal.
• We do not recommend that you install antennas in racks containing communication
devices, computers, etc. Use an extension cord for this and locate the antenna outside.
The following recommendations are applicable to all wireless devices:
• Do not touch or move the antenna while the device is transmitting or receiving.
• Do not handle any equipment that contains devices which radiate so the antenna is very
close or touching any exposed part of the body, particularly the face or eyes, when it is
transmitting.
• Do not install the device in areas where the atmosphere is potentially explosive.
• Wireless devices can cause interferences with other devices. Do not use the device in
environments where medical equipment is installed.
• To ensure the R&TTE 1999/5/EC directive is complied with, the device must be at least
15 cm away from a person’s body when operating.
Wireless LAN Antenna Connection (Wi-Fi connectors)
The Teldat V router has two RF antenna connectors to connect an external antenna to improve
the quality of the signal received and transmitted by the Wireless LAN module.
This module is internal and can be activated by purchasing the corresponding software license.
To assemble and disassemble the antennas provided with the device, just screw them into the
connectors, labeled Wi-Fi, which are located on both lateral panels of the router.

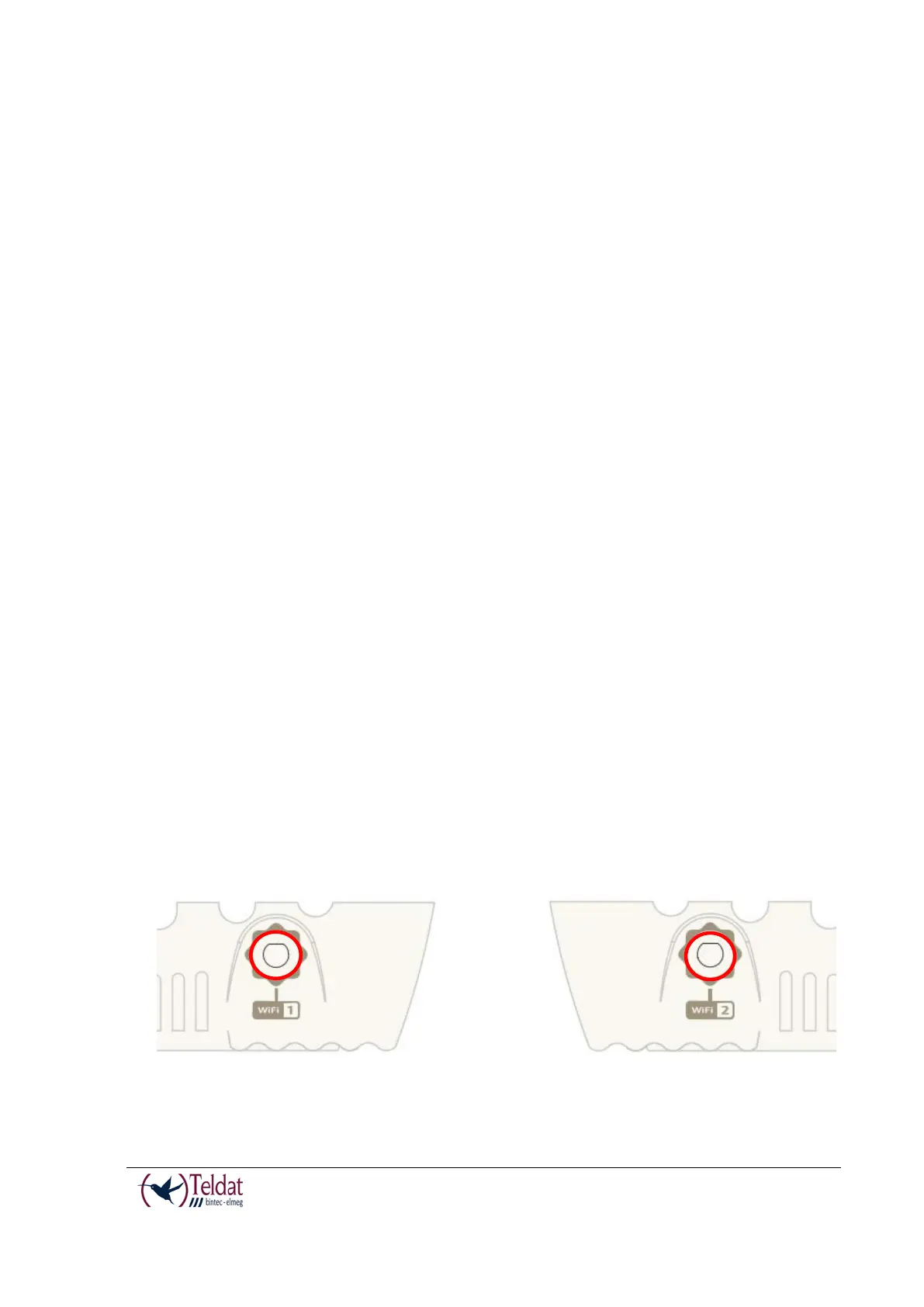

FIGURE 17. WI-FI ANTENNA 1
FIGURE 18. WI-FI ANTENNA 2
