Teletype 28 - Page 114

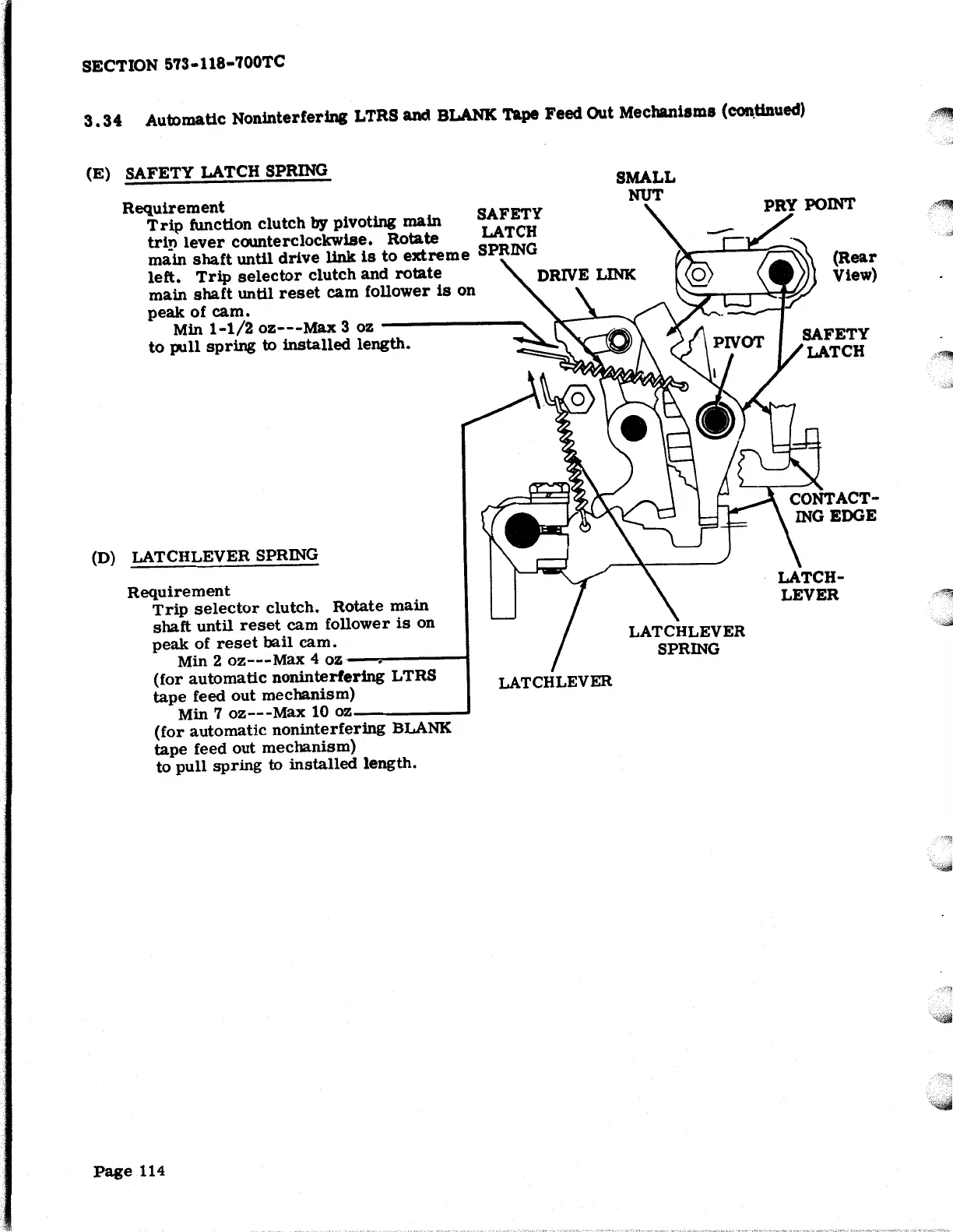

SECTION 573-118-700TC
3. 34 Automatic Noninterferlng LTRS and BLANK Tape Feed Out Mechanisms (~tiDued)
(E) SAFETY LATCH SPRING
Requirement
Tri'P function clutch by pivoting main
SAFETY
SMALL
NUT
trin lever counterclockwise. Rotate LATCH
main shaft until drive link is to extreme SPRING
left. Trip selector clutch and rotate '\.. DRIVE LINK
main shaft until reset cam follower is on
peak of cam.
Min 1-1/2 oz---Ma.x 3 oz -------
to pull spring to installed length.
(D) LATCHLEVER SPRING
Requirement
Trip selector clutch. Rotate main
shaft until reset cam follower is on
peak of reset bail cam.
Min 2 oz---Max 4 oz--?". -----f
(for automatic noninterfering LTRS
tape feed out mechanism)
Min 7 oz---Max 10 oz-------'
(for automatic noninterfering BLANK
tape feed out mechanism)
to pull spring to installed length.
Page 114
LATCHLEVER
(Rear
View)
·~
