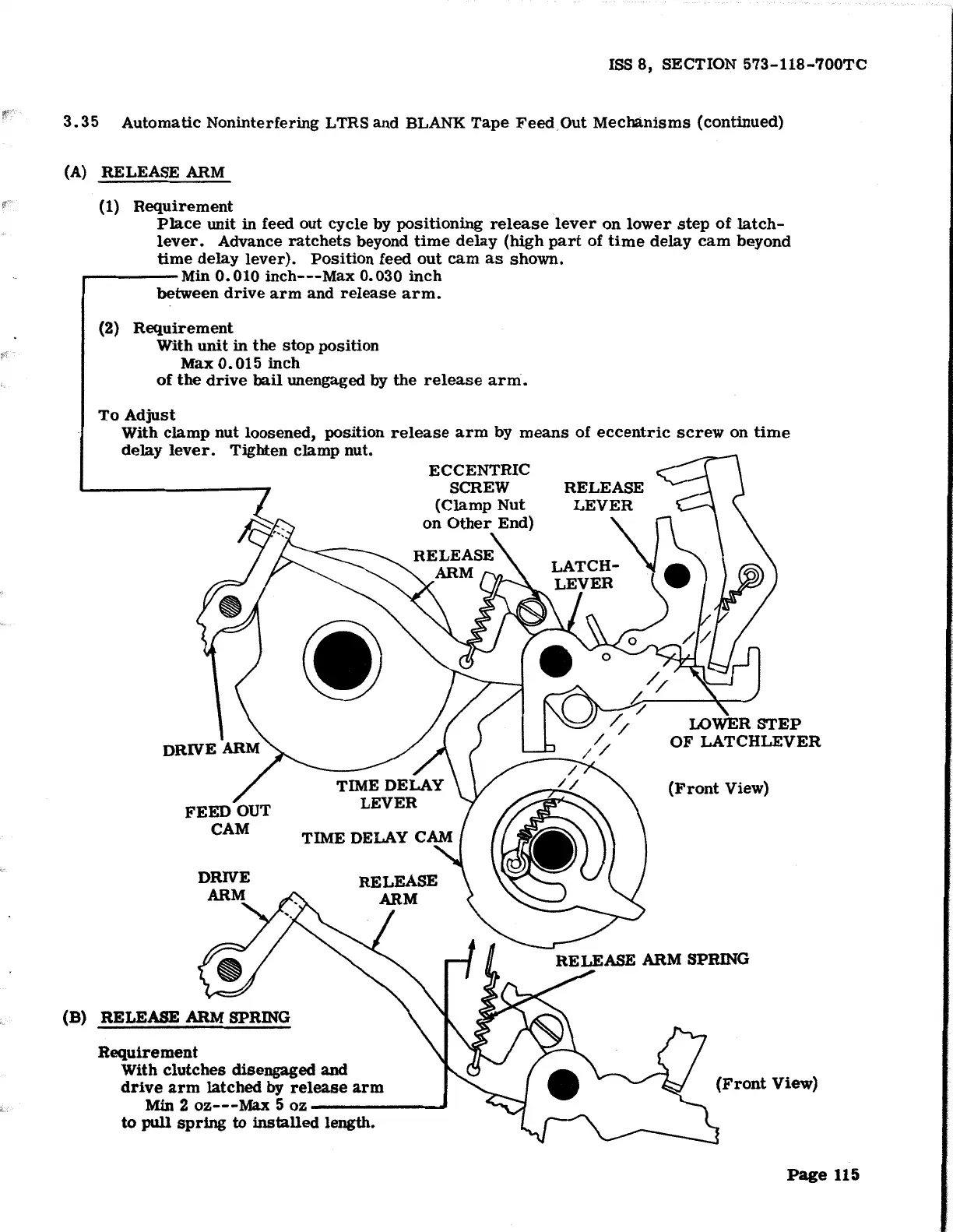

3. 35 Automatic Noninterfering LTRS and BLANK Tape FeedOut Mechanisms {continued)
(A) RELEASE ARM
(1)
Requirement
Place unit in feed out cycle by positioning release lever on lower step of latch-
lever. Advance ratchets beyond time delay (high part of time delay cam beyond
time delay lever). Position feed out cam as shown.
r------Min 0.010 inch---Max 0.030 inch
between drive arm and release arm.
(2) Requirement
With unit in the stop position
Max 0.015 inch
of the drive bail unengaged by the release arm.
To Adjust
With clamp nut loosened, position release arm by means of eccentric screw on time
delay lever. Tighten clamp nut.
(B) RELEASE ARM SPRING
Requirement
With clutches disengaged and
drive arm latched by release arm
ECCENTRIC
SCREW
(Clamp Nut
on Other End)
Min 2 oz---Max 5 oz ------~
to pull spring to installed length.
(Front View)
(Front View)
