ISS 8, SECTION 573-118-700TC

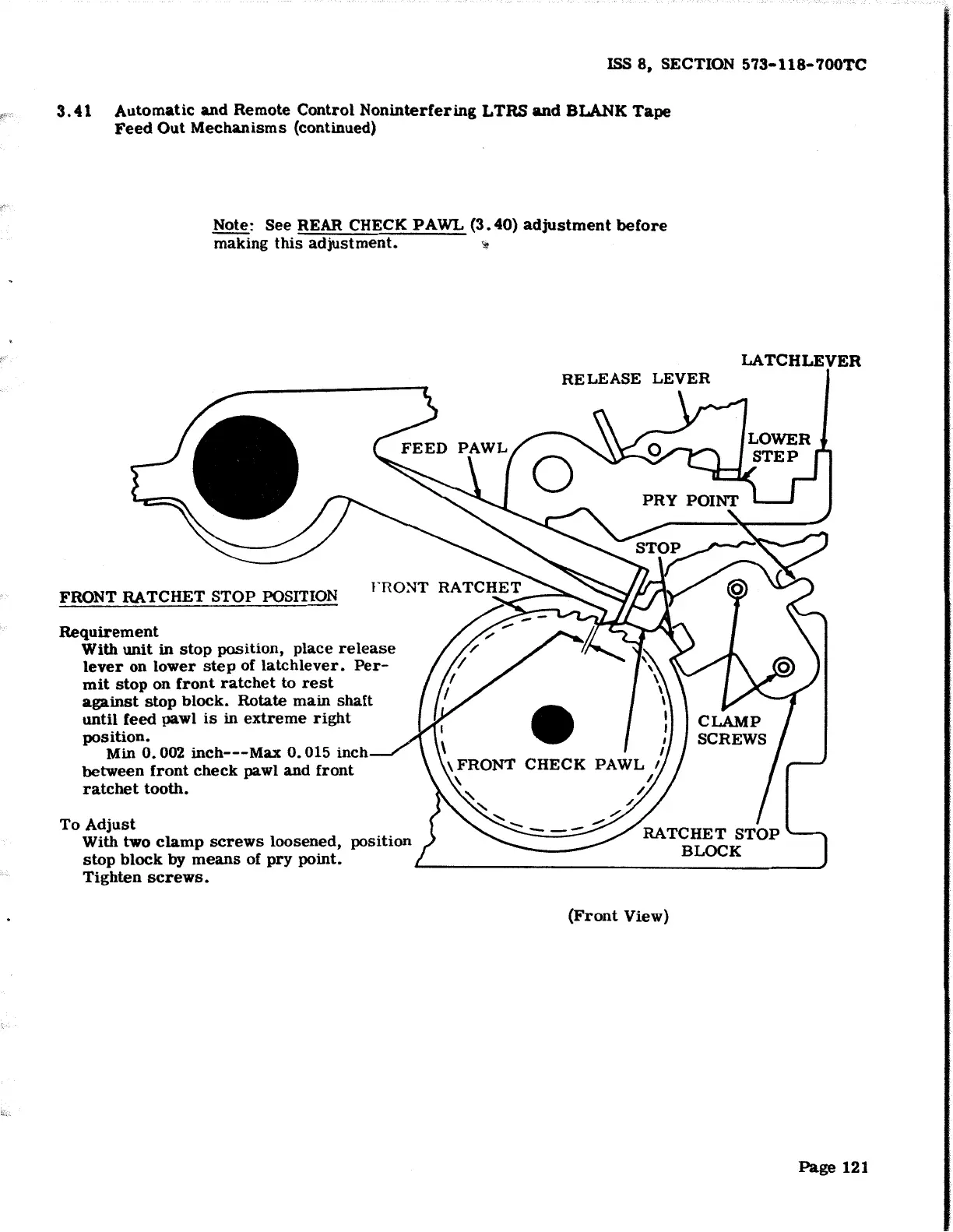

3.41 Automatic and Remote Control Noninterfering LTRS and BLANK Tape
Feed Out Mechanisms (continued)
Note:
See REAR CHECK PAWL (3.40) adjustment before
making this adjustment. ~
FRONT RATCHET STOP POSITION
Requirement
With unit in stop position, place release
lever on lower step of latchlever. Per-
mit stop on front ratchet to rest
against stop block. Rotate main shaft
until feed pawl is in extreme right
position.
Min 0. 002 inch---Max 0. 015 inch
between front check pawl and front
ratchet tooth.
To Adjust
With two clamp screws loosened,
stop block by means of pry point.
Tighten screws.
(Front View)
LATCHLEVER
Page 121
