Teletype 28 - Page 128

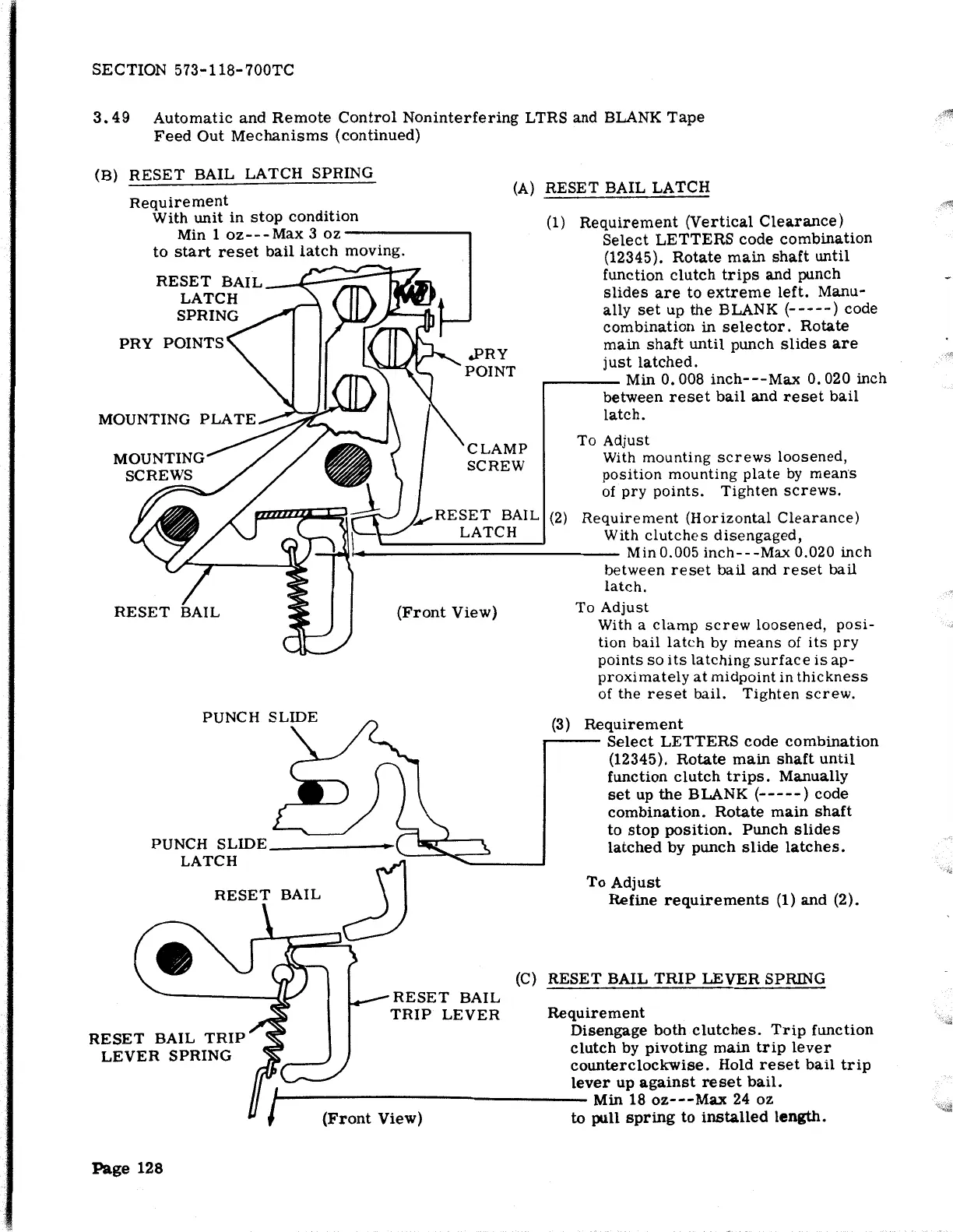

SECTION 573-118-700TC
3. 49 Automatic and Remote Control Noninterfering LTRS and BLANK Tape
Feed Out Mechanisms (continued)
(B) RESET BAIL LATCH SPRING
Requirement
With unit in stop condition
(A) RESET BAIL LATCH
Min 1 oz---Max 3 oz------ ....
to start reset bail latch moving.
(1) Requirement (Vertical Clearance)
Select LETTERS code combination
(12345). Rotate main shaft until
PRY
RESET BAIL_
LATCH
SPRING
PUNCH SLIDE
LATCH
RESET BAIL
RESET BAIL TRIP
LEVER SPRING
CLAMP
SCREW
function clutch trips and punch
slides are to extreme left. Manu-
ally set up the BLANK (-----) code
combination in selector. Rotate
main shaft until punch slides are
just latched .
....----Min 0. 008 inch---Max 0. 020 inch
between reset bail and reset bail
latch.
To Adjust
With mounting screws loosened,
position mounting plate by means
of pry points. Tighten screws.
RESET BAIL (2) Requirement (Horizontal Clearance)
LATCH With clutches disengaged,
-------- Min0.005 inch---Max 0.020 inch
{Front View)
RESET BAIL
between reset bail and reset bail
latch.
To Adjust
With a clamp screw loosened, posi-
tion bail latch by means of its pry
points so its latching surface is ap-
proximately at midpoint in thickness
of the reset bail. Tighten screw.
(3) Requirement
....--- Select LETTERS code combination
(12345). Rotate main shaft until
function clutch trips. Manually
set up the BLANK(-----) code
combination. Rotate main shaft
to stop position. Punch slides
latched by punch slide latches.
To Adjust
Refine requirements (1) and (2).
(C)
RESET BAIL TRIP LEVER SPRING
TRIP LEVER Requirement
Disengage both clutches. Trip function
clutch by pivoting main trip lever
counterclockwise. Hold reset bail trip
lever up against reset bail.
I
f----------------Min 18 oz---Max 24 oz
(Front View) to pull spring to installed length.
Page 128
