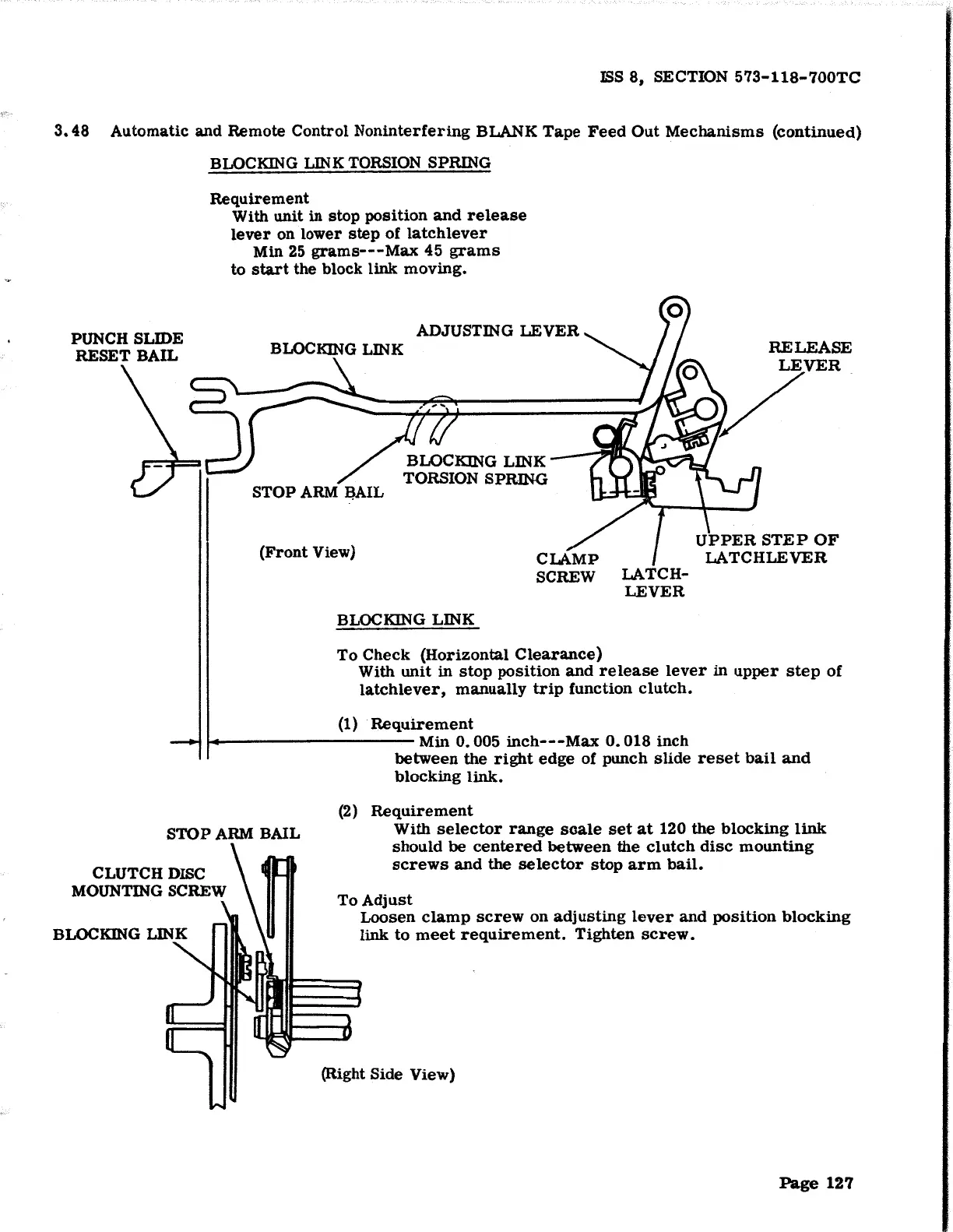

ISS 8, SECTION 573-118-700TC
3. 48 Automatic and Remote Control Noninterfering BLANK Tape Feed Out Mechanisms (continued)
BLOCKING LINK TORSION SPRING
PUNCH SLIDE
RESET BAIL
Requirement
With unit in stop position and release
lever on lower step of latchlever
Min 25 grams---Max 45 grams
to start the block link moving.
ADJUSTING LEVER
BLOCKING LINK ~ / / RELEASE
(Front View)
- ,9.,
1
:::.._
1
/VER
LATCH-
LEVER
BLOCKING LINK
To Check (Horizontal Clearance)
With unit in stop position and release lever in upper step of
latch lever, manually trip function clutch.
(1) Requirement
1-.--------- Min 0. 005 inch---Max 0. 018 inch
between the right edge of punch slide reset bail and
blocking link.
(2) Requirement
STOP ARM BAIL
With selector range soale set at 120 the blocking link
should be centered between the clutch disc mounting
screws and the selector stop arm bail.
CLUTCH DISC
MOUNTING SCREW
To Adjust
Loosen clamp screw on adjusting lever and position blocking
link to meet requirement. Tighten screw.
(Right Side View)
Page 127
