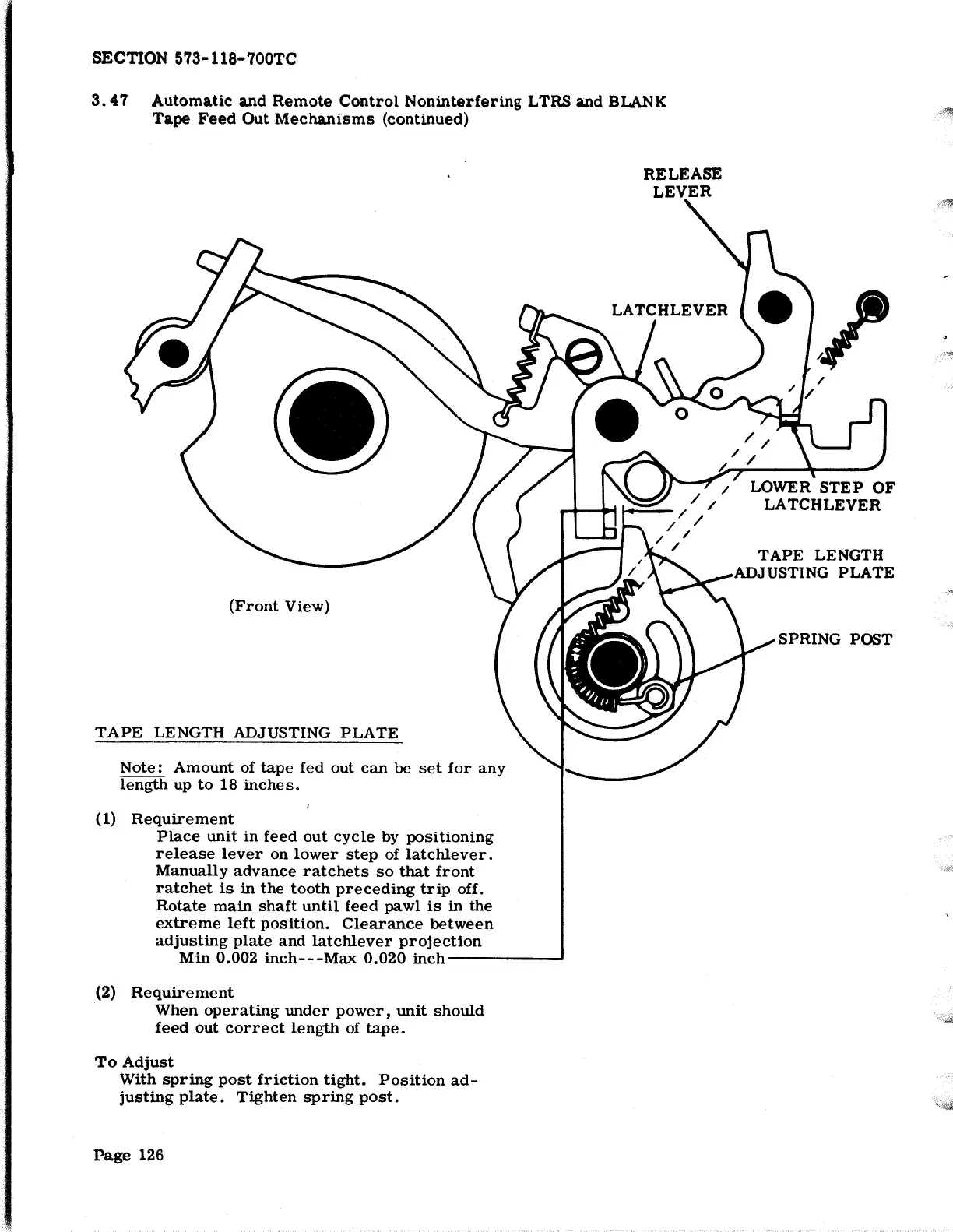

SECTION 573-118-700TC
3. 47 Automatic and Remote Control Noninterfering LTRS and BLANK
Tape Feed Out Mechanisms (continued)
(Front View)
TAPE LENGTH ADJUSTING PLATE
Note: Amount of tape fed out can be set for any
length up to 18 inches.
(1) Requirement
Place unit in feed out cycle by positioning
release lever on lower step of latchlever.
Manually advance ratchets so that front
ratchet is in the tooth preceding trip off.
Rotate main shaft until feed pawl is in the
extreme left position. Clearance between
adjusting plate and latchlever projection
Min 0.002 inch---Max 0.020 inch-------1
(2) Requirement
When operating under power, unit should
feed out correct length of tape.
To Adjust
With spring post friction tight. Position ad-
justing plate. Tighten spring post.
Page 126
RELEASE
LEVER
;-
SPRING POST
