ISS 8, SECTION 573-118-?00TC

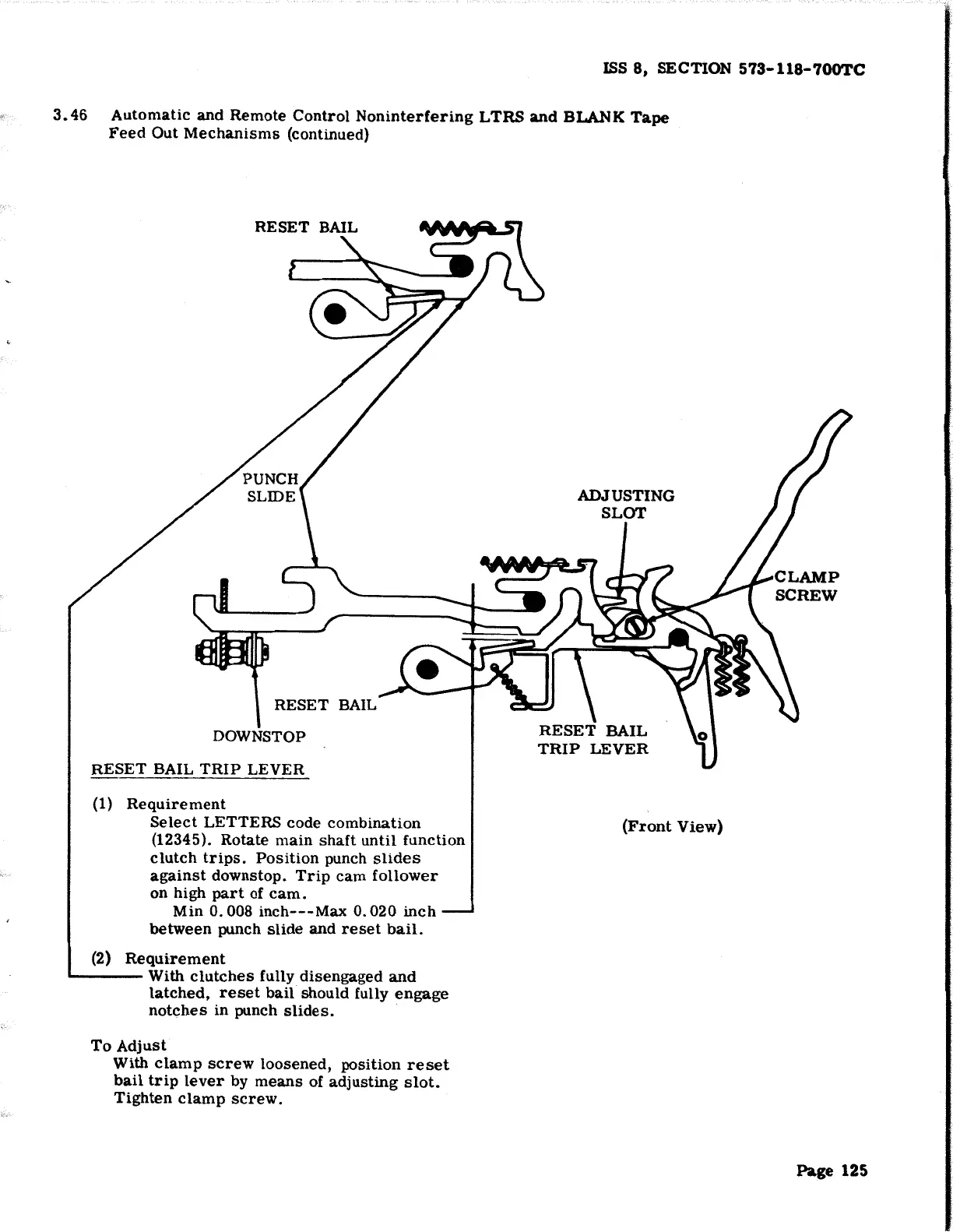

3.46 Automatic and Remote Control Noninterfering LTRS and BLANK Tape
Feed Out Mechanisms (continued)
RESET BAIL
'
DOWNSTOP
RESET BAIL TRIP LEVER
(1) Requirement
Select LETTERS code combination
(12345). Rotate main shaft until function
clutch trips. Position punch slides
against downstop. Trip cam follower
on high part of cam.
Min 0. 008 inch---Max 0. 020 inch
between punch slide and reset bail.
(2) Requirement
L---- With clutches fully disengaged and
latched, reset bail should fully engage
notches in punch slides.
To Adjust
With clamp screw loosened, position reset
bail trip lever by means of adjusting slot.
Tighten clamp screw.
(Front View)
Page 125
