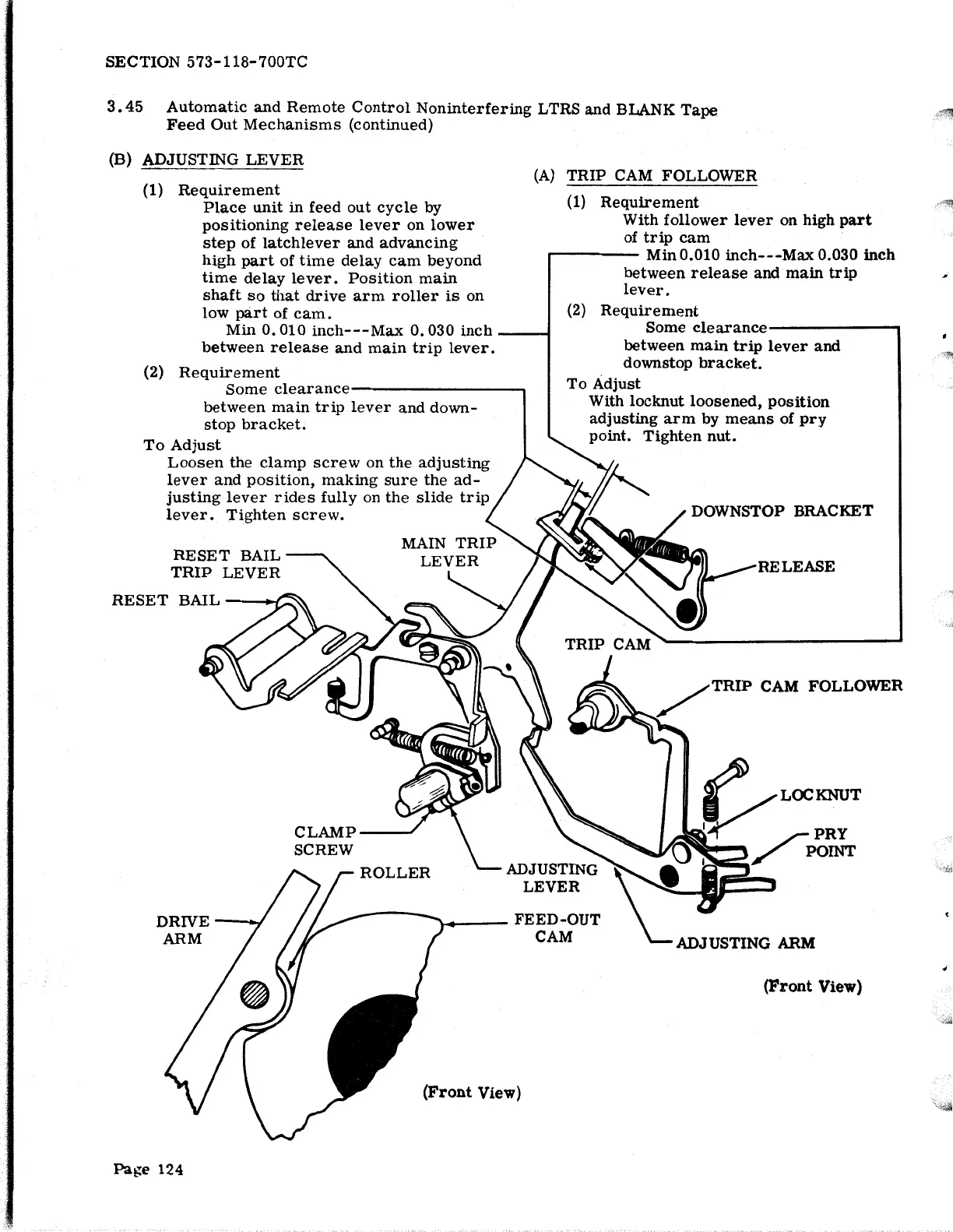

Teletype 28 - Page 124

SECTION 573-118-700TC
3.45
Automatic and Remote Control Noninterfering LTRS and BLANK Tape
Feed Out Mechanisms (continued)
(B) ADJUSTING
LEVER
(1) Requirement
Place unit in feed out cycle by
positioning release lever on lower
step of latchlever and advancing
high part of time delay cam beyond
time de lay lever. Position main
shaft so that drive arm roller is on
low
part of cam.
(A) TRIP CAM FOLLOWER
(1) Requirement
With follower lever on high part
of trip cam
r------ Min 0.010 inch---Max 0.030 inch
between release and main trip
lever.
(2) Requirement
Min 0. 010 inch---Max 0. 030 inch ---1
between release and main trip lever.
Some clearance-------,
between main trip lever and
downstop bracket.
(2) Requirement
Some clearance-----------.
between main trip lever and down-
stop bracket.
To Adjust
Loosen the clamp screw on the adjusting
lever and position, making sure the ad-
justing lever rides fully on the slide trip
lever. Tighten screw.
RESET BAIL
TRIP LEVER
RESET BAIL~
CLAMP---'
SCREW
To Adjust
With
locknut loosened, position
adjusting arm by means of pry
point. Tighten nut.
DOWNSTOP BRACKET
DRIVE~
')
4
FEED-OUT
ARM
CAM
(Front View)
(Front View)
Page 124
•
