3.43 Automatic and Remote Control Noninterfering LTRS and BLANK Tape
Feed Out Mechanisms (continued)

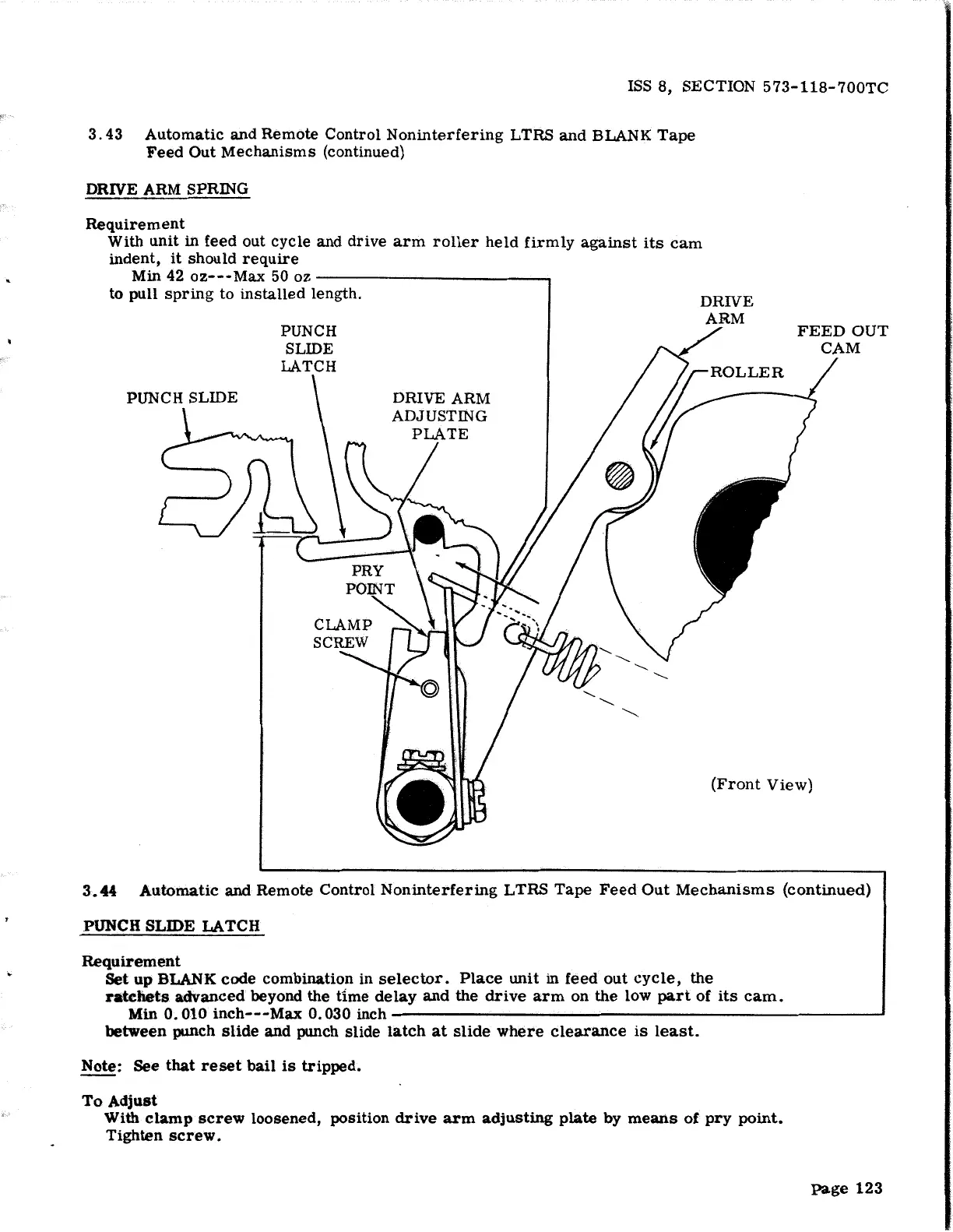

DRIVE ARM SPRING
Requirement
With unit in feed out cycle and drive arm roller held firmly against its cam
indent, it should require
Min 42 oz---Max 50 oz--------------..
to pull spring to installed length.
DRIVE ARM
ADJUSTING
PLATE
'-....
DRIVE
ARM
(Front View)
3.44 Automatic and Remote Control Noninterfering LTRS Tape Feed Out Mechanisms (continued)
PUNCH SLIDE LATCH
Requirement
Set up BLANK code combination in selector. Place unit in feed out cycle, the
ratchets advanced beyond the time delay and the drive arm on the low part of its cam.
Min 0. 010 inch---Max 0. 030 inch-------------------------'
between punch slide and punch slide latch at slide where clearance is least.
Note: See that reset bail is tripped.
To Adjust
With clamp screw loosened, position drive arm adjusting plate by means of pry point.
Tighten screw.
