ISS 8, SECTION 573-118-700TC

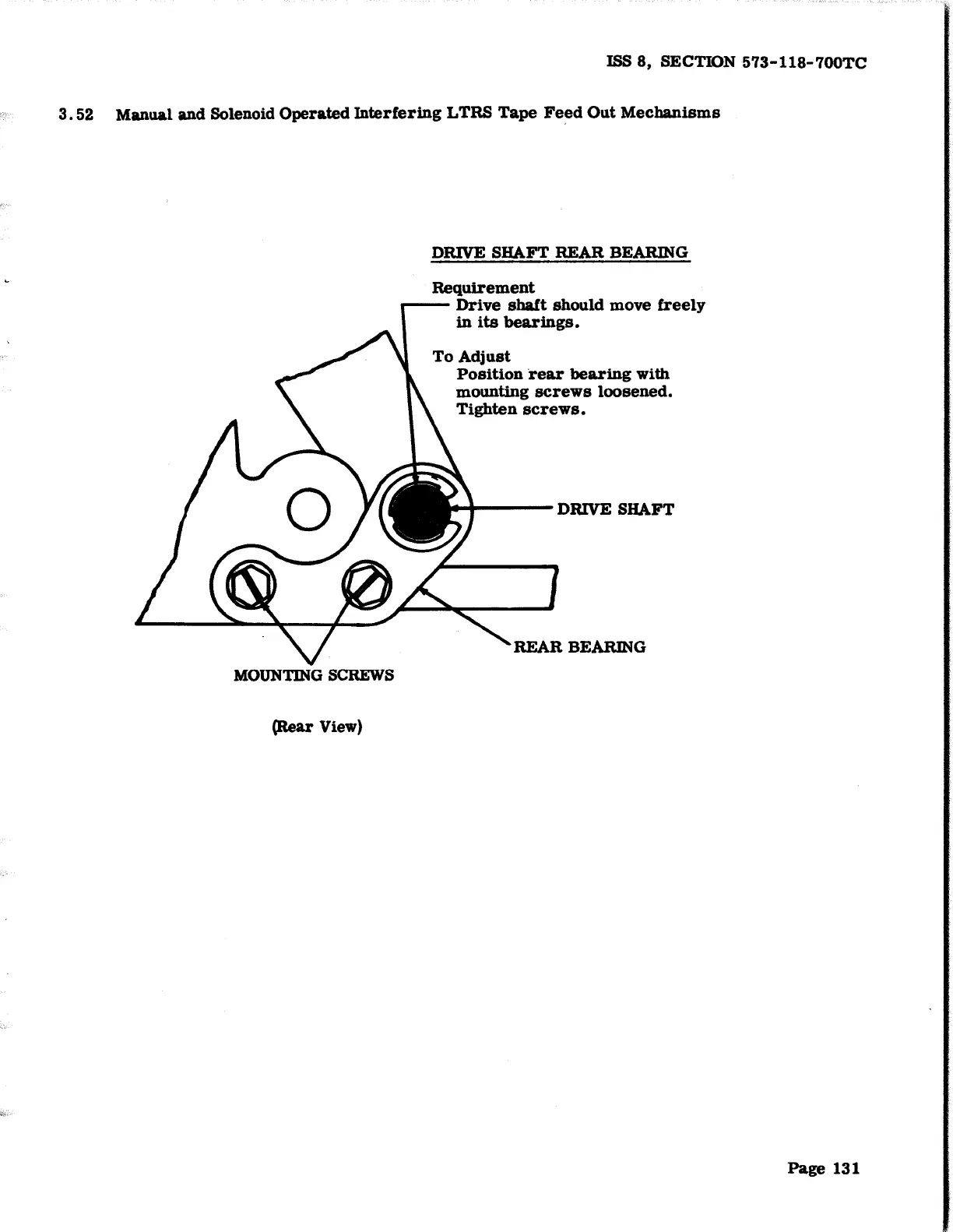

3. 52 Manual and Solenoid Operated Interfering LTRS Tape Feed Out Mechanisms
MOUNTING SCREWS
(Rear View)
DRIVE SHAFT REAR BEARING
Requirement
r--- Drive shaft should move freely
in its bearings.
To Adjust
Position ·rear bearing with
mounting
screws loosened.
Tighten screws.
~· I DRIVE SHAFT
Page 131
