Teletype 28 - Page 132

SECTION 573-118-700TC

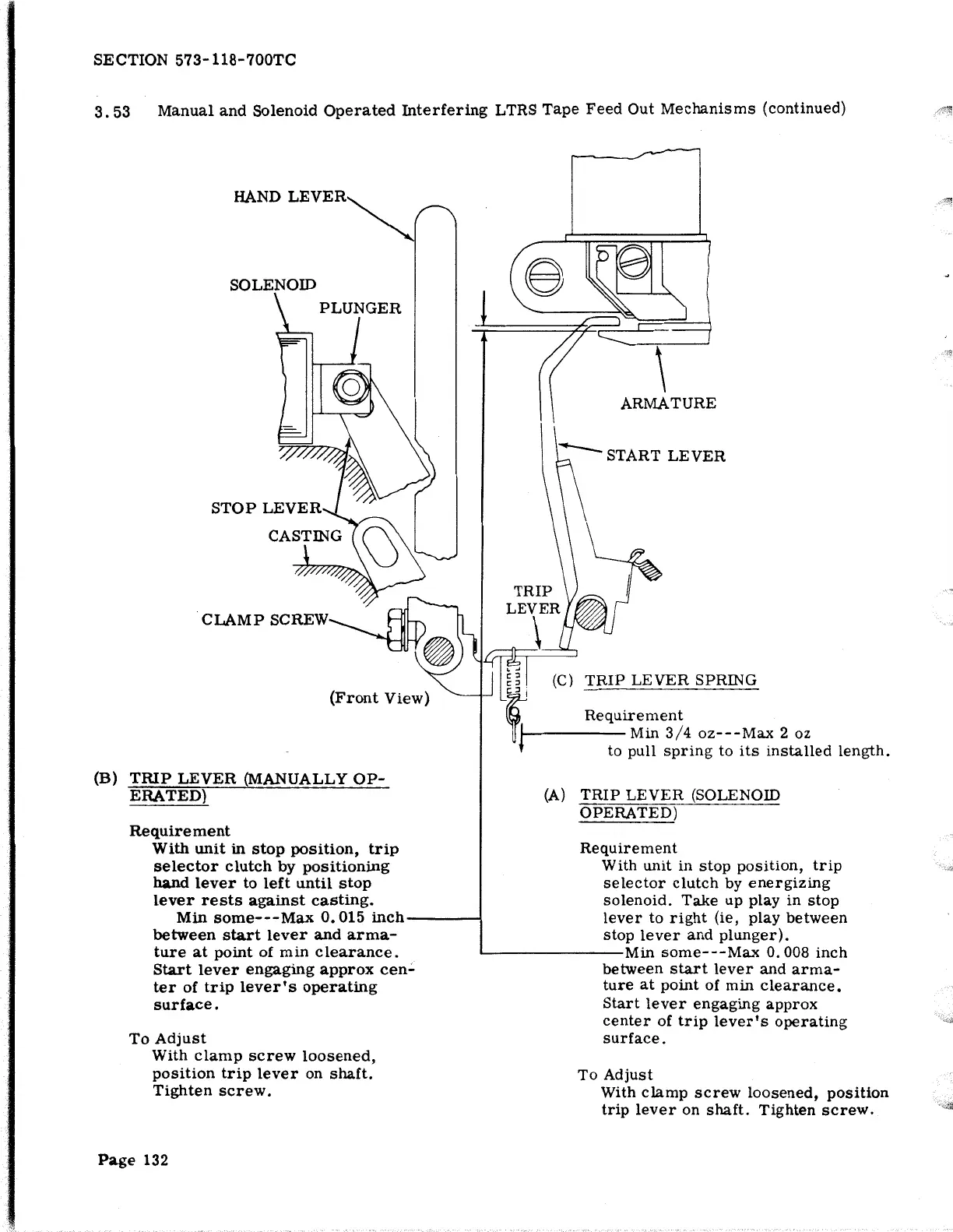

3. 53 Manual and Solenoid Operated Interfering LTRS Tape Feed Out Mechanisms (continued)
HAND
LEVER
(Front View)
(B) TRIP LEVER (MANUALLY OP-
ERATED)
Requirement
With unit in stop position, trip
selector clutch by positioning
hand lever to left until stop
lever rests against casting.
Min some---Max 0. 015 inch------!
between start lever and arma-
START LEVER
(C) TRIP LEVER SPRING
Requirement
-----Min 3/4 oz---Max 2 oz
to pull
spring to its installed length.
(A) TRIP LEVER (SOLENOID
OPERATED)
Requirement
With unit in stop position, trip
selector clutch by energizing
solenoid. Take up play in stop
lever to right (ie, play between
stop lever and plunger).
ture at point of min clearance.
Start lever engaging approx cen-
ter of trip lever's operating
L-..-------Min some---Max 0. 008 inch
surface.
To Adjust
With clamp screw loosened,
position trip lever on shaft.
Tighten screw.
Page 132
between start lever and arma-
ture at point of min clearance.
Start lever engaging approx
center of trip lever's operating
surface.
To Adjust
With clamp screw loosened, position
trip lever on shaft. Tighten screw.
