ISS 8, SECTION 573-118-700TC

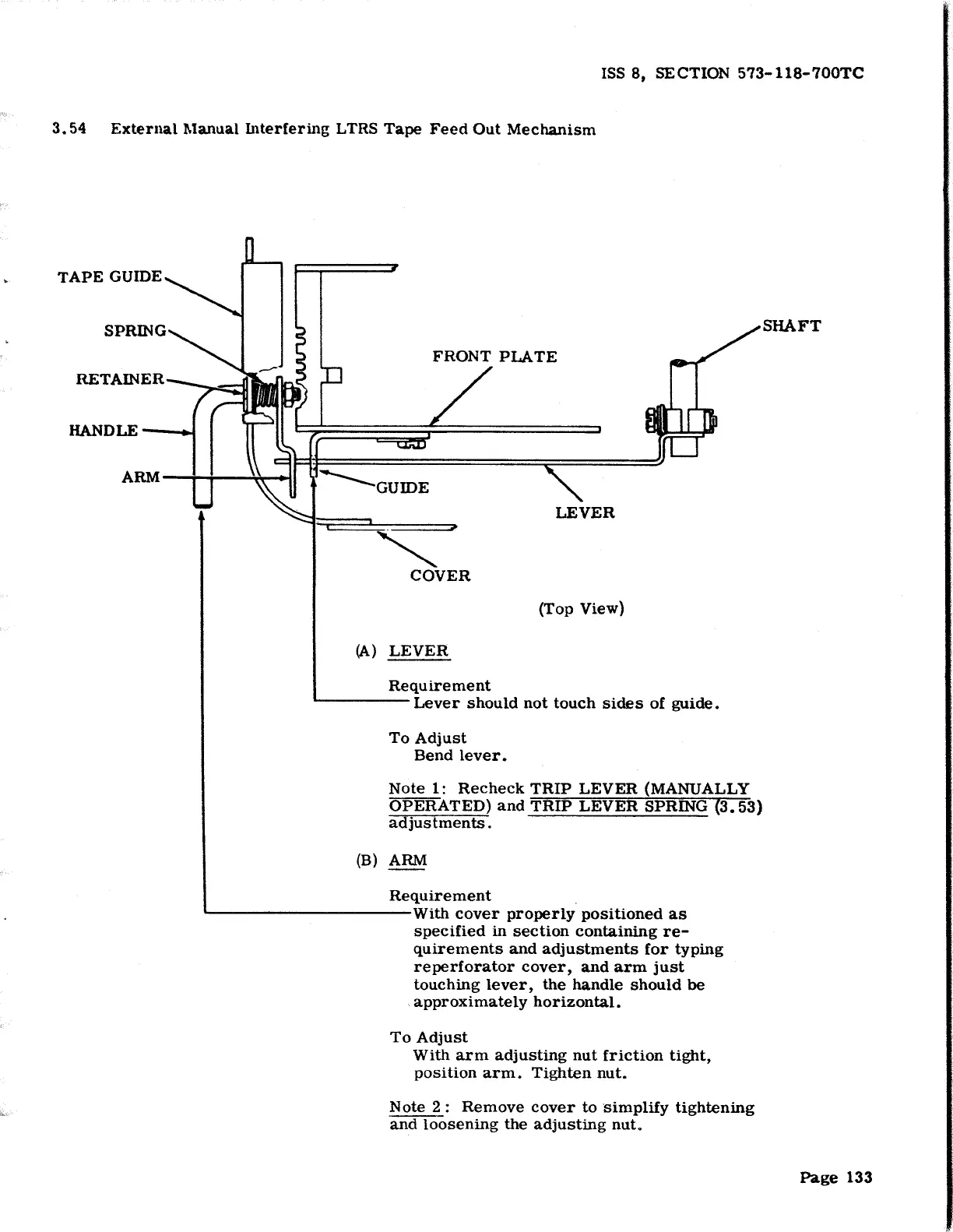

3. 54 External Manual Interfering L TRS Tape Feed Out Mechanism
TAPE GUIDE
FRONT PLATE
HANDLE .. a
ARM II \\•1
LEVER
COVER
(Top View)
(A) LEVER
Requirement
'------ Lever should not touch sides of guide.
To Adjust
Bend lever.
Note 1: Recheck TRIP LEVER (MANUALLY
OPERATED) and TRIP LEVER SPRING (3. 53)
adjustments.
(B) ARM
Requirement
'-------------With cover properly positioned as
specified in section containing re-
quirements and adjustments for typing
reperforator cover, and arm just
touching lever, the handle should be
approximately horizontal.
To Adjust
With arm adjusting nut friction tight,
position arm. Tighten nut.
Note 2 : Remove cover to simplify tightening
and loosening the adjusting nut.
SHAFT
