SECTION 573-118-700TC

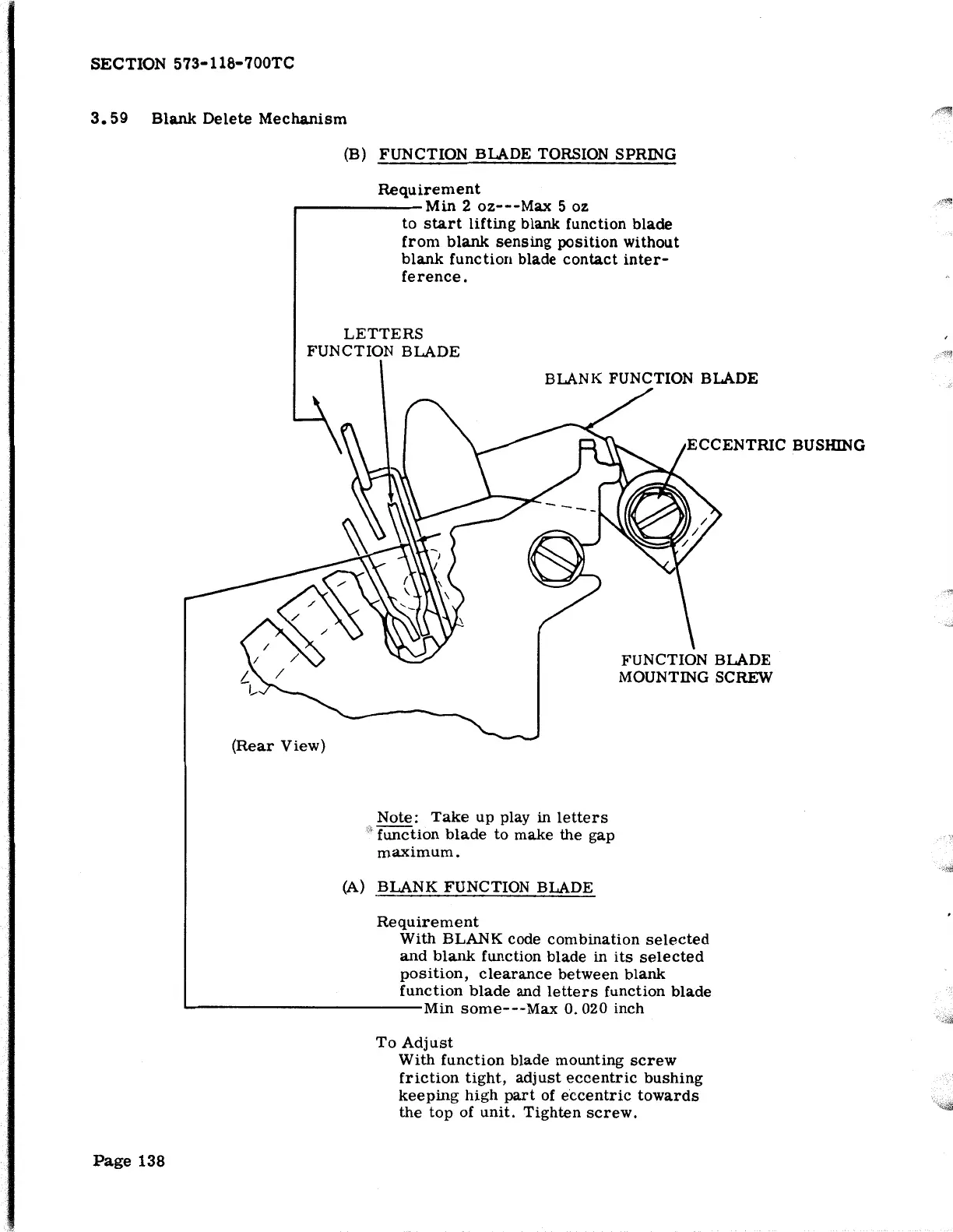

3. 59 Blank Delete Mechanism
Page 138
(B) FUNCTION BLADE TORSION SPR~G
Requirement
,--------Min 2 oz---Max 5 oz
to
start lifting blank function blade
from blank sensing position without
blank function blade contact inter-
ference.
LETTERS
FUNCTION BLADE
(Rear View)
BLANK FUNCTION BLADE
Note: Take up play in letters
function blade to make the gap
maximum.
(A) BLANK FUNCTION BLADE
Requirement
ECCENTRIC BUSHING
FUNCTION BLADE
MOUNT~G SCREW
With BLANK code combination selected
and blank function blade in its selected
position, clearance between blank
function blade and letters function blade
L-------------Min some---Max 0.020 inch
To Adjust
With function blade mounting screw
friction tight, adjust eccentric bushing
keeping high part of eccentric towards
the top of unit. Tighten screw.
