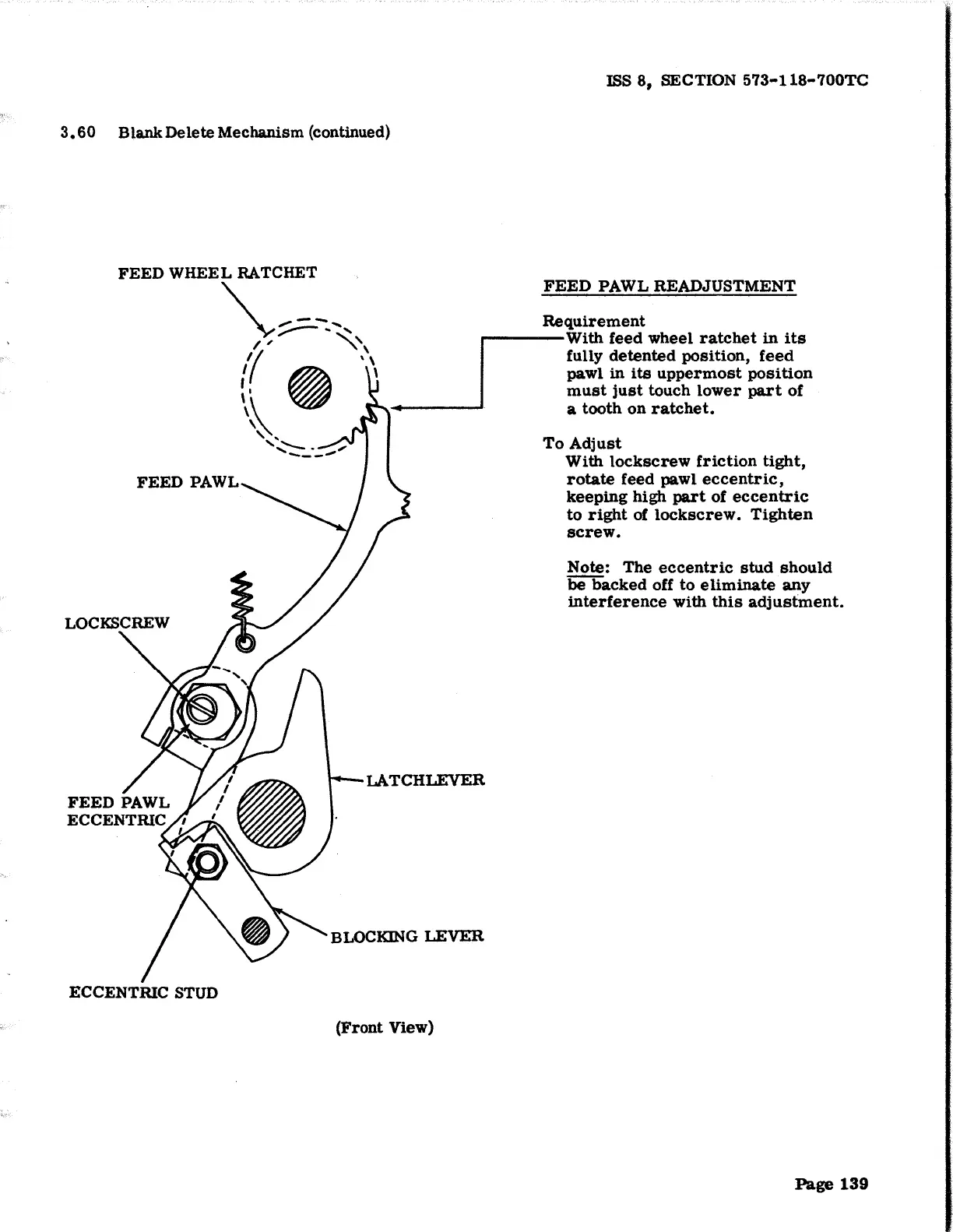

Teletype 28 - 3.59 Blank Delete Mechanism

ISS 8, SECTION 573-118-700TC
3.60 Blank Delete Mechanism (continued)
FEED WHEEL RATCHET FEED PAWL READJUSTMENT
"' - - Requirement
FEED PAWL
ECCENTRIC STUD
"\,/-- -~. With feed wheel ratchet in its
1
/' "~' I fully detented position, fe~~
1 ~ ~\ pawl in its uppermost pos1tion
I must just touch lower part of
\\ • · a tooth on ratchet.
' '
'~-~ ......
BLOCKJNG LEVER
(Front View)
To Adjust
With lockscrew friction tight,
rotate feed pawl eccentric,
keeping high part of eccentric
to right of lockscrew. Tighten
screw.
Note: The eccentric stud should
be backed off to eliminate any
interference with this adjustment.
Page 139
