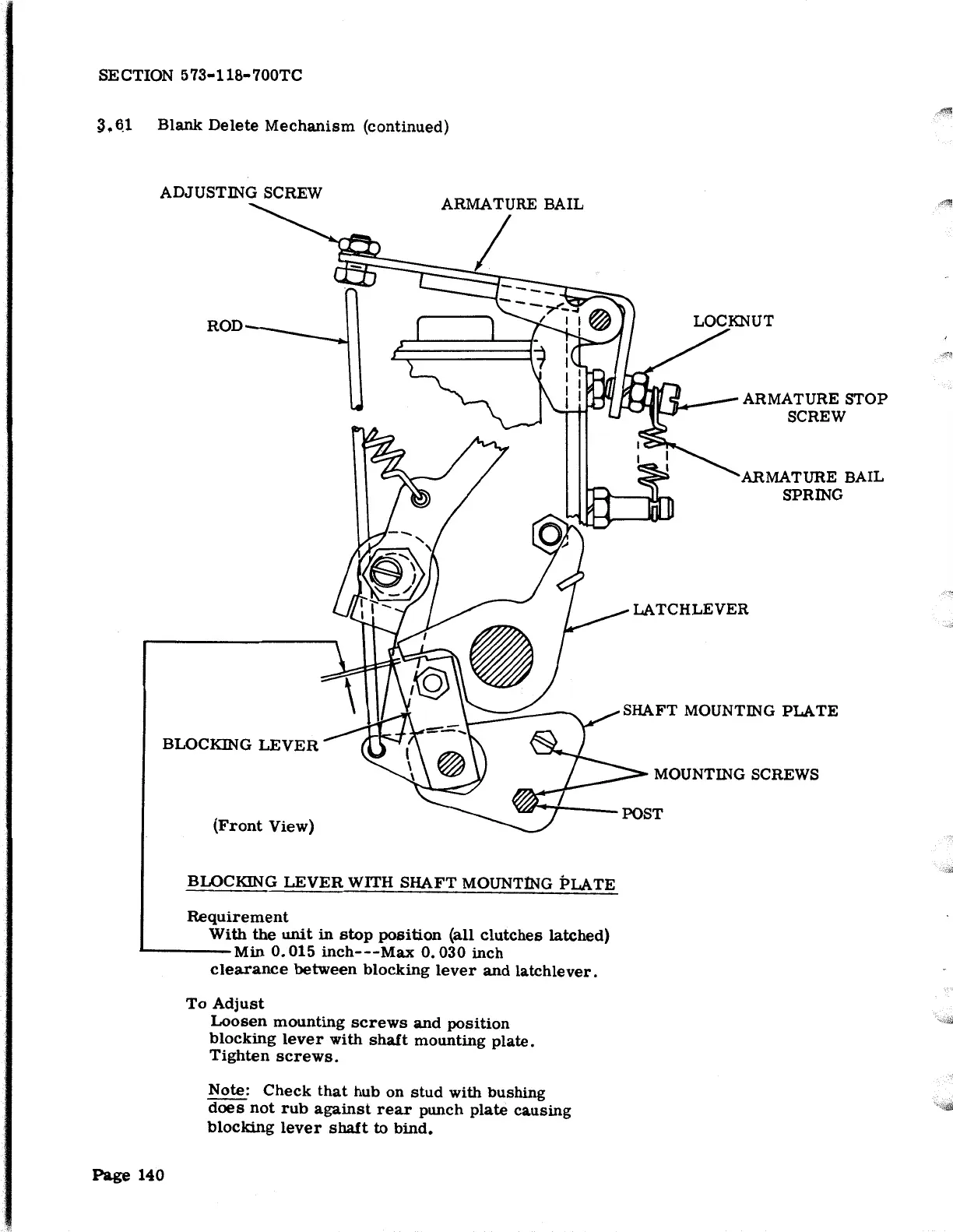

SECTION
573·118•700TC
a.
~1
Blank
Delete
Mechanism
(continued)
ADJUSTING SCREW
ARMATURE BAIL
I
ROD
BLOCKING
LEVER
ARMATURE STOP
SCREW
ARMATURE BAIL
SPRING
SHAFT MOUNTING
PLATE
MOUNTING SCREWS
(Front
View)
~
l POST
BLOCKING
LEVER
WITH
SHAFT
MOUNTlNG FLA
TE
Requirement
With
the
unit
in
stop
position
(all
clutches
latched)
.__----Min
0.
015
inch---Max
0. 030
inch
Page
140
clearance
between
blocking
lever
and
latchlever.
To
Adjust
Loosen
mounting
screws
and
position
blocking
lever
with
shaft
mounting
plate.
Tighten
screws.
Note:
Check
that
hub
on
stud
with
bushing
does
not
rub
against
rear
punch
plate
causing
blocking
lever
shaft
to
bind.
