Teletype 28 - Page 141

ISS 8, SECTION 573-118-700TC

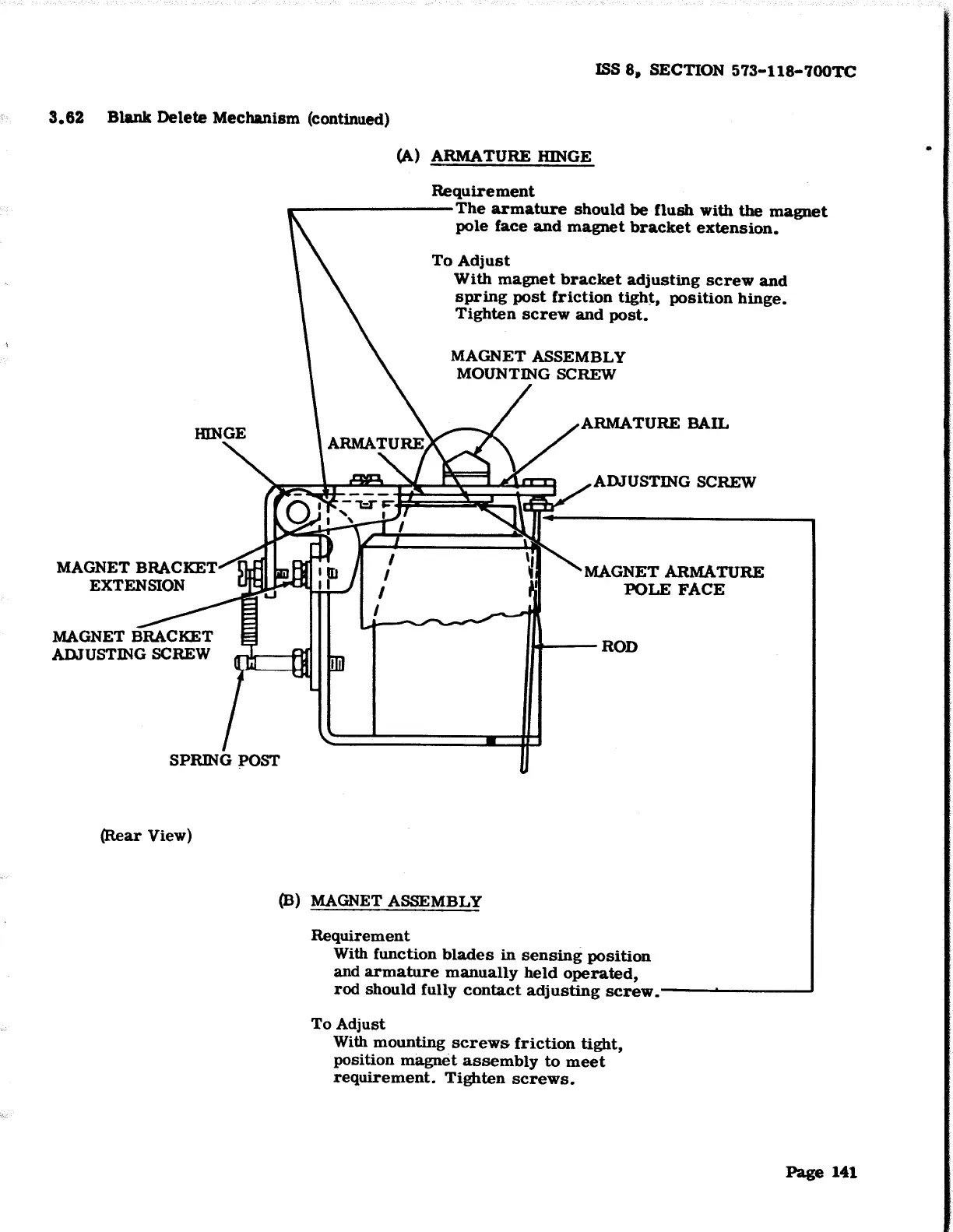

3.62 Blank Delete Mechanism (continued)
MAGNET
BRACKET
EXTENSION
MAGNET
BRACKET
ADJUSTING SCREW
SPRING POST
(Rear View)
(A) ARMATURE HINGE
Requirement
--------The armature should be flush with the magnet
pole face and magnet bracket extension.
To Adjust
With magnet bracket adjusting screw and
spring post friction tight, position hinge.
Tighten screw and post.
MAGNET ASSEMBLY
MOUNTING SCREW
ARMATURE BAIL
ADJUSTING SCREW
MAGNET ARMATURE
POLE FACE
II. ROD
(B) MAGNET ASSEMBLY
Requirement
With function blades in sensing position
and armature manually held operated,
rod should fully contact adjusting screw ___ ___, ____ __,
To Adjust
With mounting screws friction tight,
position magnet assembly to meet
requirement. Tighten screws.
Page 141
•
