SECTION 573-118-700TC

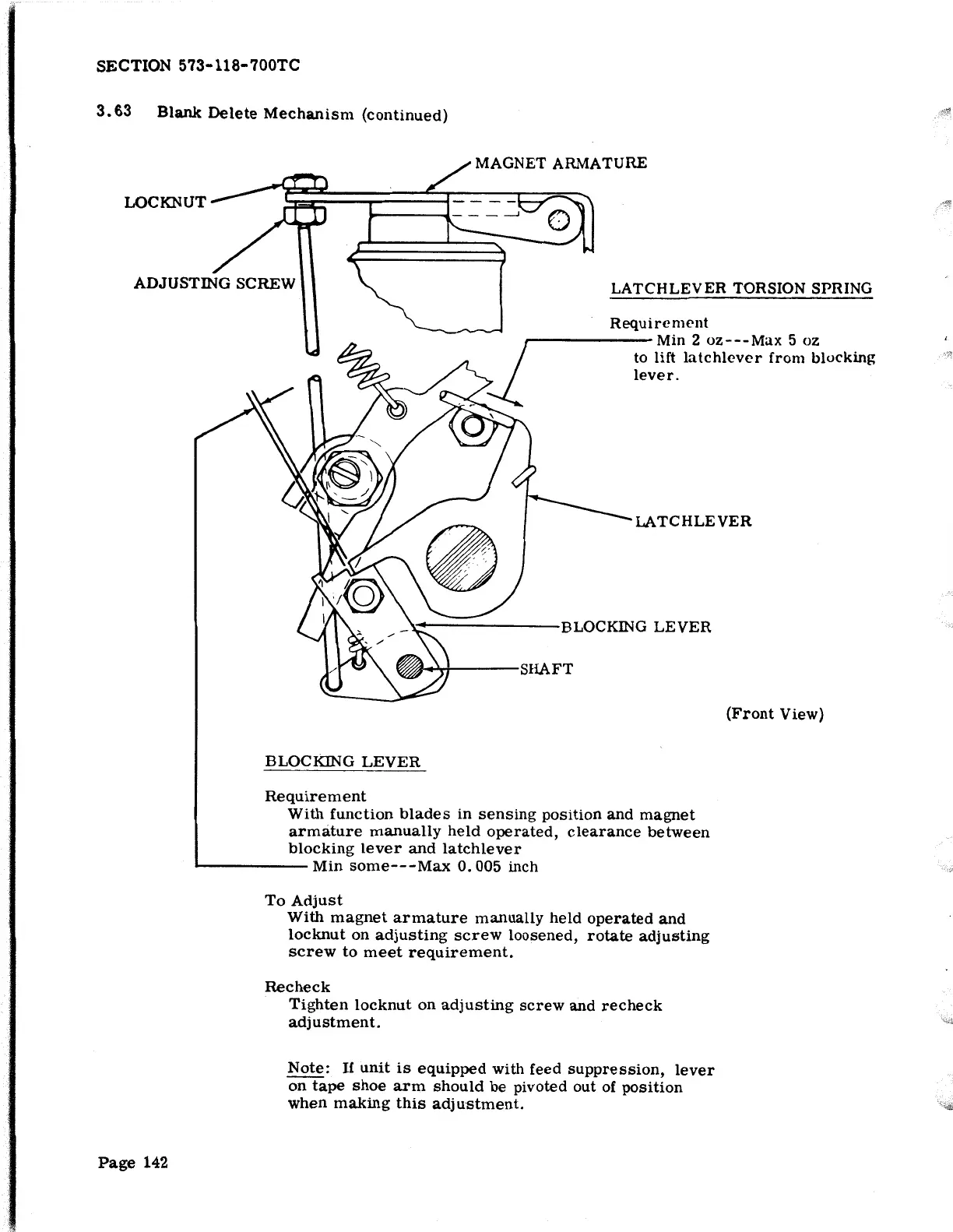

3.63 Blank Delete Mechanism (continued)
MAGNET ARMATURE
LOCKNUT
ADJUSTING SCREW
LATCHLEVER TORSION SPRING
Page 142
Requirement
,-------Min 2 oz---Max 5 oz
to lift
latchlcvcr from blocking
lever.
LATCHLEVER
\c BLOCKING LEVER
:i .. ',l SHAFT
BLOCKING LEVER
Requirement
With function blades in sensing position and magnet
armature manually held operated, clearance between
blocking lever and latchlever
L------Min some---Max 0.005 inch
To Adjust
With magnet armature manually held operated and
locknut on adjusting screw loosened, rotate adjusting
screw to meet requirement.
Recheck
Tighten locknut on adjusting screw and recheck
adjustment.
Note: If unit is equipped with feed suppression, lever
on tape shoe arm should be pivoted out of position
when making this adjustment.
(Front View)
