ISS 8, SECTION 573-118-700TC

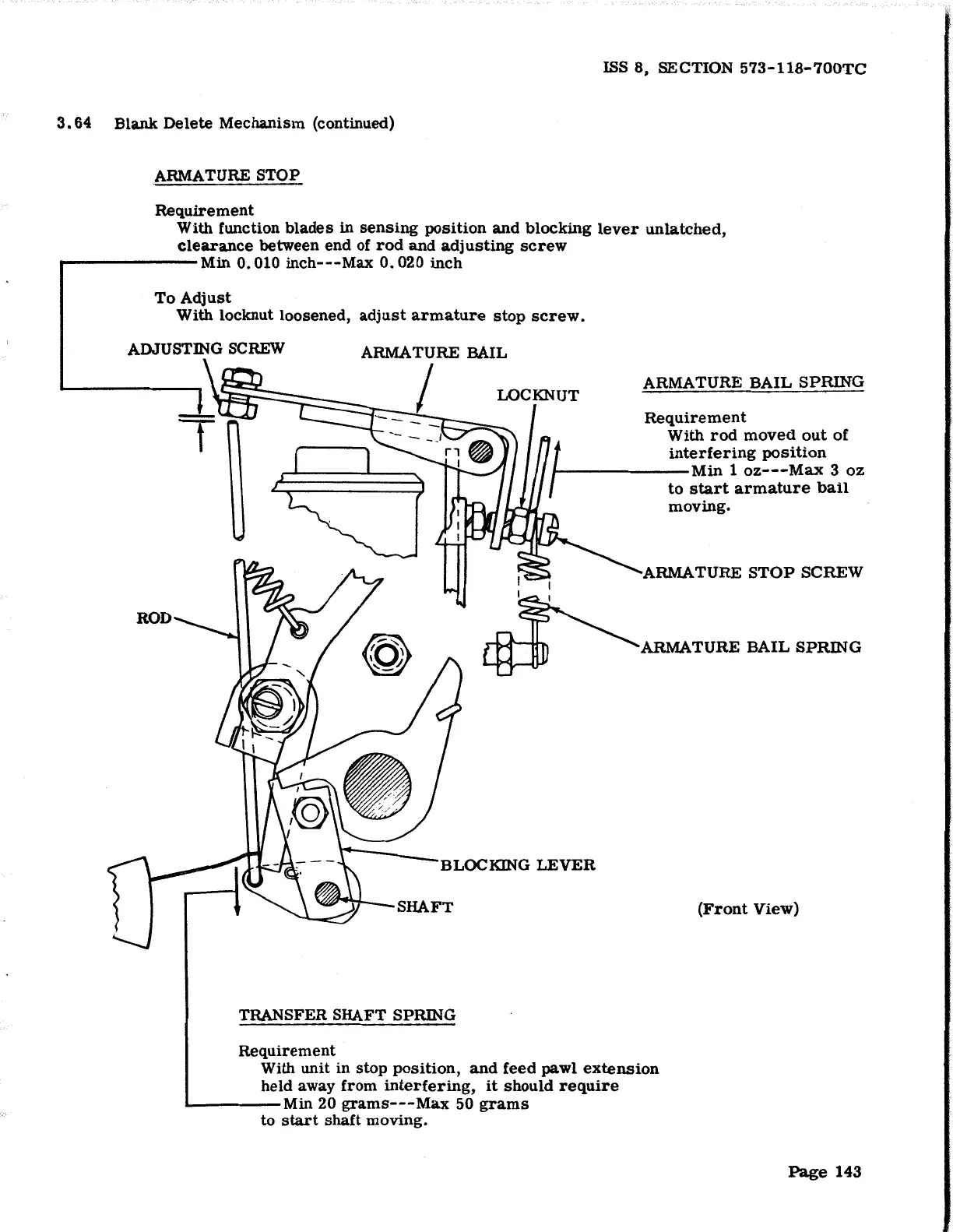

3. 64 Blank Delete Mechanism (continued)
ARMATURE STOP
Requirement
With function blades in sensing position and blocking lever unlatched,
clearance between end of rod and adjusting screw
...-------Min 0. 010 inch---Max 0. 020 inch
To Adjust
With locknut loosened,
adjust armature stop screw.
ADJUSTING SCREW
ARMATURE BAIL
I
@
ARMATURE BAIL SPRING
Requirement
With rod moved out of
interfering position
1-------Min 1 oz---Max 3 oz
to start armature bail
moving.
ARMATURE STOP SCREW
ARMATURE BAIL SPRING
BLOCKING LEVER
TRANSFER SHAFT SPRING
Requirement
With unit in stop
position, and feed pawl extension
held away from interfering, it should require
L-----Min 20 grams---Max 50 grams
to start shaft moving.
(Front View)
Page 143
