SECTION 573-118-700TC

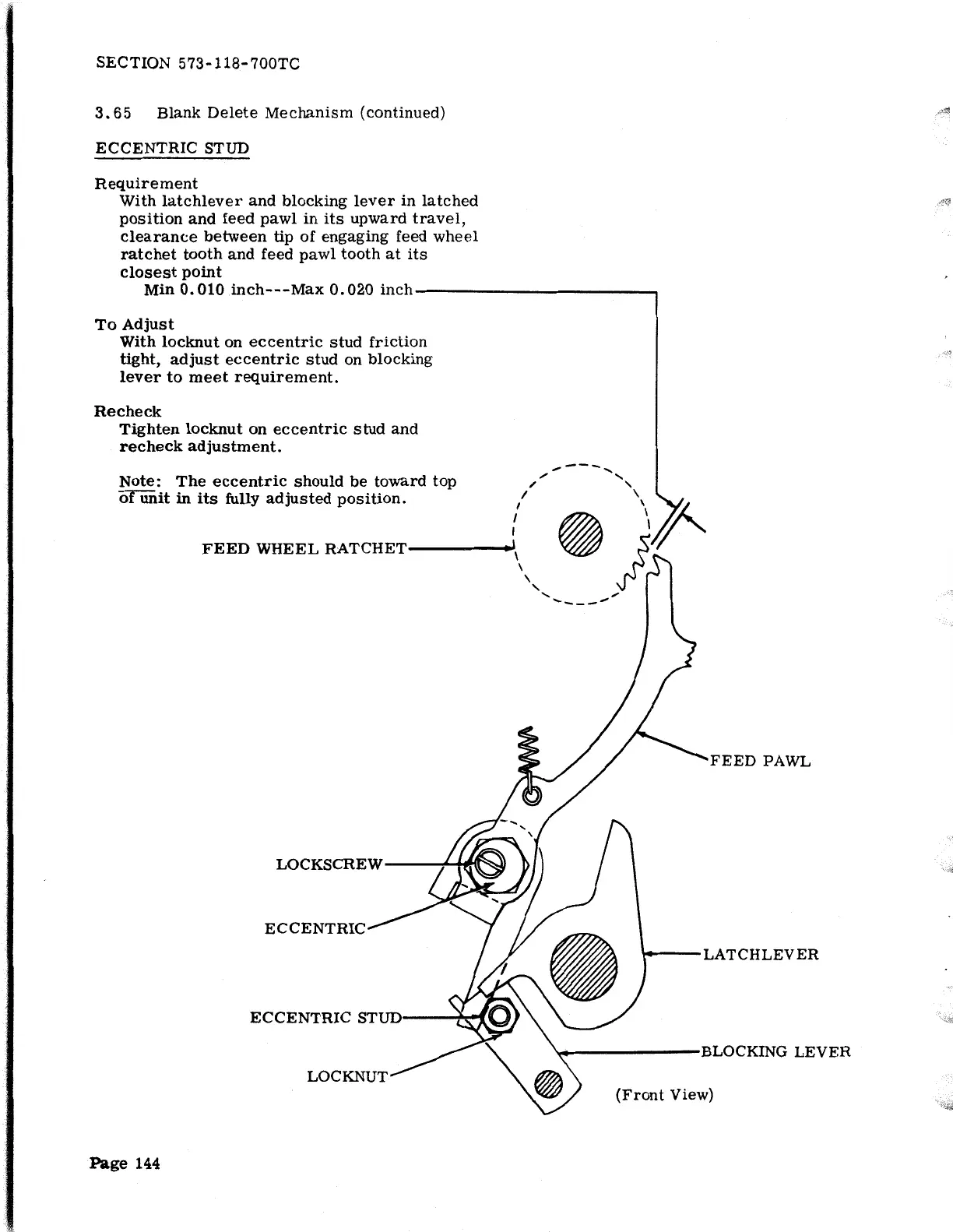

3.65 Blank Delete Mechanism (continued)
ECCENTRIC STUD
Requirement
With latchlever and blocking lever in latched
position and feed pawl in its upward travel,
clearance between tip of engaging feed wheel
ratchet tooth and feed pawl tooth at its
closest point
Min 0.010 inch---Max 0.020 inch-------------.
To Adjust
With locknut on eccentric stud friction
tight, adjust eccentric stud on blocking
lever to meet requirement.
Recheck
Tighten locknut on eccentric stud and
recheck adjustment.
Note: The eccentric should be toward top
---
., ......
, '
/ '
of unit in its fully adjusted position.
I \
FEED WHEEL RATCHET (, ~ )7'
', ~r
' ..,
..... ___ ..,.
FEED PAWL
LOCKSCREW /
hf~
ECCENTRIC
t----LATCHLEVER
ECCENTRIC STUD ;l,•f
"-------BLOCKING LEVER
LOCKNUT
(Front View)
Page 144
