3. 68 Manual Print Suppression Mechanism

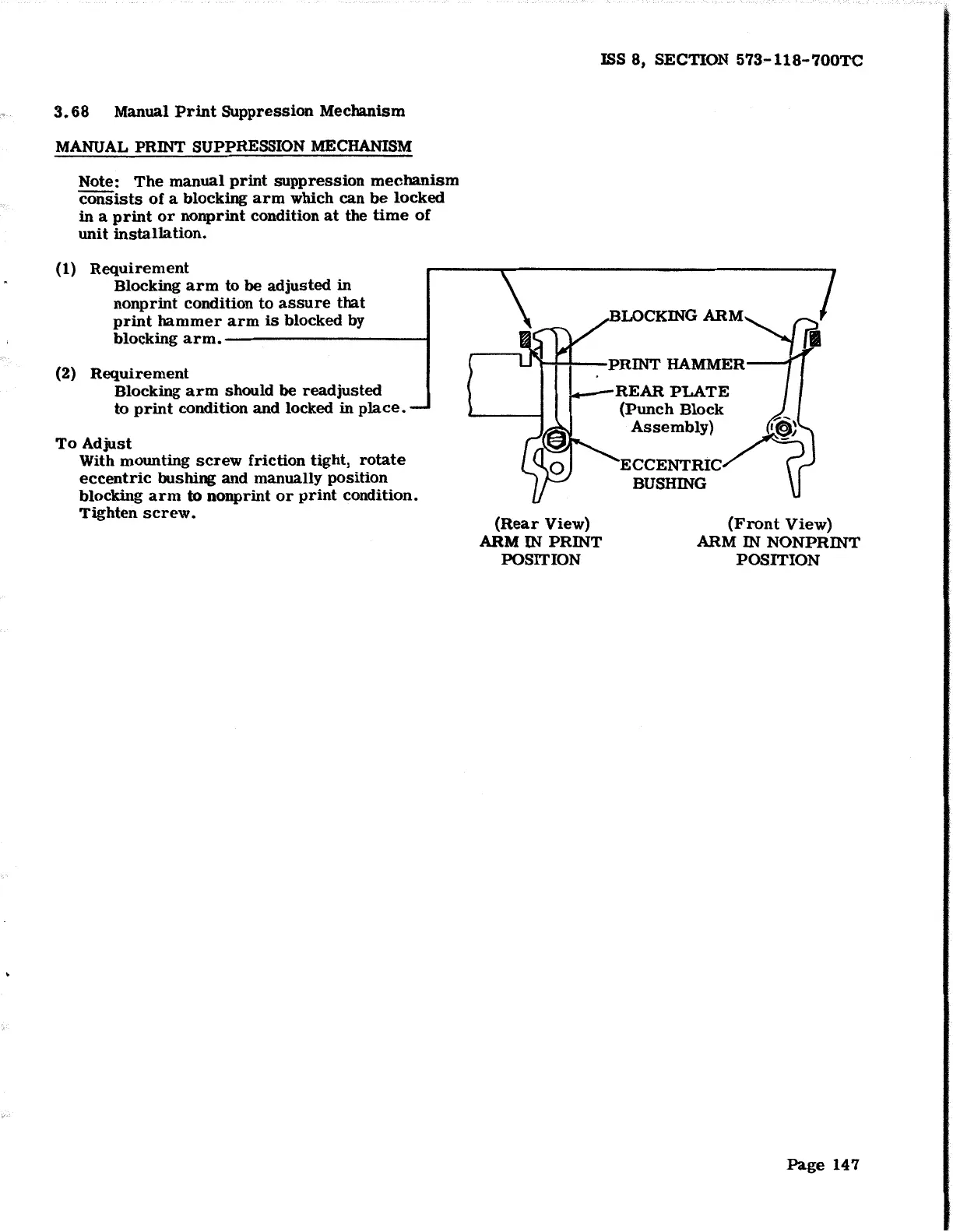

MANUAL PRINT SUPPRESSION MECHANISM
Note:
The manual print suppression mechanism
consists of a blocking arm which can be locked
in a print or nonprint condition at the time of
unit installation.
(1) Requirement
Blocking arm to be adjusted in
nonprint condition to assure that
print hammer arm is blocked by
blocking arm.------------1
(2) Requirement
Blocking arm should be readjusted
to print condition and locked in place.
To Adjust
With mounting screw friction tight, rotate
eccentric bushing and manually position
blocking arm to nonprint or print condition.
Tighten screw.
ISS 8, SECTION 573-118-700TC
'i ! I PRINT HAMMER
(Rear View)
ARM
IN PRINT
POSITION
REAR PLATE
(Punch Block
Assembly}
ECCENTRIC
BUSHING
(Front View)
ARM IN NONPRINT
POSITION
Page 147
