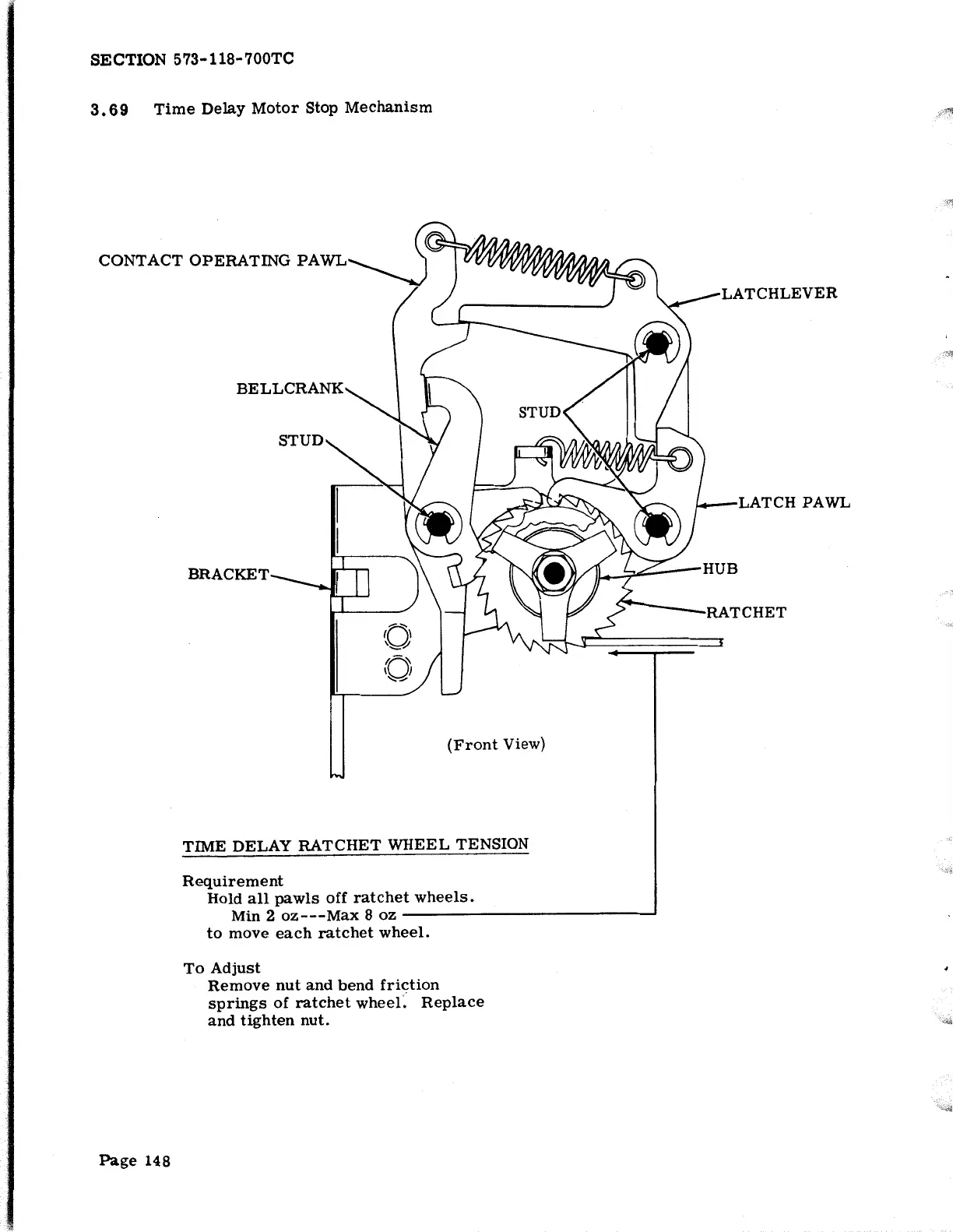

3.69 Time Delay Motor Stop Mechanism
CONTACT OPERATING PA
Page 148
(Front View)
TIME DELAY RATCHET WHEEL TENSION
Requirement
Hold all pawls off ratchet wheels.
Min 2 oz---Max 8 oz --------------'
to move each ratchet wheel.
To Adjust
Remove nut and bend friction
springs of ratchet wheeL Replace
and tighten nut.
LATCHLEVER
LATCH PAWL
