SECTION 573-11B-700TC

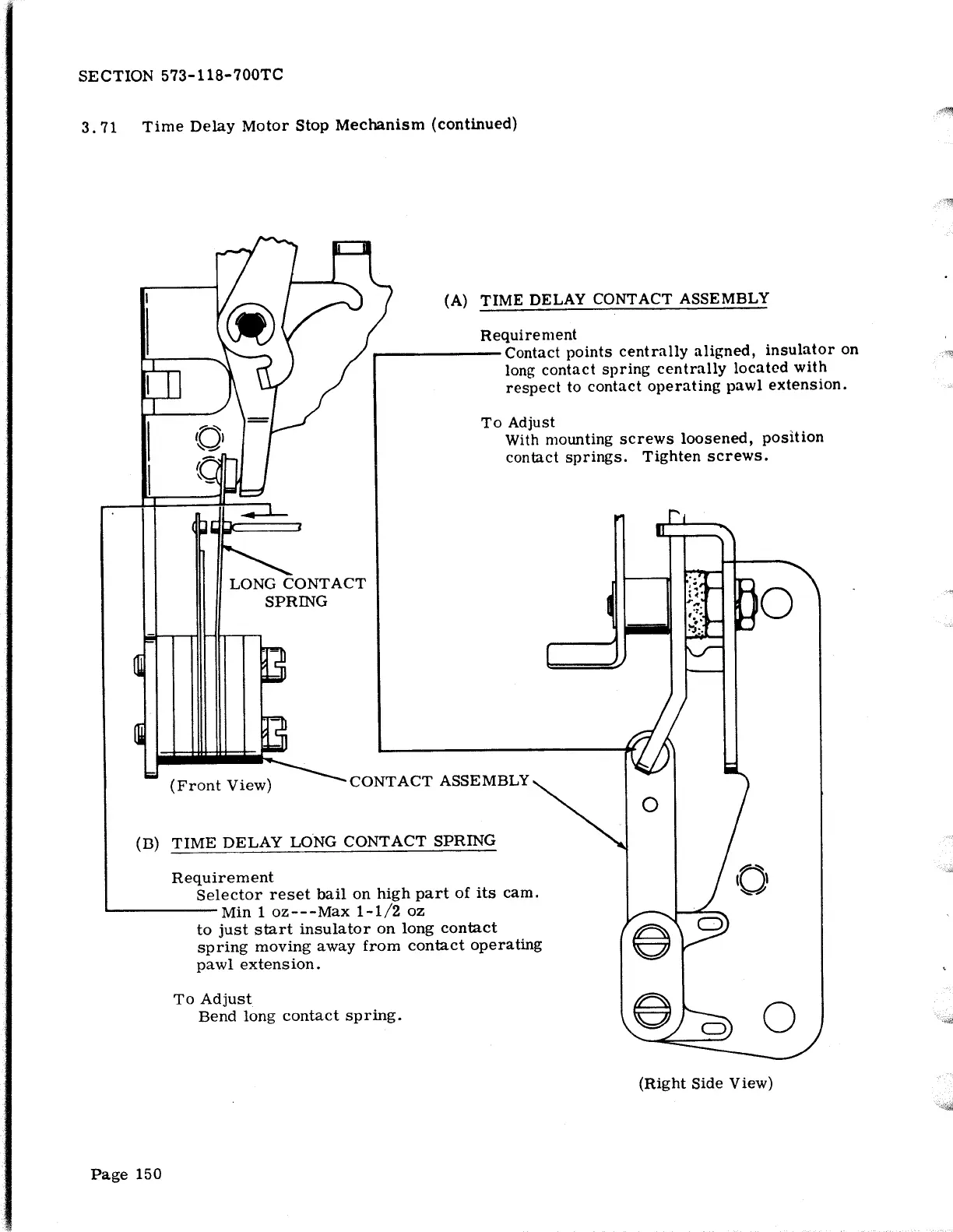

3. 71 Time Delay Motor Stop Mechanism (continued)
LONG CONTACT
SPRING
(A) TIME DELAY CONTACT ASSEMBLY
Requirement
.--------Contact points centrally aligned, insulator on
long
contact spring centrally located with
respect to contact operating pawl extension.
To Adjust
With mounting
screws loosened, position
contact springs. Tighten screws.
(Front View)
CONTACT ASSEMBLY
(ll) TIME DELAY LONG CONTACT SPRING
Requirement
Selector reset bail on high part of its cam .
.__
_____ Min 1 oz---Max 1-1/2 oz
Page 150
to just start insulator on long contact
spring moving away from contact operating
paw 1 extension.
To Adjust
Bend long contact spring.
(Right Side View)
