ISS 8, SECTION 573-118-700TC

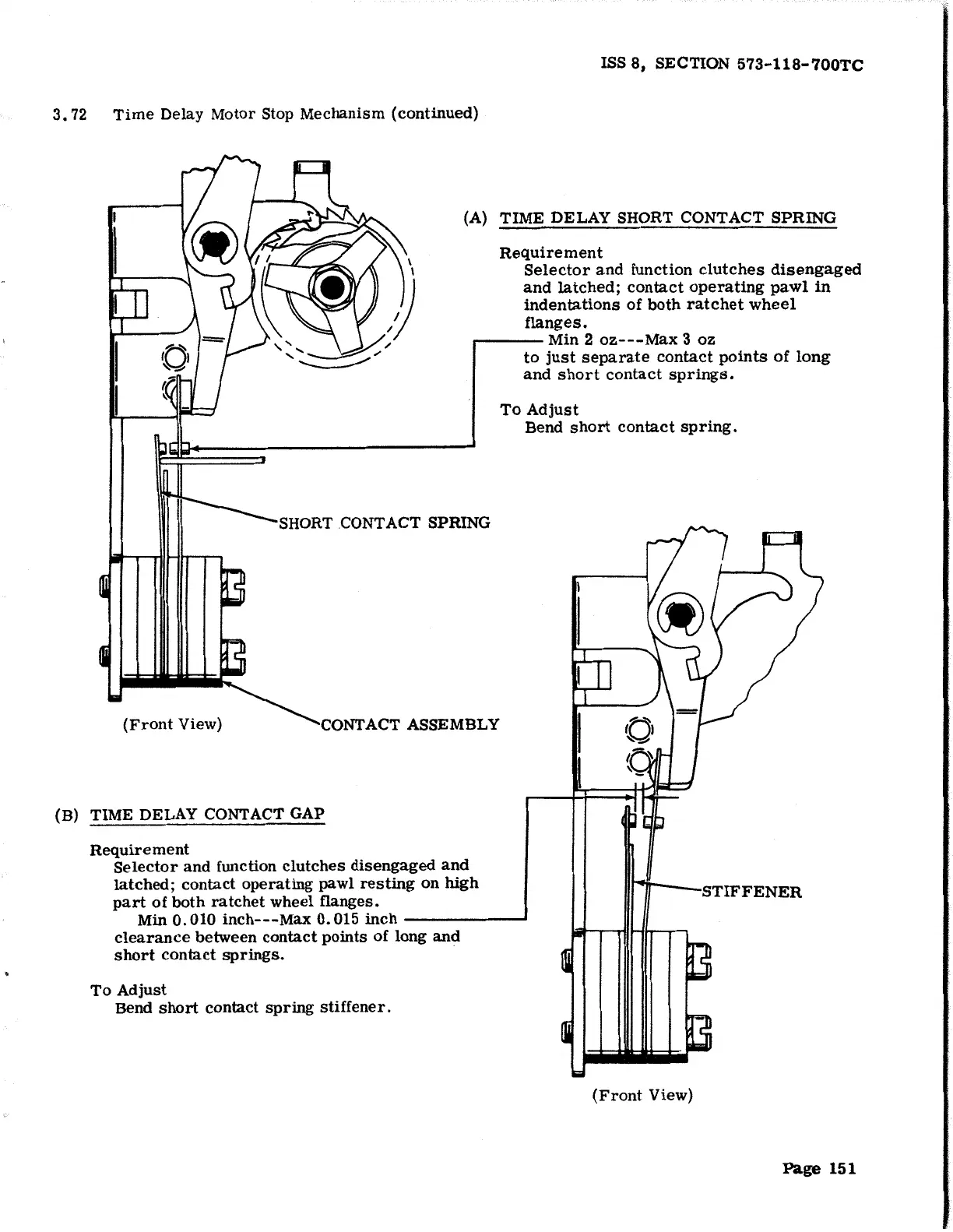

3. 72 Time Delay Motor Stop Mechanism (continued)
(A) TIME DELAY SHORT CONTACT SPRING
\
I
Requirement
Selector and function clutches disengaged
and latched; contact operating pawl in
indentations of both ratchet wheel
flanges.
---- Min 2 oz---Max 3 oz
SHORT CONTACT SPRING
(Front View)
CONTACT ASSEMBLY
(B) TIME DELAY CONTACT GAP
Requirement
Selector and function clutches disengaged and
latched; contact operating pawl resting on high
part of both ratchet wheel flanges.
to just separate contact points of long
and short contact springs.
To Adjust
Bend short contact spring.
Min 0.010 inch---Max 0.015 inch -----.......J
clearance between contact points of long and
short contact springs.
To Adjust
Bend short contact spring stiffener.
(Front View)
Page 151
