SECTION 573-118·700TC
3. 73 Time Delay Motor Stop Mechanism (continued}
CONTACT
OPERATING
PAWL
Page 152
(Front View)

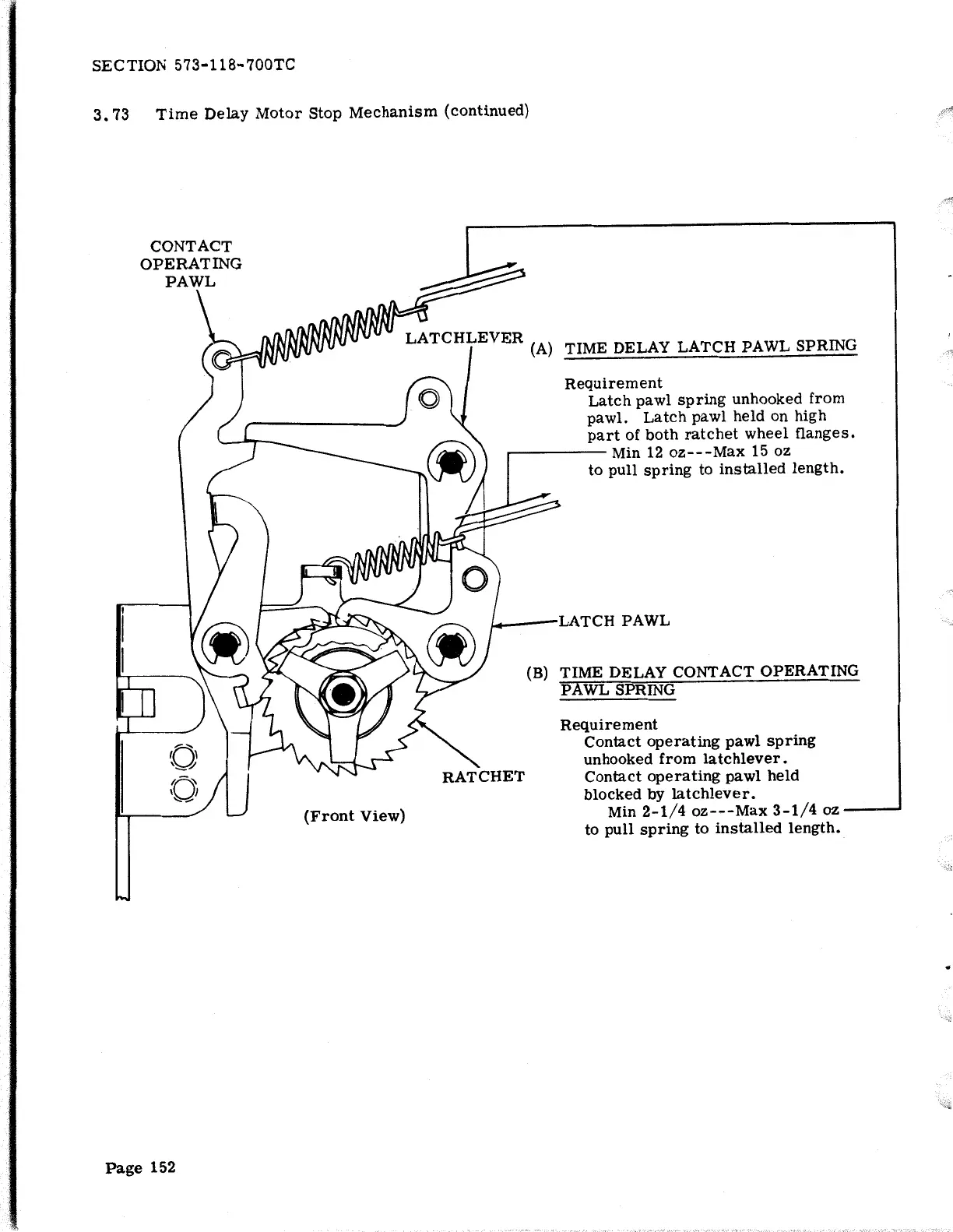

TIME DELAY LATCH PAWL SPRING
Requirement
Latch pawl spring unhooked from
pawl. Latch pawl held on high
part of both ratchet wheel flanges •
...-----Min 12 oz---Max 15 oz
to pull spring to installed length.
1... LATCH PAWL
(B) TIME DELAY CONTACT OPERATING
PAWL SPRING
Requirement
Contact operating pawl spring
unhooked from latchlever.
Contact operating pawl held
blocked by I.atchlever.
Min 2-1/4 oz---Max 3-1/4 oz ---'
to pull spring to installed length.
..
