SECTION 573-118-700TC

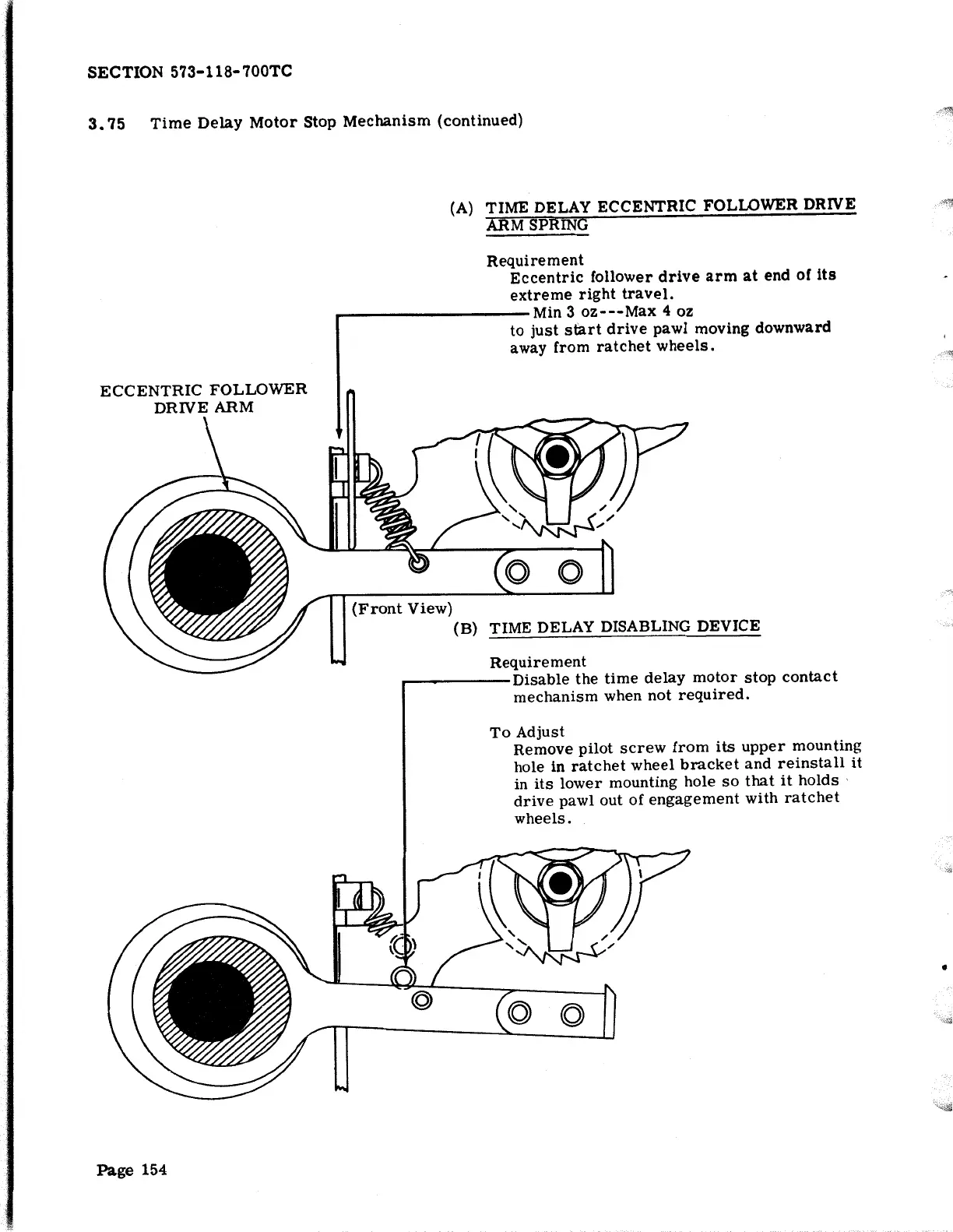

3. 75 Time Delay Motor Stop Mechanism (continued)
ECCENTRIC FOLLOWER
DRIVE ARM
Page 154
(A) TIME DELAY ECCENTRIC FOLLOWER DRIVE
ARM SPRING
Requirement
Eccentric follower drive arm at end of its
extreme right travel.
...----------Min 3 oz---Max 4 oz
(Front View)
to
just start drive pawl moving downward
away from
ratchet wheels.
0
(B) TIME DELAY DISABLING DEVICE
Requirement
------Disable the time delay motor stop contact
mechanism when not required.
To Adjust
Remove
pilot screw from its upper mounting
hole in
ratchet wheel bracket and reinstall it
in its lower mounting hole so that it holds ·
drive pawl out of engagement with ratchet
wheels.
©
•
