ISS 8, SECTION 573-118-700TC

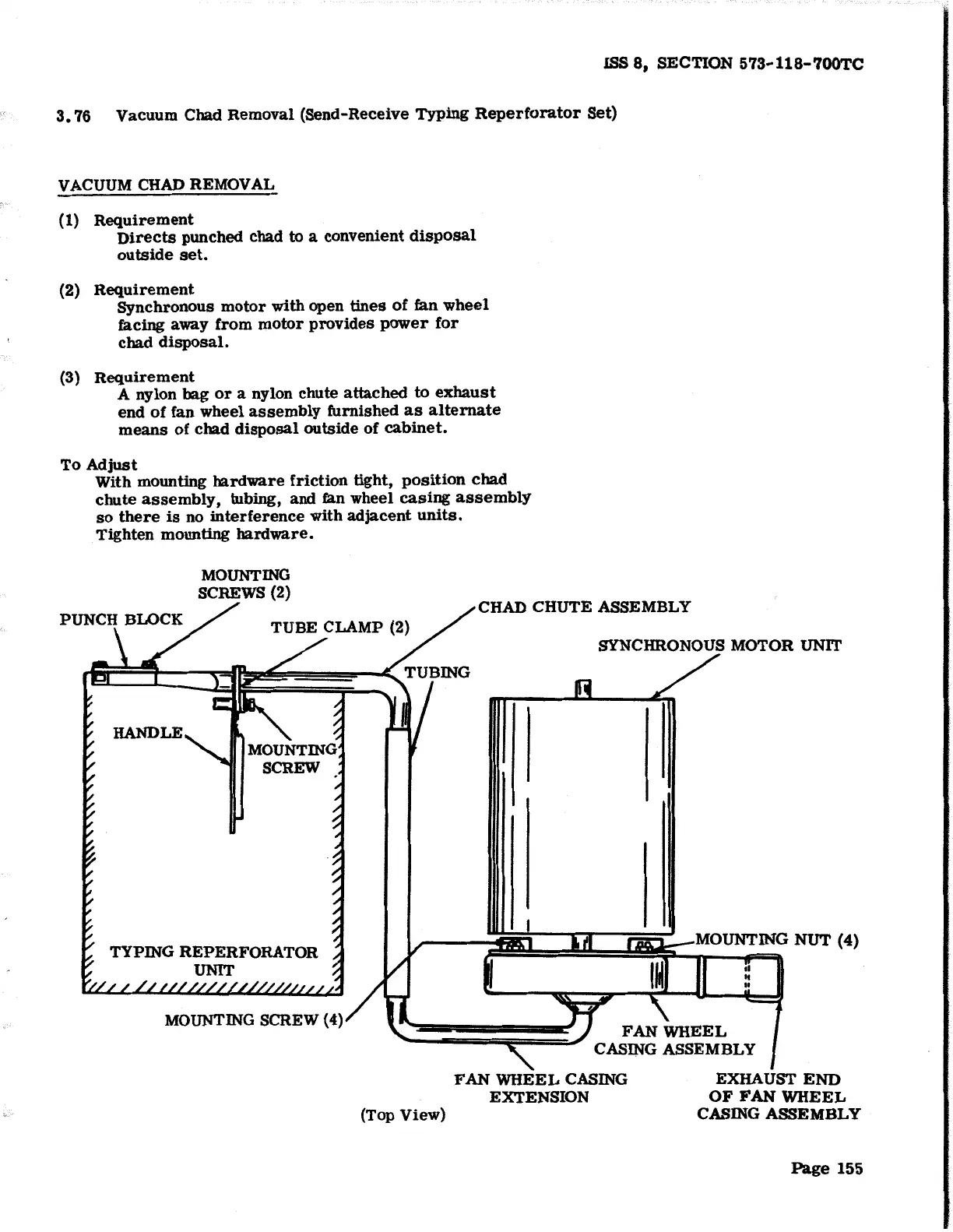

3. 76 Vacuum Chad Removal (Send-Receive Typing Reperforator Set)
VACUUM CHAD REMOVAL
(1)
Requirement
Directs punched chad to a convenient disposal
outside set.
(2) Requirement
Synchronous motor with open tines of fan wheel
facing away from motor provides power for
chad disposal.
(3) Requirement
A nylon bag or a nylon chute attached to exhaust
end of fan wheel assembly furnished as alternate
means of chad disposal outside of cabinet.
To Adjust
With mounting hardware friction tight, position chad
chute assembly, tubing, and fan wheel casing assembly
so there is no interference with adjacent units.
Tighten mounting hardware.
MOUNTING
SCREWS (2)
CHAD CHUTE ASSEMBLY
TYPING REPERFORATOR
UNIT
MOUNTING SCREW (4)
(Top View)
SYNCHRONOUS MOTOR UNIT
FAN WHEEL
CASING ASSEMBLY
FAN WHEEL CASING
EXTENSION
EXHAUST
END
OF FAN WHEEL
CASING ASSEMBLY
Page 155
