SECTION 573-118-700TC

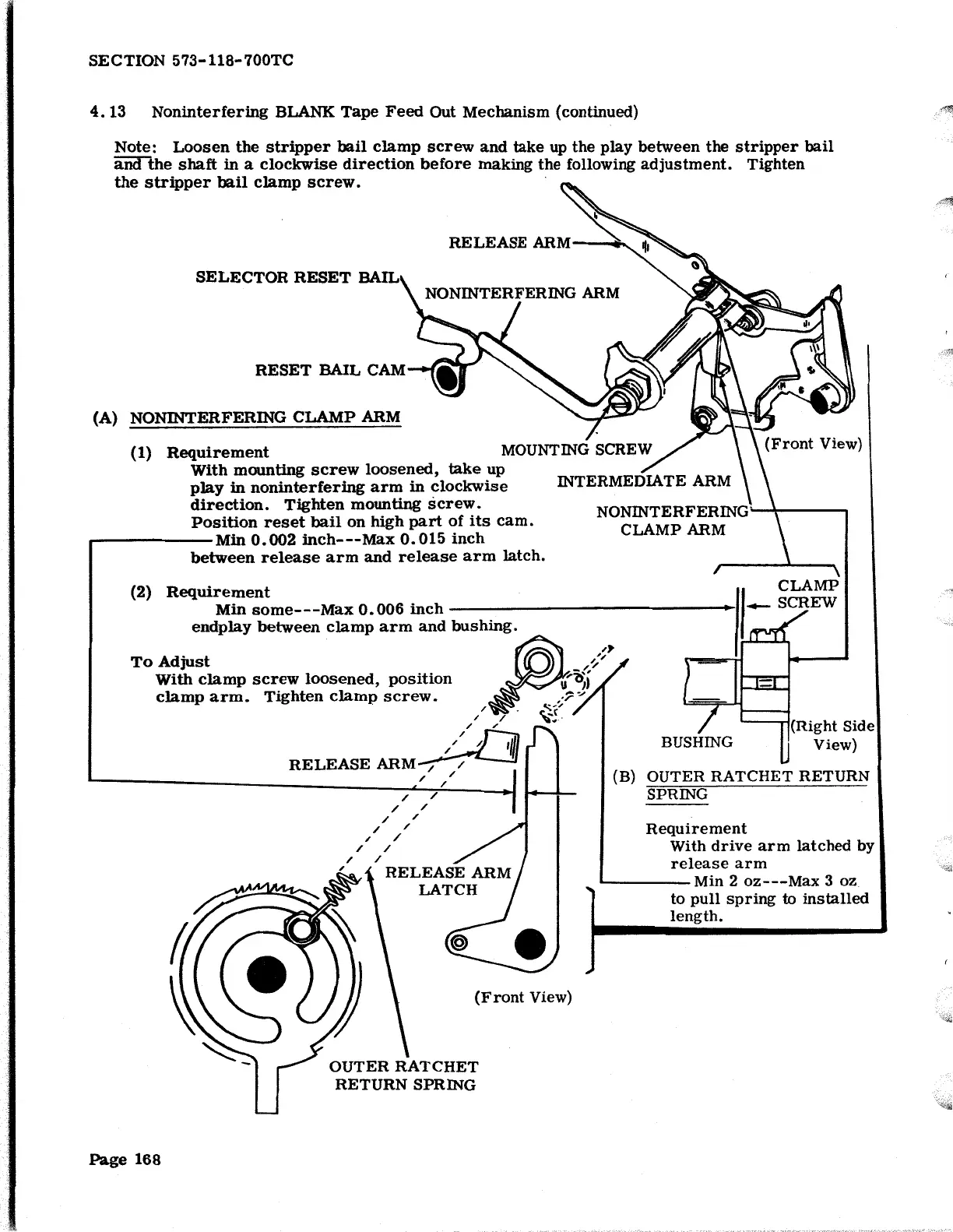

4.13 Noninterfering BLANK Tape Feed Out Mechanism (continued)
Note: Loosen the stripper bail clamp screw and take up the play between the stripper bail
and the shaft in a clockwise direction before making the following adjustment. Tighten
the stripper bail clamp screw.
RELEASE ARM ~ ...
SELECTOR RESET BAIL
(A) NONINTERFERING CLAMP ARM
(1) Requirement
With mounting screw loosened, take up
play in noninterfering arm in clockwise
direction. Tighten mounting screw.
Position reset bail on high part of its cam.
------Min 0. 002 inch---Max 0. 015 inch
between release arm and release arm latch.
(2) Requirement
Min some---Max 0.006 inch I
endplay between clamp arm and bushR?;ing. ,~
To Adjust ,;,
With clamp screw loosened, position "''b~
clamp arm. Tighten clamp screw. r"'
/ <:_.;.(
/ / ,..,.·
Page 168
~
/,
~
RELEASE ARM / /
/ /
/
/
/
/
/
/
/
/
(Front View)
(B) OUTER RATCHET RETURN
SPRING
Requirement
With drive arm latched by
release arm
L------Min 2 oz---Max 3 oz
to pull spring to installed
length.
