ISS 8, SECTION 573-118-700TC

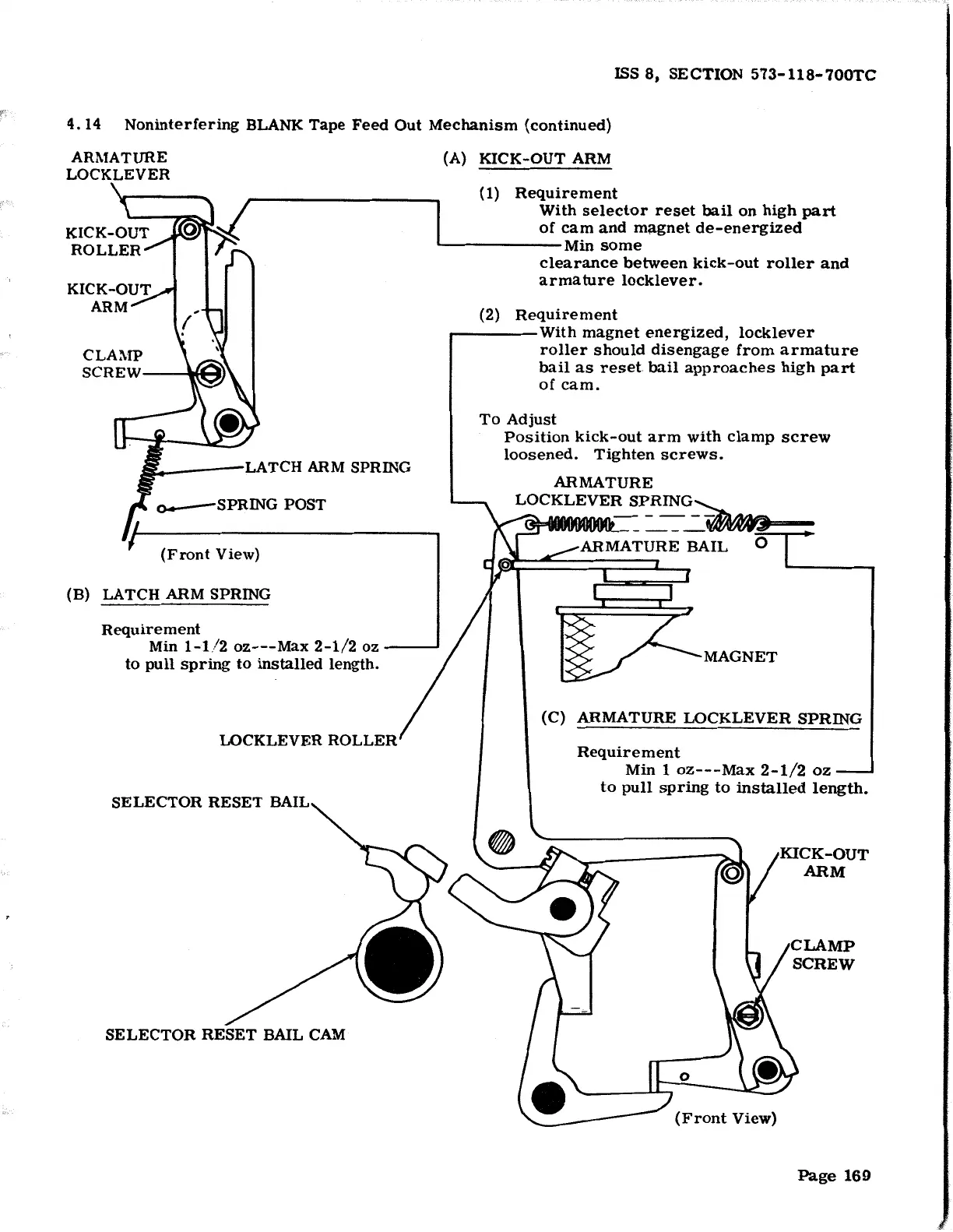

4.14 Noninterfering BLANK Tape Feed Out Mechanism (continued)
ARMATURE
LOCKLEVER
CLA!\IP
SCREW
"Hn
E.. LATCH ARM SPRING
(Front View)
(B) LATCH ARM SPRING
Requirement
(A) KICK-OUT ARM
(1) Requirement
With selector reset bail on high part
of cam and magnet de-energized
'--------Min some
clearance between kick-out roller and
armature locklever.
(2) Requirement
r------With magnet energized, locklever
roller should disengage from armature
bail as reset bail approaches high part
of cam.
To Adjust
Position kick-out arm with clamp screw
loosened. Tighten screws.
Min 1-t/2 oz---Max 2-1/2 oz ---'
MAGNET
to pull spring to installed length.
(C) ARMATURE LOCKLEVER SPRING
LOCKLEVER ROLLER
Requirement
Min 1 oz---Max 2-1/2 oz
SELECTOR RESET BAIL
to pull spring to installed length.
(Front View)
