2. 48 Typing Mechanism (continued)
TOGGLE TRIP ARM
Requirement
As rocker arm approaches extreme right
position, the lifter toggle should break and
lifter arm roller should drop onto right dwell
surface.--------------------------------------------------------~---------------------,
To Adjust
By means of pry points, position toggle trip
post with clamp screw loosened. Tighten clamp
screw.
Page 58

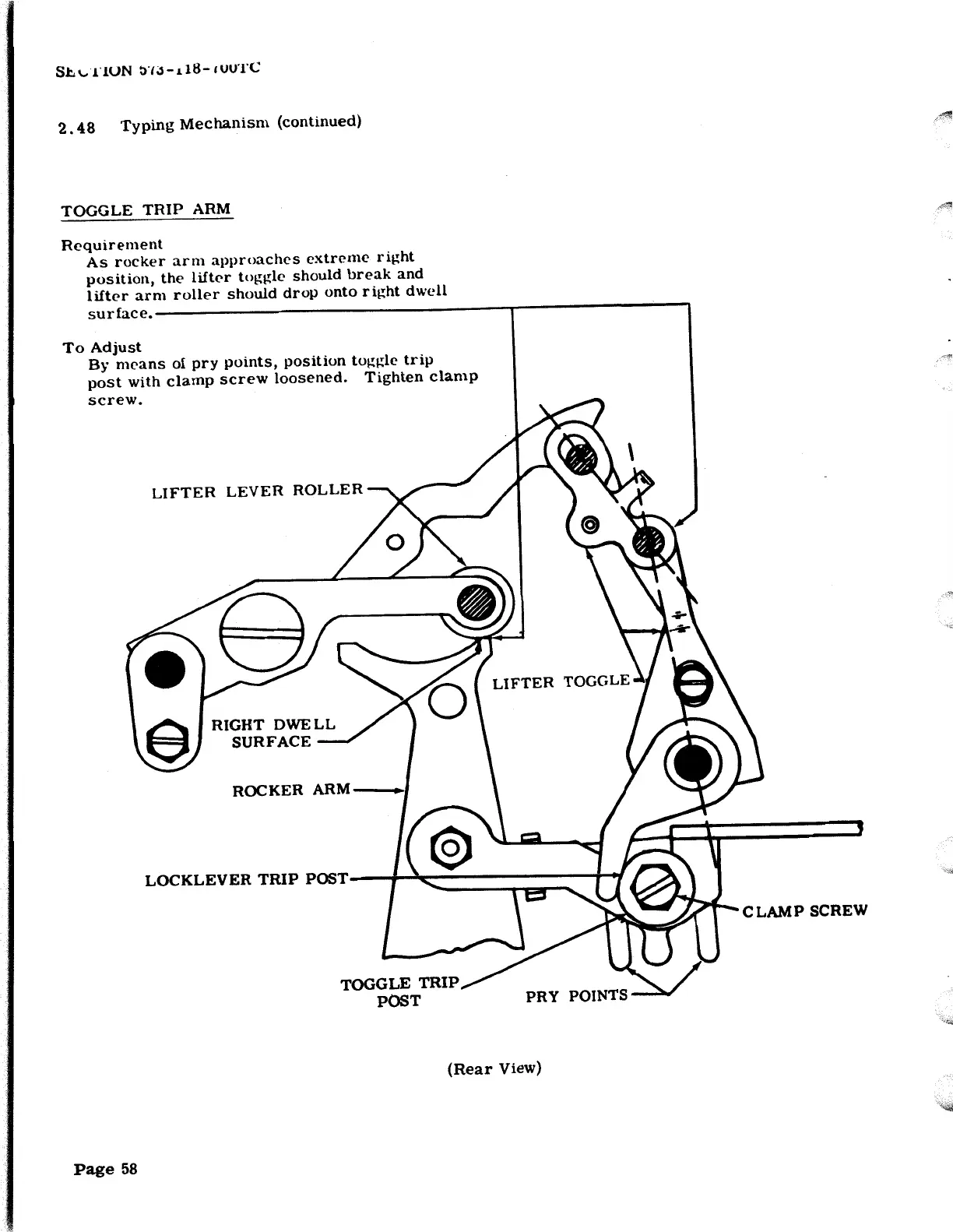

LIFTER LEVER ROLLER
ROCKER ARM I
LOCKLEVER TRIP POST I 'c: i '{
TOGGLE TRIP
POST
(Rear View)
/"""
CLAMP SCREW
