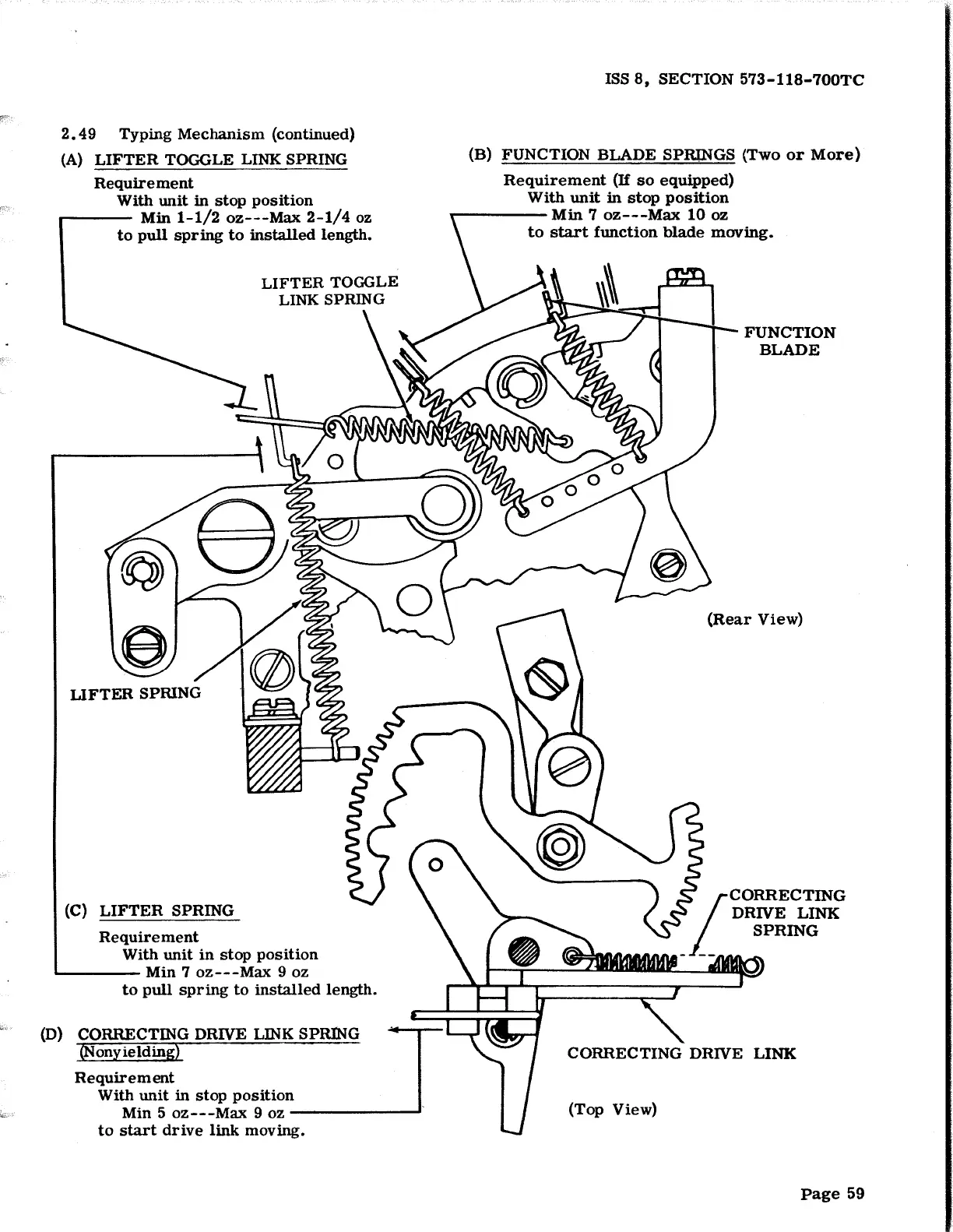

2. 49 Typing Mechanism (continued)
(A) LIFTER TOGGLE LINK SPRING
Requirement
With unit in stop position
r---- Min 1-1/2 oz---Max 2-1/4 oz
to pull spring to installed length.
(C) LIFTER SPRING
Requirement
With unit in stop position
"'---- Min 7 oz---Max 9 oz
to pull spring to installed length.
(D) CORRECTING DRIVE LINK SPRING
(Nonyielding)
Requirement
With unit in stop position
Min 5 oz---Max 9 oz -------'
to start drive link moving.
ISS 8, SECTION 573-118-700TC
(B) FUNCTION BLADE SPR.lNGS {Two or More)
Requirement (If so equipped)
With unit in stop position
..------Min 7 oz---Max 10 oz
to start function blade moving.
FUNCTION
BLADE
(Rear View)
/
CORRECTING
DRIVE LINK
SPRING
I~~- ;M1
CORRECTING DRIVE LINK
(Top View)
Page 59
